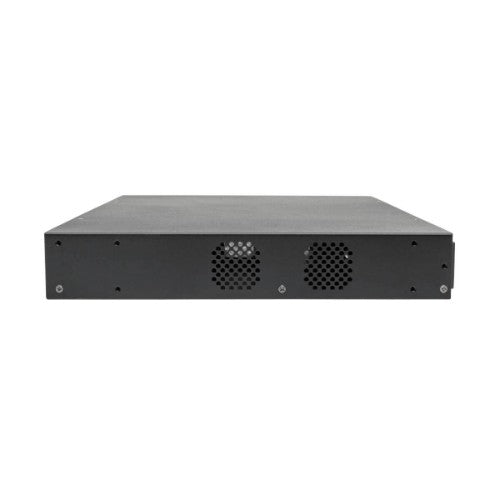

Tripp Lite B064-008-01-IPG KVM switch Rack mounting Black

8-Port Cat5 KVM over IP Switch with Virtual Media - 1 Local & 1 Remote User, 1U Rack-Mount, TAA

Key Features

• Up to 2 users (1 local, 1 remote) can control up to 8 computers/servers simultaneously
• Virtual Media allows access to remote storage, including DVD/CD drives and flash drives
• Dual redundant C14 power inlets keep the unit running in case one power supply fails
• Dedicated LUC port connects directly to a laptop for easy console operation
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Description

Control As Many As 8 Computers or Servers from Anywhere in the World
This NetDirector® Cat5 KVM switch offers BIOS-level access to multiple computers and servers in a complex, demanding IT environment. The B064-008-01-IPG provides complete control of up to eight computers and/or servers directly, including blade servers, from a single monitor, USB keyboard and USB mouse. Dual redundant power supplies confirm the unit will continue running in the event one power supply fails, ensuring 24/7 reliability. A Laptop USB Console (LUC) port allows direct connection of a laptop for easy console operation of the KVM switch.

All-in-One Network Management for Critical Systems
The B064-008-01-IPG offers a comprehensive, cost-effective network management solution that installs in 1U of space in an EIA-standard 19-inch rack using the included hardware. No server-resident software is required, so server performance and reliability are never compromised. Flash-upgradable firmware over an Ethernet network fine-tunes compatibility with emerging standards.

Supports All Major Operating Systems and Most Web Browsers
The B064-008-01-IPG supports all major server platforms and VT100-based serial devices. Because compatibility is based on common hardware standards, rather than system software dependencies, almost any platform can be accommodated. Supported web browsers for users who log in remotely include Internet Explorer, Firefox, Mozilla, Safari, Opera and Netscape Navigator.

Simple Network Control That Gives You More Flexibility
This Cat5 KVM switch is designed to ease multi-server management in data centers, server rooms and other high-density environments. Built-in IP capability allows up to two users—one local and one remote—to access the network independently and simultaneously. An optional dial-in connection (modem port) is provided to ensure access in situations when the KVM switch is not available over the primary network. You may also select a connected computer using on-console pushbuttons, GUI (graphical user interface), OSD (on-screen display) or keyboard hotkey commands. An LED per KVM port indicates when a computer is connected to the port, when it is powered on and when it is selected.

High-Resolution On-Screen Display Offers Multi-Language Support
The advanced OSD with high-resolution video up to 1920 x 1200 (at 60 Hz) with 24-bit color depth provides a GUI with management tools, including custom port labeling, auto-scanning and panel array mode. The OSD may be set to display in English, German, Russian, Japanese, traditional Chinese and simplified Chinese.

Allows Connection of Either PS/2 or USB Keyboard and Mouse
PS/2 and USB console ports are included. Only one keyboard/mouse combination may be connected at a time.

Supports Both IPv4 and IPv6 Addresses
The B064-008-01-IPG supports IPv4, Link Local IPv6 Address and IPv6 Stateless Autoconfiguration protocols. You may set the IP address manually or have it automatically assigned via DHCP server (the default method).

Heightened Security of Every Connection
The B064-008-01-IPG offers three levels of password protection (super administrator, administrator and user) to prevent unauthorized persons from gaining access to connected servers/computers. Remote authentication support is provided via RADIUS, LDAP, LDAPS and Active Directory. The B064-008-01-IPG also incorporates advanced encryption technologies: 1024-bit RSA, 56-bit DES, 256-bit AES and 128-bit SSL. It also supports high-grade FIPS 140-2 level 1 security standards.

Network-Wide Storage Media Access
Virtual Media capability allows any computer connected to the KVM via a B055-001-USB-V2, B055-001-UDP, B055-001-UDV or B055-001-UHD server interface unit to access DVD/CD drives, flash drives and other storage media from a remote computer, as if it were directly connected. This allows administrators to perform file transfers, install software and perform diagnostics across a network. Three USB 2.0 ports are provided on the front panel for use with Virtual Media or USB peripheral devices.

Energy-Efficient Operation Prolongs the KVM’s Lifespan
Temperature sensors automatically increase or decrease the speed of the unit's fans as necessary to ensure efficient cooling. This decreases the amount of energy consumed, while prolonging the life of the fans and KVM switch.

Free Management Software Included
Free NetDirector-AXS management software is available for accessing and controlling the B064-008-01-IPG. From a single interface, you can remotely access server ports and manage KVM settings. You can install this software from the included CD or download it at tripplite.eaton.com/support.

TAA-Compliant for GSA Schedule Purchases
The B064-008-01-IPG is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Specifications

Ports & interfaces
Console ports	PS/2, USB A, VGA (D-Sub)
USB connector type	Mini-USB B, USB Type-A
Number of computers controlled	8
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
Audio connections	Yes
VGA (D-Sub) ports quantity	8
Ethernet LAN (RJ-45) ports	19
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	19
Performance
Auto scan delay (min)	1 s
Auto scan delay (max)	255 s
HD type	Full HD+
Video bandwidth	60 Hz
Plug and Play	Yes
Maximum resolution	1920 x 1200 pixels
Scan interval	1,3,4,5,8,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99,100,240,250,255 s
Number of users	2 user(s)
Maximum operating distance	1968.5" (50 m)
Automatic switching	Yes
Technical details
Product colour	Black
Rack mounting	Yes
Plug and Play	Yes
Scan interval	1,3,4,5,8,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99,100,240,250,255 s
Push button	Yes
On Screen Display (OSD)	Yes
Number of users	2 user(s)
Maximum operating distance	1968.5" (50 m)
LED indicators	Yes
Automatic switching	Yes
Compliance certificates	RoHS
Design
Wired remote switch	Yes
Product colour	Black
Rack mounting	Yes
Push button	Yes
LED indicators	Yes
Certification	FCC, REACH
Housing material	Metal
Automatic switching	Yes
Country of origin	Taiwan
Display
Built-in display	No
On Screen Display (OSD)	Yes
Power
Input current	1 A
Power source	AC
AC input frequency	50 - 60 Hz
Input voltage	100 - 240 V
Video
HD type	Full HD+
Video bandwidth	60 Hz
Maximum resolution	1920 x 1200 pixels
Features
Country of origin	Taiwan
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	17.5" (443.5 mm)
Depth	10.4" (264.7 mm)
Height	1.72" (43.7 mm)
Weight	7.76 lbs (3.52 kg)
Package width	21.1" (534.9 mm)
Package depth	5.51" (140 mm)
Package height	13.2" (335 mm)
Package weight	11.2 lbs (5.1 kg)
Packaging data
Package width	21.1" (534.9 mm)
Package depth	5.51" (140 mm)
Package height	13.2" (335 mm)
Package weight	11.2 lbs (5.1 kg)
Certificates
Certification	FCC, REACH
Other features
Push button	Yes
Maximum operating distance	1968.5" (50 m)
Automatic switching	Yes
Logistics data
Country of origin	Taiwan
Master (outer) case width	21.1" (534.9 mm)
Master (outer) case length	5.51" (140 mm)
Master (outer) case height	13.2" (335 mm)
Master (outer) case gross weight	11.2 lbs (5.1 kg)
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	8471.80.1000
