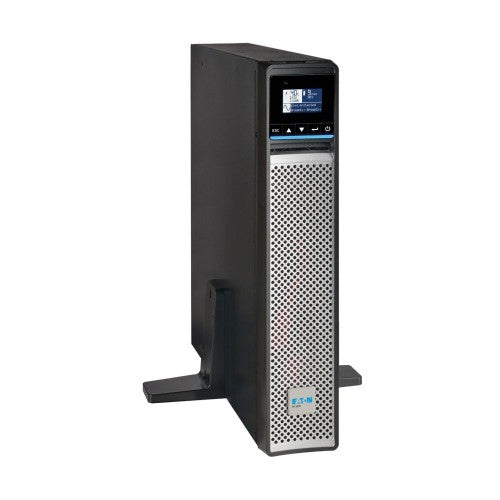

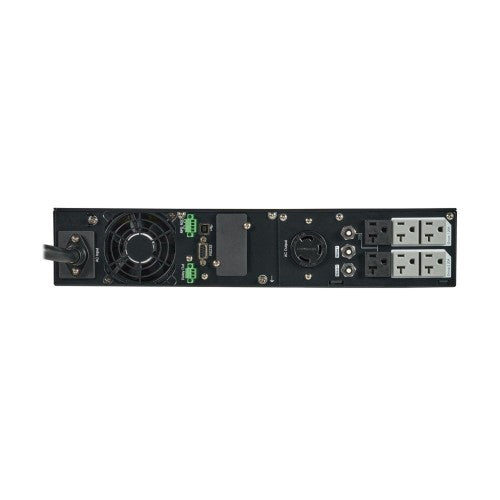

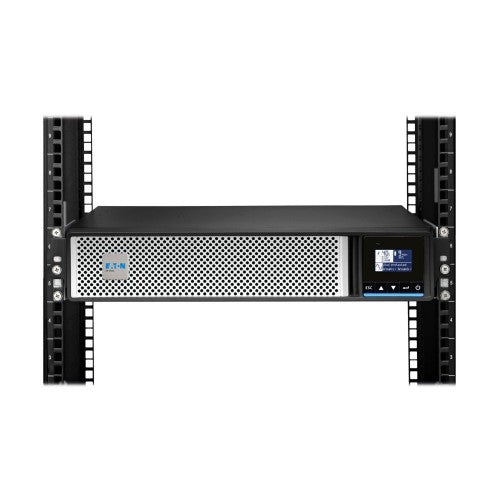

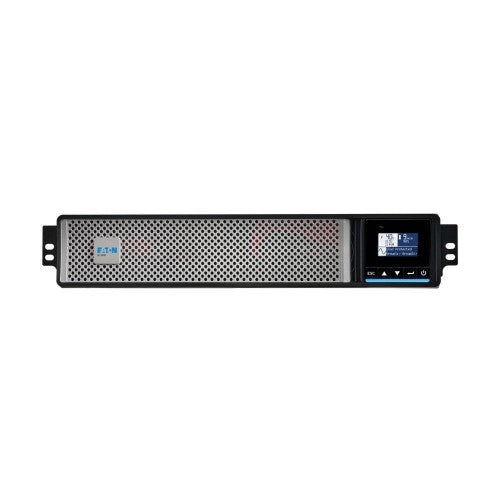

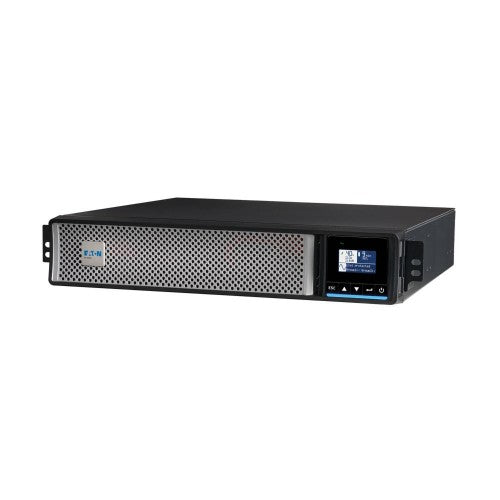

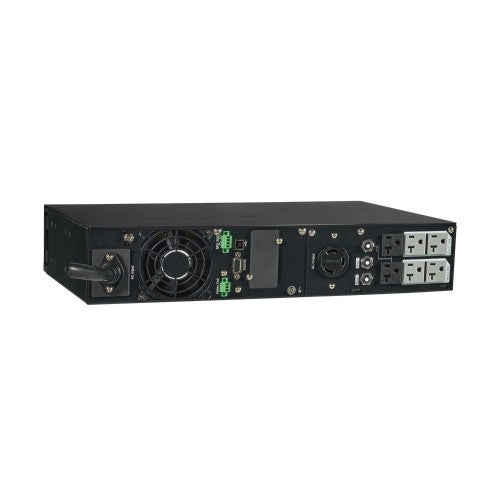

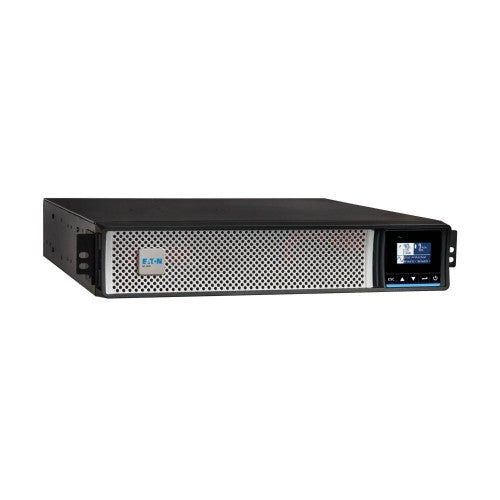

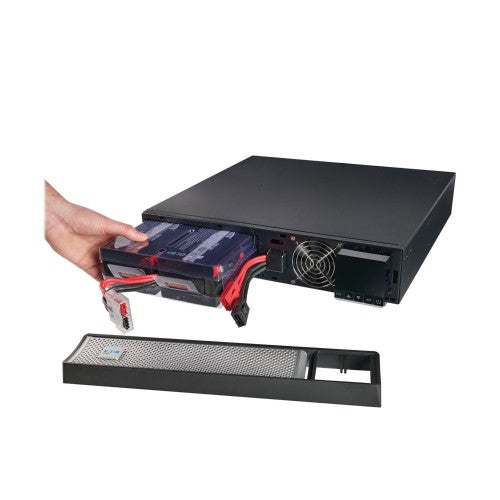

Eaton 5P3000RTG2 uninterruptible power supply (UPS) Line-Interactive 3 kVA 3000 W 6 AC outlet(s)

5P G2 3000VA 3000W 120V Line-Interactive UPS - 1x L5-30R and 6x 5-15/20R Outlets, Cybersecure Network Card Option, 2U Rack/Tower

Key Features

• Unity power factor (1.0) delivers full rated power to support modern IT loads
• Pure sine wave output ensures compatibility and stability for sensitive equipment
• Exclusive ABM technology increases battery life by 50%
• Rack-friendly design is shorter in depth and 25% lighter than earlier 5P model
• Optional NETWORK-M3 Gigabit network card enables full remote access and control

Description

3kVA/3kW/120V Battery Backup for Edge Computing This 5P G2 line-interactive UPS system provides reliable battery backup and AC power protection for servers, switches and other mission-critical IT equipment in edge computing environments, server rooms and network closets. The 5P3000RTG2 protects more connected devices by providing 20 percent more wattage compared to traditional UPS systems. Pure sine wave output provides stable, high?quality power, while unity power factor (1.0) ensures maximum usable watts at each power rating. Reliable Battery Backup with Enhanced Management Exclusive ABM technology increases battery life by 50 percent by optimizing the charging process. It also closely monitors battery health to provide advanced notice when batteries need replacing. Optional Gigabit Network Interface Offers 24/7 Remote Access The NETWORK-M3 cybersecure network management card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M3 without dropping the load, so you don’t have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect businesses from these risks. NEMA Outlets Protect Your Connected Components One L5-30R and six 5-15/20R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Four 5-15/20R outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads. Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The 5P3000RTG2 can correct brownouts as low as 89V and overvoltages as high as 151V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure. LCD Interface Keeps You Informed at a Glance The five-button graphical LCD provides useful information about the UPS itself, load status, events, measurements and settings. To save energy, the LCD switches to the screen saver after five minutes of inactivity. The multi-color LED status bar stays illuminated so you can always check power status at a glance. Advanced Communications Ports Allow for Automatic Saves and Shutdowns RS-232 and USB ports connect to a serial-enabled or USB-enabled device for a variety of communication options (cables are included). The RPO/ROO connector permits emergency shutdown or remote restart of all connected equipment. Easy Installation Options You can mount the 5P3000RTG2 in just 2U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also install the UPS in a tower format with the included support stands. The 10-foot (3-meter) power cord with NEMA L5-30P plug connects to a compatible AC outlet.

Specifications

Power
Output power factor	1
Output power	3000 W
Input operation voltage (min)	89 V
Input operation voltage (max)	151 V
Maximum current	24 A
Output power capacity	3 kVA
Input frequency	50/60 Hz
Performance
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine/Pure sine
Automatic Voltage Regulation (AVR)	Yes
Number of input phases	1
Response time	10 ms
LED indicators	Alarm
Audible alarm(s)	Yes
Features
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine/Pure sine
Automatic Voltage Regulation (AVR)	Yes
Number of input phases	1
Output power factor	1
Response time	10 ms
Output power	3000 W
Input operation voltage (min)	89 V
Input operation voltage (max)	151 V
Maximum current	24 A
Audible alarm(s)	Yes
Output power capacity	3 kVA
Input frequency	50/60 Hz
Ports & interfaces
Serial interface type	RS-232
AC outlets quantity	6 AC outlet(s)
AC outlet types	NEMA L5-20R, NEMA 5-15R, NEMA 5-20R
Power plug	NEMA L5-30P
RS-232 ports	1
Network card slot	Yes
Battery
Battery voltage	72 V
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	9 h
Typical backup time at half load	12.5 min
Typical backup time at full load	3 min
Cold start	Yes
Design
Rack capacity	2U
Form factor	Rackmount/Tower
LED indicators	Alarm
Product colour	Black
Certification	CAN/CSA C22.2 ICES IEC/EN 62040-1 UL 1778
Built-in fan	Yes
Housing material	Steel
Control type	Buttons
Display type	LCD
Network card slot	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	20 - 90%
Technical details
Compliance certificates	RoHS, Federal Communications Commission (FCC)
Network management	Yes
Certificates
Certification	CAN/CSA C22.2 ICES IEC/EN 62040-1 UL 1778
Compliance certificates	RoHS, Federal Communications Commission (FCC)
Packaging content
Rack mount kit	Yes
Cables included	USB cable, RS-232
Cooling
Built-in fan	Yes
Weight & dimensions
Weight	74.5 lbs (33.8 kg)
Width	17.2" (438 mm)
Height	3.37" (85.5 mm)
Depth	23.7" (603 mm)
Packaging data
Rack mount kit	Yes
Cables included	USB cable, RS-232
