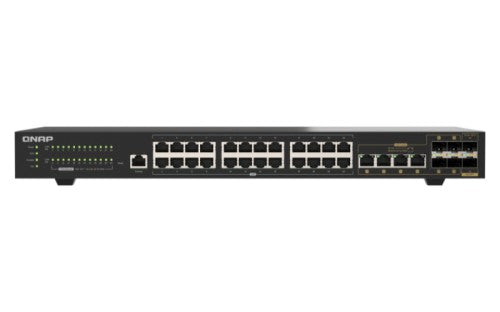

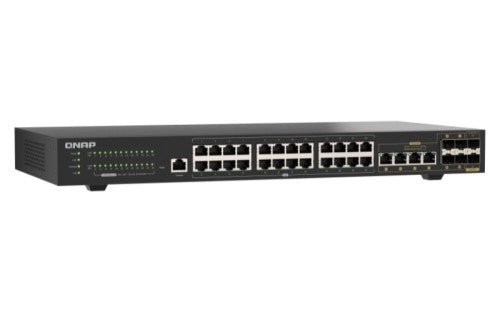

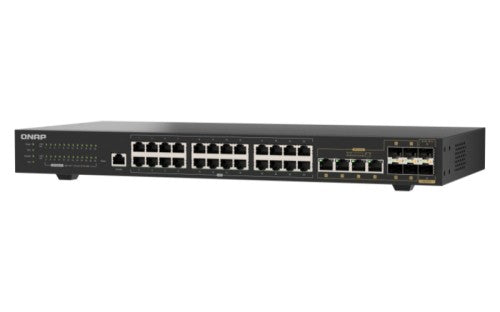

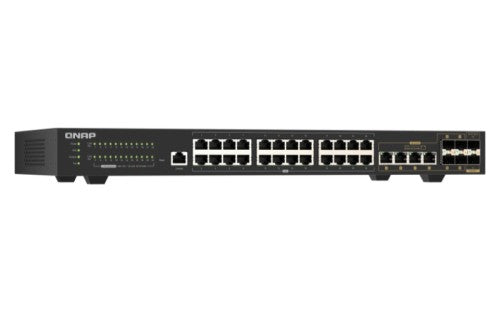

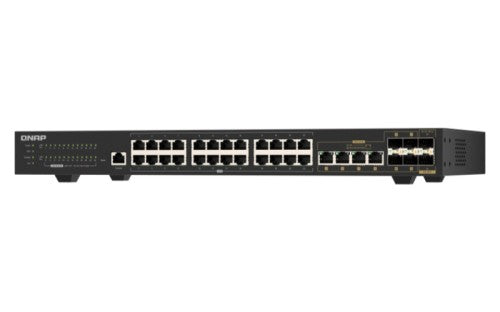

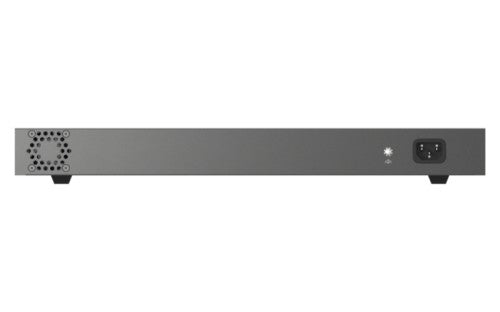

QNAP QSW-M2130-4C2S24T-US network switch Managed L2 2.5G Ethernet (100/1000/2500) 1U Black

L2, 32K MAC, 24x 2.5GbE (RJ45), 2x 10GbE SFP+, 4x 10GbE SFP+/RJ45, 44 x 440 x 205 mm, US

Key Features

• User-friendly management interface: Offers a user-friendly web interface to help IT administrators efficiently control Layer 2 and PoE networks. Additionally, the overview dashboard and graphical statistics analysis show IT administrators all switch information and powered devices at a glance, making central management of high-power devices intuitive and easy.
• 10GbE connectivity: Two 10GbE SFP+ ports and four 10GbE combo ports can connect to NAS, servers, or backbone uplinks, enabling high bandwidth and redundancy.
• Layer 2 network: Provides comprehensive Layer 2 management features (such as VLAN, LACP, ACL and LLDP) for IT administrators to efficiently control network bandwidth and enhance security via the user-friendly switch management web interface.
• Access and Aggregation in One: Suitable for both edge access and aggregation layers, it consolidates traffic from multiple 2.5GbE devices and uplinks via 10GbE to the core network, simplifying deployment in SMB environments.
• SFP+/RJ45 ports: Compatible with 10GBASE-T and 5GBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M), the QSW-M2130-4C2S24T offers higher transmission speeds when used with existing cables.
• Online OS update: QSS (QNAP Switch System) helps administrators update firmware with just one click, ensuring network security.

Description

QSW-M2130-4C2S24T
L2 Managed Switch with 10GbE and 2.5GbE ports, ideal for enterprise network deployment

QSW-M2130-4C2S24T is a next-generation L2 managed switch featuring 24 x 2.5GbE Base-T ports, 2 x 10GbE SFP+ ports, and 4 x 10GbE Combo ports for flexible high-speed connectivity. Designed to meet the high-bandwidth demands of NAS and servers, its multi-Gigabit port design makes it ideal for deployment as both an access and aggregation switch. With support for VLAN, QoS, LACP, and ACL, along with the intuitive QSS management interface, it helps businesses build a scalable, efficient, and easy-to-manage network infrastructure. The QSW-M2130-4C2S24T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Switch layer	L2
Ports & interfaces
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Installed SFP modules quantity	0
Combo SFP ports quantity	4
Console port	RJ-45
Power connector	AC-in jack
Network
Networking standards	IEEE 802.3bz, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ad, IEEE 802.1p, IEEE 802.3az
10G support	Yes
Data transmission
Jumbo frames	12000
MAC address table	32000 entries
Switching capacity	240 Gbit/s
Jumbo frames support	Yes
Throughput	120 Gbit/s
Design
DIN rail mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Rack mounting	Yes
Number of fans	1 fan(s)
Performance
Noise level	28 dB
Power
Power consumption (max)	70 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC
Power connector	AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	17.3" (440 mm)
Depth	8.07" (205 mm)
Height	1.73" (44 mm)
Weight	6.75 lbs (3.06 kg)
Packaging data
Package width	20.6" (523 mm)
Package depth	12.9" (328 mm)
Package height	3.66" (93 mm)
Package weight	8.64 lbs (3.92 kg)
Technical details
Form factor	1U
Product colour	Black
Noise level	28 dB
Rack mounting	Yes
Indication
LED indicators	Yes
