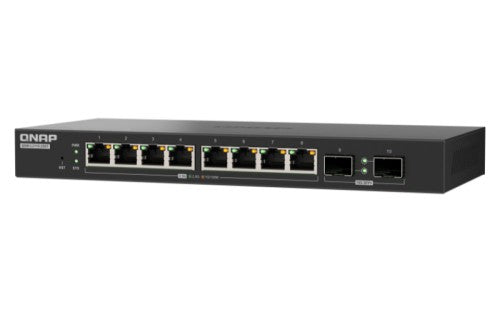

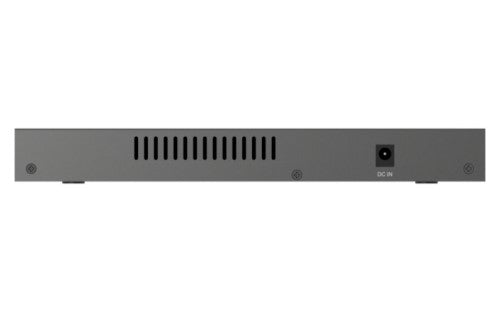

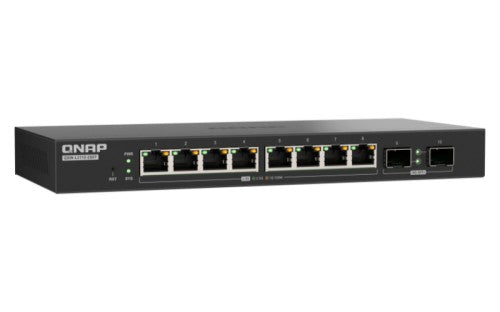

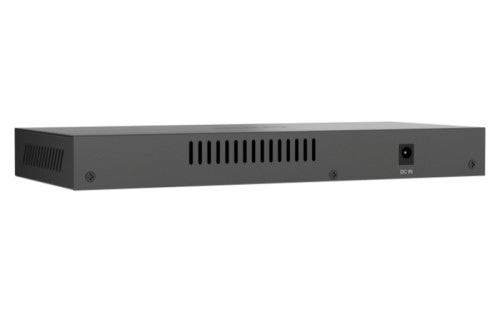

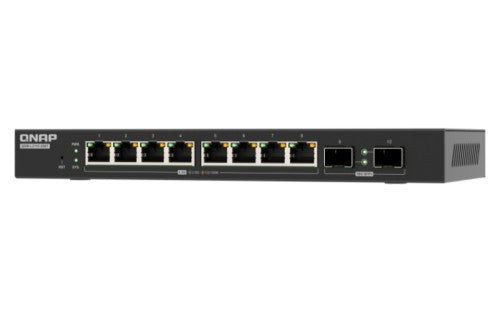

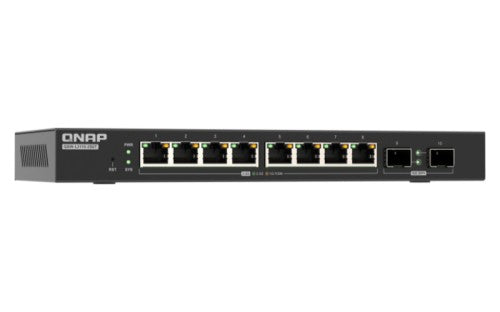

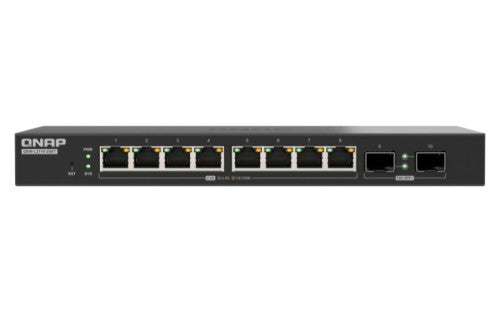

QNAP QSW-L2110-2S8T-US network switch Managed Desktop Black

2x 10GbE SFP+, 8x 2.5GbE (RJ45), 16K MAC, 27 x 240 x 105 mm, , US

Key Features

• 10GbE High-Speed Network: Flexibly connect to NAS, servers, or uplinks using built-in 10GbE SFP+ ports for a high-speed, redundant network architecture.
• Office-Friendly Design: The compact, fanless design ensures quiet and space-saving deployment in offices or workspaces without disrupting daily tasks.
• Energy-Efficient Operation: IEEE 802.3az (EEE) support automatically adjusts power usage based on network traffic, balancing performance with eco-friendliness.
• Easy Web Management: An intuitive Web GUI simplifies daily configuration and network monitoring without adding to your maintenance workload.
• Critical Traffic Control: QoS/CoS/DSCP prioritizes smooth VoIP and video streaming, while VLAN allows for efficient departmental network segmentation.
• Online Firmware Updates: QSS (QNAP Switch System) supports online firmware checks and Qfinder Pro, enabling one-click updates.

Description

QSW-L2110-2S8T
Upgrade to 10GbE on a Budget: Highly Cost-Effective Lite Managed Switch

The QSW-L2110-2S8T is a Lite Managed switch featuring eight 2.5GbE Base-T ports and two 10GbE SFP+ uplink ports. It effectively eliminates bandwidth bottlenecks for Wi-Fi 6/6E/7 APs, NAS, and workstations. Offering VLAN, QoS, and basic traffic management, it provides an affordable and easy-to-maintain 10G backbone upgrade for homes and SMBs. Designed and manufactured in Taiwan, the QSW-L2110-2S8T delivers reliable, secure, and stable networking quality, making it an ideal choice for businesses.

Specifications

Management features
Reset button	Yes
Switch type	Managed
Ports & interfaces
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	8
Console port	RJ-45
2.5G Ethernet (copper) ports quantity	8
Network
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1Q, IEEE 802.3ad, IEEE 802.1p, IEEE 802.3az
10G support	Yes
Data transmission
Jumbo frames	12000
MAC address table	16000 entries
Switching capacity	80 Gbit/s
Jumbo frames support	Yes
Throughput	40 Gbit/s
Design
Reset button	Yes
Form factor	Desktop
Product colour	Black
LED indicators	Yes
Rack mounting	No
Power
Input voltage	12 V
Input current	1 A
DC input voltage	12 V
Power source	DC
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95%
Weight & dimensions
Width	9.45" (240 mm)
Depth	4.13" (105 mm)
Height	1.06" (27 mm)
Weight	22.2 oz (630 g)
Packaging content
Quick start guide	Yes
Packaging data
Package width	6.22" (158 mm)
Package depth	14.6" (372 mm)
Package height	1.77" (45 mm)
Package weight	31.4 oz (890 g)
Quick start guide	Yes
Technical details
Form factor	Desktop
Product colour	Black
Rack mounting	No
Indication
LED indicators	Yes
Other features
Input voltage	12 V
