QNAP QSW-1108-8T-R2-US network switch Unmanaged 2.5G Ethernet (100/1000/2500) Desktop Black

Unmanaged, 8x 2.5GbE (RJ45), 40Gbps, 4K MAC, 26x160x110 mm, 500 g, , US

Key Features

• 2.5G Multi-Gig Connectivity: 8x 2.5GbE RJ45 ports (supports 2.5G/1G/100M), with a total switching capacity of 40Gbps
• Plug and Play: Auto-negotiates optimal speeds based on connected devices—no need to overhaul your network
• Compact Desktop Design: Energy-efficient with EEE support and Class B EMI certification; ideal for indoor environments
• Ultra-Quiet: Fanless design with advanced heat dissipation keeps noise to a minimum—ideal for workspaces
• Network Stability: Loop detection and blocking automatically prevents network disruptions caused by looped connections
• Jumbo Frame Support: Supports 12K Jumbo Frames for more efficient large file transfers and reduced packet loss

Description

Affordable and compact, the QSW-1108-8T-R2 is your ideal entry-level 8-port 2.5GbE switch. As part of the QSW 1000 Series, this unmanaged switch offers high-speed and stable performance at an economical price. Optimized for Wi-Fi 6/6E, it’s perfect for home and office environments seeking to enhance workflows, multimedia streaming, and file transfers. Designed and manufactured in Taiwan, the QSW-1108-8T-R2 delivers reliable and secure networking quality.

High-Value 2.5GbE Switch in a Compact Case
Compared to upgrading directly to 10GbE, 2.5GbE is a more cost-effective and practical upgrade. QSW-1108-8T-R2 is an easy-to-own, entry-level 2.5GbE switch featuring BASE-T ports that work with existing cabling. With a compact desktop footprint and optimal number of ports, it makes upgrading to 2.5GbE easier than ever.

2.5GbE Performance – 2.5x Faster than Gigabit
The QSW-1108-8T-R2 features eight 2.5GBASE-T Ethernet ports and supports NBASE-T™ and Multi-Gigabit standards for 2.5G/1G/100M speeds, with a total switching capacity of 40Gbps. Connect devices like desktops, laptops, NAS, Wi-Fi 6/6E access points, set-top boxes, and game consoles for ultra-smooth backups, virtualization, media editing, and immersive entertainment.

Slim Body, Big Advantage

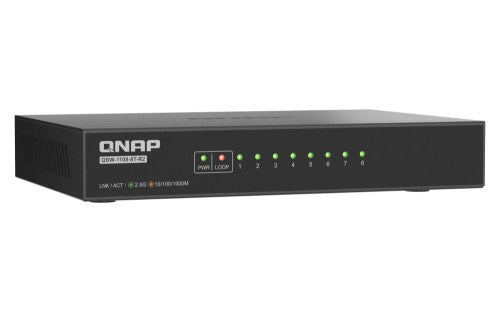

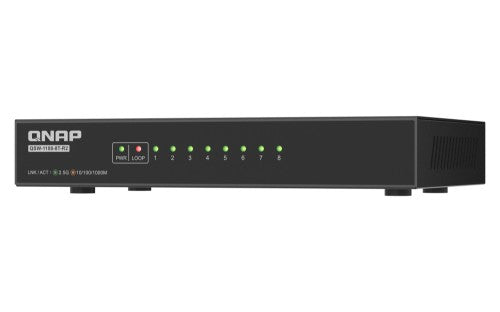

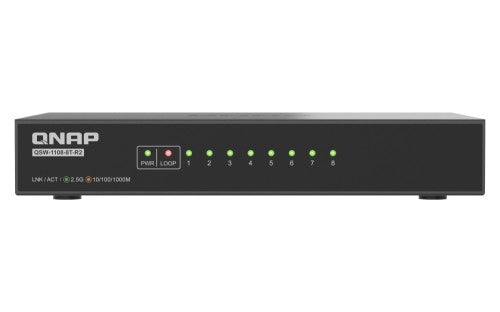

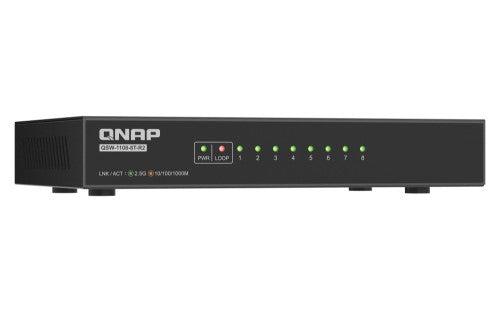

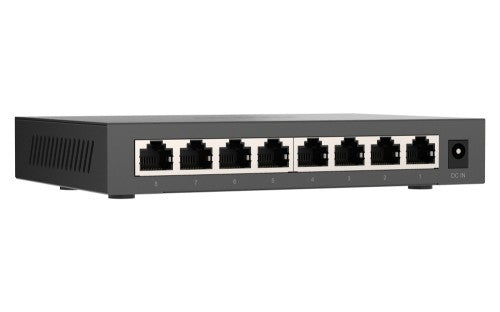

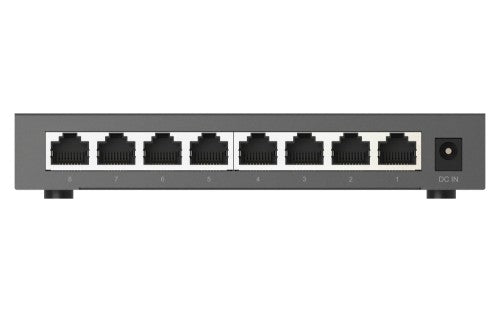

The QSW-1108-8T-R2 is 30% smaller than previous models and more compact than other multi-gigabit switches. With a clean LED display on the front and concentrated cabling on the back, it fits neatly in homes or small offices for efficient multi-device connectivity.

Auto-negotiation and Flow Control for optimized network performance
✔ Auto negotiation automatically detects optimal transmission speeds (2.5G/1G/100Mb) based on connected devices, eliminating the need to replace old equipment.
✔ A 4K MAC Address Table and Jumbo Frame 12KB improves network transmission efficiency.
✔ IEEE 802.3x Flow Control prevents packet loss during congestion.

Loop Detection & Prevention
The QSW-1108-8T-R2 features network loop detection. If a network loop is detected, the QSW-1108-8T-R2 automatically locks the looped ports to ensure the network environment quickly resumes normal operation. Network loops may also occur within a region, and the system can detect and handle such situations as well.

Silent Fanless Operation

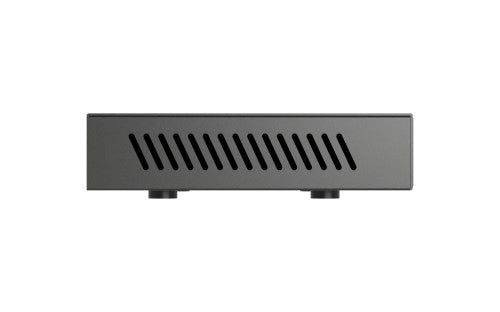

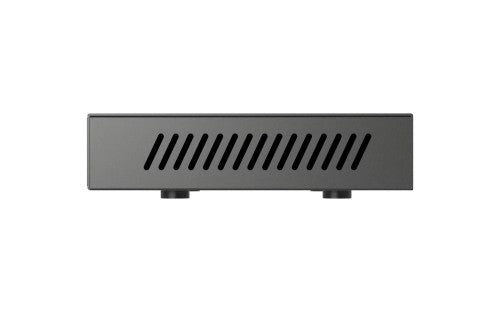

The QSW-1108-8T-R2 features a fanless design with internal heat sinks, metal heat dissipation plates, and vent holes to keep performance high and noise low—ideal for quiet work or living spaces.

Fully embrace high-speed networking with QNAP!
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.

QNAP high-speed switch solutions for Home and SOHO network environments
QNAP provides multiple unmanaged switches with 1GbE, 2.5GbE, 10GbE via RJ45 or fiber ports to deploy hybrid high-speed network infrastructure. Simply plug and play to achieve faster networking for storage and multimedia applications in homes and offices.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Power connector	DC-in jack
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G support	No
Data transmission
Jumbo frames	12000
MAC address table	4000 entries
Switching capacity	40 Gbit/s
Jumbo frames support	Yes
Throughput	20 Gbit/s
Design
Form factor	Desktop
Product colour	Black
LED indicators	Yes
Rack mounting	No
Country of origin	Taiwan
Certification	CE, UKCA, FCC, IC, VCCI, RCM, BSMI, LVD, KC
Performance
Fanless	Yes
Power
Power consumption (max)	12 W
Power supply included	Yes
Input current	1 A
DC input voltage	12 V
Power source	DC
Power connector	DC-in jack
Other features
Warranty period	2 year(s)
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	9.45" (240 mm)
Depth	4.15" (105.4 mm)
Height	1.06" (27 mm)
Weight	17.6 oz (500 g)
Packaging data
Package type	Box
Package width	9.65" (245 mm)
Package depth	5.04" (128 mm)
Package height	1.85" (47 mm)
Package weight	31.7 oz (900 g)
Technical details
Form factor	Desktop
Product colour	Black
Rack mounting	No
Warranty period	2 year(s)
Certificates
Certification	CE, UKCA, FCC, IC, VCCI, RCM, BSMI, LVD, KC
Indication
LED indicators	Yes
Logistics data
Country of origin	Taiwan
Products per master (outer) case	15 pc(s)
