Synology

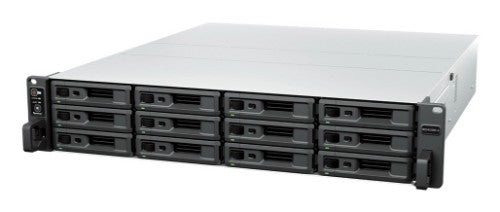

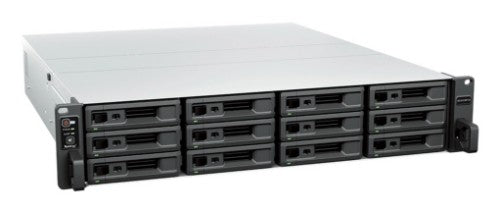

Synology RackStation RS2423RP+II NAS Rack (2U) AMD Ryzen V1780B 8 GB DDR4 0 TB DiskStation Manager Black
SKU:
RS2423RP+II
$3,638.32 USD
Pickup currently not available
✔
Factory-Sealed
Sourced from authorized distributors
✔
Manufacturer Warranty
Terms set by the brand
✔
Enterprise Expertise
Business Procurement
Free standard shipping over $2,500
Delivery estimates are based on product availability, destination, fulfillment method, and qualifying order requirements. 30-day returns; 20% restocking fee on non-defective returns. Shipping policy · Return policy
Loading documents...
Need Help Before You Order?
Check compatibility, availability, or volume pricing with an IT procurement specialist.
Enterprise IT Procurement Built for Business
Source servers, networking, storage, workstations, and business technology through established distribution channels with dedicated procurement support.
1,700+
Business Accounts Supported
32,000+
Enterprise Hardware Products Available
Fast, Reliable Procurement Support
Reach out for responsive product availability, part numbers, pricing, and additional hardware needs.
4–8 Hrs
Typical RFQ Response Target
Multi-Vendor
Hardware Sourcing
Keep Your IT Projects Moving
For business hardware purchases and larger deployments, get shipment information, order coordination, and delivery support.
Manufacturer Warranty Coverage
Eligible products include warranty coverage provided by the original manufacturer according to applicable brand and product terms.
Brand Warranty TermsFactory-Sealed HardwareOEM Support Eligibility
A Trusted Source for Enterprise Hardware
Source factory-sealed IT hardware through established technology distribution channels, with support for individual purchases, BOM requests, and larger business requirements.
112+
Technology Brands
32,000+
Hardware Products Available
Key Features
AMD Ryzen V1780B, 64-bit, 3.35/3.6 GHz, 8 GB DDR4 ECC UDIMM, 3.5" SATA HDD, 2.5" SATA SSD, 2 x RJ-45 1GbE, 1X RJ-45 10GbE, 2x USB 3.2 Gen 1, 1 x PCIe Gen3 x8, 2U, 4-post 19", Black, 88 × 482 × 578 mm, 11.9 kg
The RS2423RP+II offers exceptional performance with over 155K/79K random read/write IOPS and up to 3,500/1,700 MB/s sequential read/write throughput.2 They are the perfect cost-effective file management and sharing solution for SMBs and come equipped with advanced backup capabilities designed for businesses with expanding data needs.
Designed for reliability

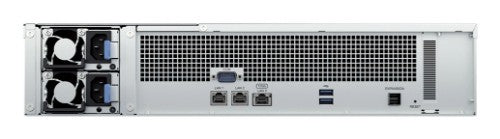

The RS2423RP+II comes with one 10GbE RJ-45 port and two Gigabit RJ-45 ports, which can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Two RS2423RP+II units can be paired using Synology High Availability to form a reliable active-passive server cluster, maximizing service uptime.
The RS2423RP+II also features redundant and hot-swappable power supply units to protect service continuity in case there are issues with one power source.
Room for expansion
Easily adjust the 2U 12-bay RS2423RP+II to match the usage of your environment, whether it needs performance, faster networking, or higher storage capacity.
Storage expansion
Add 12 extra drive bays for a total of 24 drive bays with a RX1223RP expansion unit.
SSD cache
Boost read/write IOPS for HDD arrays with NVMe or SATA SSD cache.
Flexible networking options
Improve I/O or add redundancy with 10/25GbE SFP+/SFP28 or RJ-45 networking.
Versatile storage for businesses
The RS2423RP+II is ideal for small to medium-sized businesses and branch offices seeking a high-performing, reliable, and cost-efficient storage solution for file management, data backup, and surveillance.
Intuitive storage for on-site and remote teams
Provide secure and convenient cross-platform file access, sharing, and synchronization across multiple locations.
Private file cloud
Enable efficient collaboration with Synology Drive
Synology Drive provides remote data access, synchronization, on-demand file restoration, and backup via handy desktop and mobile applications.
Multi-platform support
Access personal and shared data from mobile apps, desktop clients, web browsers, or another Synology system. Any changes you make are automatically synced to other devices as soon as they are connected.
Collaborate in real time
Enable concurrent editing of documents, spreadsheets, and slides with Synology Office, with support for conversion to and from Microsoft Word, Excel, PowerPoint, and OpenDocument files.
Efficient multi-site synchronization
Connect teams with Hybrid Share
Use Hybrid Share to store large sets of data in the cloud, leveraging the large bandwidth of our data centers to stream requested files to local NAS deployed at the branch offices.
Reliable data access on demand
With Hybrid Share-enabled folders, remote teams retain full access to the most up-to-date files while benefiting from a reduced local storage footprint and lower bandwidth usage.
Local caching of most-used data
Frequently-accessed files are kept on the local NAS, allowing users to access them at LAN speeds. Files and folders can also be pinned manually to prevent them from being replaced when the cache is full.
Multi-endpoint data protection
Design an effective backup strategy to maximize data and system availability with a host of native and license-free solutions.
Consolidated backup server
Endpoint, VM, and NAS/SAN protection
Securely back up Windows, Mac, and Linux endpoints, Synology servers, and VMware® and Hyper-V® virtual machines with Active Backup for Business.
Microsoft 365 and Google Workspace
Centralize backups of Microsoft 365 and Google Workspace data to protect cloud data from accidents and simplify compliance with data retention policies. Schedulable backups, flexible file versioning, and block-level deduplication ensure flexibility and savings in terms of storage and bandwidth consumption.
Data protection and recovery
Hyper Backup
Back up files, LUNs, installed applications, and system configurations to destinations including Synology C2 Storage,6public cloud platforms, USB devices, file servers, local folders, and other Synology systems.
Set and forget backup tasks with regular schedules, enhance security with granular user permissions and encryption, keep backup sizes small with built-in deduplication, and restore data flexibly with multi-versioning.
Snapshot Replication
Snapshot Replication enables configurable point-in-time snapshots of shared folders and VM storage with an RPO as low as 5 minutes and recovery within seconds.
Smart and scalable surveillance
Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.
Simple-to-deploy local surveillance
Wide device compatibility
Connect up to 75 IP cameras from a selection of over 8,600 validated models thanks to Synology Surveillance Station’s wide camera compatibility.
Multi-platform convenience
Monitor live streams or watch recordings from web browsers, desktop clients, or the DS cam mobile app.
Secure and private storage
Footage is stored locally for easier compliance with data protection regulations and further protected from unauthorized access with industry-standard AES-256 encryption.
Flexible monitoring of multiple locations
Assisted camera deployment
Automatically locate new cameras within a set IP range, and configure units in batch via spreadsheet import or replicating settings to new cameras.
Centralized management and monitoring
Stay on top of your deployment by previewing triggered events directly on multi-floor or multi-location maps, with online map integration for Google Maps and OpenStreetMap.
Time-saving video analytics
Take advantage of intelligent monitoring features such as motion detection, no-idle zones, foreign object detection, and anomaly detection that cater to common surveillance scenarios.
Works best with Synology drives
Enjoy high sustained performance and reliability with enterprise-grade drives designed for Synology NAS, featuring built-in data protection.
Synology has you covered
The RS2423RP+II is backed by Synology’s 3-year hardware warranty.9 An optional 2-year extended warranty is available in select regions to extend coverage to 5 years.
Description
Faster and more responsiveThe RS2423RP+II offers exceptional performance with over 155K/79K random read/write IOPS and up to 3,500/1,700 MB/s sequential read/write throughput.2 They are the perfect cost-effective file management and sharing solution for SMBs and come equipped with advanced backup capabilities designed for businesses with expanding data needs.
Designed for reliability
The RS2423RP+II comes with one 10GbE RJ-45 port and two Gigabit RJ-45 ports, which can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Two RS2423RP+II units can be paired using Synology High Availability to form a reliable active-passive server cluster, maximizing service uptime.
The RS2423RP+II also features redundant and hot-swappable power supply units to protect service continuity in case there are issues with one power source.
Room for expansion
Easily adjust the 2U 12-bay RS2423RP+II to match the usage of your environment, whether it needs performance, faster networking, or higher storage capacity.
Storage expansion
Add 12 extra drive bays for a total of 24 drive bays with a RX1223RP expansion unit.
SSD cache
Boost read/write IOPS for HDD arrays with NVMe or SATA SSD cache.
Flexible networking options
Improve I/O or add redundancy with 10/25GbE SFP+/SFP28 or RJ-45 networking.
Versatile storage for businesses
The RS2423RP+II is ideal for small to medium-sized businesses and branch offices seeking a high-performing, reliable, and cost-efficient storage solution for file management, data backup, and surveillance.
Intuitive storage for on-site and remote teams
Provide secure and convenient cross-platform file access, sharing, and synchronization across multiple locations.
Private file cloud
Enable efficient collaboration with Synology Drive
Synology Drive provides remote data access, synchronization, on-demand file restoration, and backup via handy desktop and mobile applications.
Multi-platform support
Access personal and shared data from mobile apps, desktop clients, web browsers, or another Synology system. Any changes you make are automatically synced to other devices as soon as they are connected.
Collaborate in real time
Enable concurrent editing of documents, spreadsheets, and slides with Synology Office, with support for conversion to and from Microsoft Word, Excel, PowerPoint, and OpenDocument files.
Efficient multi-site synchronization
Connect teams with Hybrid Share
Use Hybrid Share to store large sets of data in the cloud, leveraging the large bandwidth of our data centers to stream requested files to local NAS deployed at the branch offices.
Reliable data access on demand
With Hybrid Share-enabled folders, remote teams retain full access to the most up-to-date files while benefiting from a reduced local storage footprint and lower bandwidth usage.
Local caching of most-used data
Frequently-accessed files are kept on the local NAS, allowing users to access them at LAN speeds. Files and folders can also be pinned manually to prevent them from being replaced when the cache is full.
Multi-endpoint data protection
Design an effective backup strategy to maximize data and system availability with a host of native and license-free solutions.
Consolidated backup server
Endpoint, VM, and NAS/SAN protection
Securely back up Windows, Mac, and Linux endpoints, Synology servers, and VMware® and Hyper-V® virtual machines with Active Backup for Business.
Microsoft 365 and Google Workspace
Centralize backups of Microsoft 365 and Google Workspace data to protect cloud data from accidents and simplify compliance with data retention policies. Schedulable backups, flexible file versioning, and block-level deduplication ensure flexibility and savings in terms of storage and bandwidth consumption.
Data protection and recovery
Hyper Backup
Back up files, LUNs, installed applications, and system configurations to destinations including Synology C2 Storage,6public cloud platforms, USB devices, file servers, local folders, and other Synology systems.
Set and forget backup tasks with regular schedules, enhance security with granular user permissions and encryption, keep backup sizes small with built-in deduplication, and restore data flexibly with multi-versioning.
Snapshot Replication
Snapshot Replication enables configurable point-in-time snapshots of shared folders and VM storage with an RPO as low as 5 minutes and recovery within seconds.
Smart and scalable surveillance
Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.
Simple-to-deploy local surveillance
Wide device compatibility
Connect up to 75 IP cameras from a selection of over 8,600 validated models thanks to Synology Surveillance Station’s wide camera compatibility.
Multi-platform convenience
Monitor live streams or watch recordings from web browsers, desktop clients, or the DS cam mobile app.
Secure and private storage
Footage is stored locally for easier compliance with data protection regulations and further protected from unauthorized access with industry-standard AES-256 encryption.
Flexible monitoring of multiple locations
Assisted camera deployment
Automatically locate new cameras within a set IP range, and configure units in batch via spreadsheet import or replicating settings to new cameras.
Centralized management and monitoring
Stay on top of your deployment by previewing triggered events directly on multi-floor or multi-location maps, with online map integration for Google Maps and OpenStreetMap.
Time-saving video analytics
Take advantage of intelligent monitoring features such as motion detection, no-idle zones, foreign object detection, and anomaly detection that cater to common surveillance scenarios.
Works best with Synology drives
Enjoy high sustained performance and reliability with enterprise-grade drives designed for Synology NAS, featuring built-in data protection.
Synology has you covered
The RS2423RP+II is backed by Synology’s 3-year hardware warranty.9 An optional 2-year extended warranty is available in select regions to extend coverage to 5 years.
Specifications
| Storage | |
|---|---|
| Total installed storage capacity | 0 TB |
| Storage drives installed | No |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 12 |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive capacity | 0 GB |
| Hot-swap drive bays | Yes |
| RAID support | Yes |
| Supported file systems | BTRFS, ext4, ext3, FAT32, NTFS, HFS+, exFAT |
| RAID levels | JBOD, 0, 1, 5, 6, 10 |
| Storage drive sizes supported | 2.5,3.5" |
| Processor | |
| Processor generation | AMD Ryzen 1000 Series |
| Processor manufacturer | AMD |
| Thermal Design Power (TDP) | 54 W |
| Processor threads | 8 |
| Processor boost frequency | 3.6 GHz |
| Processor frequency | 3.35 GHz |
| Processor family | AMD Ryzen |
| Processor model | V1780B |
| Processor cores | 4 |
| Number of processors installed | 1 |
| L3 cache | 4 MB |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 8 GB |
| Maximum RAM supported | 32 GB |
| Memory slots | 2 |
| Memory form factor | UDIMM |
| ECC | Yes |
| Network | |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Supported network protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Ports & interfaces | |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Expansion ports quantity | 1 |
| Hard drive | |
| RAID support | Yes |
| Supported file systems | BTRFS, ext4, ext3, FAT32, NTFS, HFS+, exFAT |
| RAID levels | JBOD, 0, 1, 5, 6, 10 |
| Design | |
| Fan diameter 2 | 2.36" (6 cm) |
| Cooling type | Active |
| Fan diameter | 2.36" (6 cm) |
| Built-in display | No |
| Product colour | Black |
| Number of fans | 3 fan(s) |
| LED indicators | Power, Status, Alarm |
| Chassis type | Rack (2U) |
| Technical details | |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Built-in display | No |
| Product colour | Black |
| Noise level | 56.2 dB |
| LED indicators | Power, Status, Alarm |
| Chassis type | Rack (2U) |
| Supported protocols | SMB, AFP, NFS, FTP, WebDAV, Rsync |
| Expansion description | Mini-SAS HD |
| Number of fans | 3 fan(s) |
| Doesn't contain | Lead, Mercury, Cadmium |
| Warranty period | 3 year(s) |
| Compliance certificates | Federal Communications Commission (FCC), CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS, UL, RoHS |
| Performance | |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| On/off switch | Yes |
| Security algorithms | SSL/TLS, SSH, HTTPS |
| Reset button | Yes |
| Operating system installed | DiskStation Manager |
| Noise level | 56.2 dB |
| Snapshot | Yes |
| Cooling | |
| Cooling type | Active |
| Fan diameter | 2.36" (6 cm) |
| Number of fans | 3 fan(s) |
| Security | |
| Security algorithms | SSL/TLS, SSH, HTTPS |
| Software | |
| Operating system installed | DiskStation Manager |
| Management features | |
| On/off switch | Yes |
| Reset button | Yes |
| Power | |
| Power consumption (HDD standby) | 42.33 W |
| Power supply unit (PSU) capacity | 550 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 114.86 W |
| Number of phases | 1 |
| Weight & dimensions | |
| Width | 19" (482 mm) |
| Depth | 22.8" (578 mm) |
| Height | 3.46" (88 mm) |
| Weight | 26.2 lbs (11.9 kg) |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | Power |
| Power cables quantity | 2 |
| Features | |
| Product languages | Multi |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Operating altitude | 0 - 196850.4" (0 - 5000 m) |
| Packaging data | |
| Cables included | Power |
| Other features | |
| Size (imperial) | 19" |
| Supported protocols | SMB, AFP, NFS, FTP, WebDAV, Rsync |
| Expansion description | Mini-SAS HD |
| Doesn't contain | Lead, Mercury, Cadmium |
| Warranty period | 3 year(s) |
| Compliance certificates | Federal Communications Commission (FCC), CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS, UL, RoHS |
Product Specs
AMD Ryzen V1780B, 64-bit, 3.35/3.6 GHz, 8 GB DDR4 ECC UDIMM, 3.5" SATA HDD, 2.5" SATA SSD, 2 x RJ-45 1GbE, 1X RJ-45 10GbE, 2x USB 3.2 Gen 1, 1 x PCIe Gen3 x8, 2U, 4-post 19", Black, 88 × 482 × 578 mm, 11.9 kg
The RS2423RP+II offers exceptional performance with over 155K/79K random read/write IOPS and up to 3,500/1,700 MB/s sequential read/write throughput.2 They are the perfect cost-effective file management and sharing solution for SMBs and come equipped with advanced backup capabilities designed for businesses with expanding data needs.
Designed for reliability
The RS2423RP+II comes with one 10GbE RJ-45 port and two Gigabit RJ-45 ports, which can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Two RS2423RP+II units can be paired using Synology High Availability to form a reliable active-passive server cluster, maximizing service uptime.
The RS2423RP+II also features redundant and hot-swappable power supply units to protect service continuity in case there are issues with one power source.
Room for expansion
Easily adjust the 2U 12-bay RS2423RP+II to match the usage of your environment, whether it needs performance, faster networking, or higher storage capacity.
Storage expansion
Add 12 extra drive bays for a total of 24 drive bays with a RX1223RP expansion unit.
SSD cache
Boost read/write IOPS for HDD arrays with NVMe or SATA SSD cache.
Flexible networking options
Improve I/O or add redundancy with 10/25GbE SFP+/SFP28 or RJ-45 networking.
Versatile storage for businesses
The RS2423RP+II is ideal for small to medium-sized businesses and branch offices seeking a high-performing, reliable, and cost-efficient storage solution for file management, data backup, and surveillance.
Intuitive storage for on-site and remote teams
Provide secure and convenient cross-platform file access, sharing, and synchronization across multiple locations.
Private file cloud
Enable efficient collaboration with Synology Drive
Synology Drive provides remote data access, synchronization, on-demand file restoration, and backup via handy desktop and mobile applications.
Multi-platform support
Access personal and shared data from mobile apps, desktop clients, web browsers, or another Synology system. Any changes you make are automatically synced to other devices as soon as they are connected.
Collaborate in real time
Enable concurrent editing of documents, spreadsheets, and slides with Synology Office, with support for conversion to and from Microsoft Word, Excel, PowerPoint, and OpenDocument files.
Efficient multi-site synchronization
Connect teams with Hybrid Share
Use Hybrid Share to store large sets of data in the cloud, leveraging the large bandwidth of our data centers to stream requested files to local NAS deployed at the branch offices.
Reliable data access on demand
With Hybrid Share-enabled folders, remote teams retain full access to the most up-to-date files while benefiting from a reduced local storage footprint and lower bandwidth usage.
Local caching of most-used data
Frequently-accessed files are kept on the local NAS, allowing users to access them at LAN speeds. Files and folders can also be pinned manually to prevent them from being replaced when the cache is full.
Multi-endpoint data protection
Design an effective backup strategy to maximize data and system availability with a host of native and license-free solutions.
Consolidated backup server
Endpoint, VM, and NAS/SAN protection
Securely back up Windows, Mac, and Linux endpoints, Synology servers, and VMware® and Hyper-V® virtual machines with Active Backup for Business.
Microsoft 365 and Google Workspace
Centralize backups of Microsoft 365 and Google Workspace data to protect cloud data from accidents and simplify compliance with data retention policies. Schedulable backups, flexible file versioning, and block-level deduplication ensure flexibility and savings in terms of storage and bandwidth consumption.
Data protection and recovery
Hyper Backup
Back up files, LUNs, installed applications, and system configurations to destinations including Synology C2 Storage,6public cloud platforms, USB devices, file servers, local folders, and other Synology systems.
Set and forget backup tasks with regular schedules, enhance security with granular user permissions and encryption, keep backup sizes small with built-in deduplication, and restore data flexibly with multi-versioning.
Snapshot Replication
Snapshot Replication enables configurable point-in-time snapshots of shared folders and VM storage with an RPO as low as 5 minutes and recovery within seconds.
Smart and scalable surveillance
Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.
Simple-to-deploy local surveillance
Wide device compatibility
Connect up to 75 IP cameras from a selection of over 8,600 validated models thanks to Synology Surveillance Station’s wide camera compatibility.
Multi-platform convenience
Monitor live streams or watch recordings from web browsers, desktop clients, or the DS cam mobile app.
Secure and private storage
Footage is stored locally for easier compliance with data protection regulations and further protected from unauthorized access with industry-standard AES-256 encryption.
Flexible monitoring of multiple locations
Assisted camera deployment
Automatically locate new cameras within a set IP range, and configure units in batch via spreadsheet import or replicating settings to new cameras.
Centralized management and monitoring
Stay on top of your deployment by previewing triggered events directly on multi-floor or multi-location maps, with online map integration for Google Maps and OpenStreetMap.
Time-saving video analytics
Take advantage of intelligent monitoring features such as motion detection, no-idle zones, foreign object detection, and anomaly detection that cater to common surveillance scenarios.
Works best with Synology drives
Enjoy high sustained performance and reliability with enterprise-grade drives designed for Synology NAS, featuring built-in data protection.
Synology has you covered
The RS2423RP+II is backed by Synology’s 3-year hardware warranty.9 An optional 2-year extended warranty is available in select regions to extend coverage to 5 years.
Description
Faster and more responsiveThe RS2423RP+II offers exceptional performance with over 155K/79K random read/write IOPS and up to 3,500/1,700 MB/s sequential read/write throughput.2 They are the perfect cost-effective file management and sharing solution for SMBs and come equipped with advanced backup capabilities designed for businesses with expanding data needs.
Designed for reliability
The RS2423RP+II comes with one 10GbE RJ-45 port and two Gigabit RJ-45 ports, which can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Two RS2423RP+II units can be paired using Synology High Availability to form a reliable active-passive server cluster, maximizing service uptime.
The RS2423RP+II also features redundant and hot-swappable power supply units to protect service continuity in case there are issues with one power source.
Room for expansion
Easily adjust the 2U 12-bay RS2423RP+II to match the usage of your environment, whether it needs performance, faster networking, or higher storage capacity.
Storage expansion
Add 12 extra drive bays for a total of 24 drive bays with a RX1223RP expansion unit.
SSD cache
Boost read/write IOPS for HDD arrays with NVMe or SATA SSD cache.
Flexible networking options
Improve I/O or add redundancy with 10/25GbE SFP+/SFP28 or RJ-45 networking.
Versatile storage for businesses
The RS2423RP+II is ideal for small to medium-sized businesses and branch offices seeking a high-performing, reliable, and cost-efficient storage solution for file management, data backup, and surveillance.
Intuitive storage for on-site and remote teams
Provide secure and convenient cross-platform file access, sharing, and synchronization across multiple locations.
Private file cloud
Enable efficient collaboration with Synology Drive
Synology Drive provides remote data access, synchronization, on-demand file restoration, and backup via handy desktop and mobile applications.
Multi-platform support
Access personal and shared data from mobile apps, desktop clients, web browsers, or another Synology system. Any changes you make are automatically synced to other devices as soon as they are connected.
Collaborate in real time
Enable concurrent editing of documents, spreadsheets, and slides with Synology Office, with support for conversion to and from Microsoft Word, Excel, PowerPoint, and OpenDocument files.
Efficient multi-site synchronization
Connect teams with Hybrid Share
Use Hybrid Share to store large sets of data in the cloud, leveraging the large bandwidth of our data centers to stream requested files to local NAS deployed at the branch offices.
Reliable data access on demand
With Hybrid Share-enabled folders, remote teams retain full access to the most up-to-date files while benefiting from a reduced local storage footprint and lower bandwidth usage.
Local caching of most-used data
Frequently-accessed files are kept on the local NAS, allowing users to access them at LAN speeds. Files and folders can also be pinned manually to prevent them from being replaced when the cache is full.
Multi-endpoint data protection
Design an effective backup strategy to maximize data and system availability with a host of native and license-free solutions.
Consolidated backup server
Endpoint, VM, and NAS/SAN protection
Securely back up Windows, Mac, and Linux endpoints, Synology servers, and VMware® and Hyper-V® virtual machines with Active Backup for Business.
Microsoft 365 and Google Workspace
Centralize backups of Microsoft 365 and Google Workspace data to protect cloud data from accidents and simplify compliance with data retention policies. Schedulable backups, flexible file versioning, and block-level deduplication ensure flexibility and savings in terms of storage and bandwidth consumption.
Data protection and recovery
Hyper Backup
Back up files, LUNs, installed applications, and system configurations to destinations including Synology C2 Storage,6public cloud platforms, USB devices, file servers, local folders, and other Synology systems.
Set and forget backup tasks with regular schedules, enhance security with granular user permissions and encryption, keep backup sizes small with built-in deduplication, and restore data flexibly with multi-versioning.
Snapshot Replication
Snapshot Replication enables configurable point-in-time snapshots of shared folders and VM storage with an RPO as low as 5 minutes and recovery within seconds.
Smart and scalable surveillance
Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.
Simple-to-deploy local surveillance
Wide device compatibility
Connect up to 75 IP cameras from a selection of over 8,600 validated models thanks to Synology Surveillance Station’s wide camera compatibility.
Multi-platform convenience
Monitor live streams or watch recordings from web browsers, desktop clients, or the DS cam mobile app.
Secure and private storage
Footage is stored locally for easier compliance with data protection regulations and further protected from unauthorized access with industry-standard AES-256 encryption.
Flexible monitoring of multiple locations
Assisted camera deployment
Automatically locate new cameras within a set IP range, and configure units in batch via spreadsheet import or replicating settings to new cameras.
Centralized management and monitoring
Stay on top of your deployment by previewing triggered events directly on multi-floor or multi-location maps, with online map integration for Google Maps and OpenStreetMap.
Time-saving video analytics
Take advantage of intelligent monitoring features such as motion detection, no-idle zones, foreign object detection, and anomaly detection that cater to common surveillance scenarios.
Works best with Synology drives
Enjoy high sustained performance and reliability with enterprise-grade drives designed for Synology NAS, featuring built-in data protection.
Synology has you covered
The RS2423RP+II is backed by Synology’s 3-year hardware warranty.9 An optional 2-year extended warranty is available in select regions to extend coverage to 5 years.
Specifications
| Storage | |
|---|---|
| Total installed storage capacity | 0 TB |
| Storage drives installed | No |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 12 |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive capacity | 0 GB |
| Hot-swap drive bays | Yes |
| RAID support | Yes |
| Supported file systems | BTRFS, ext4, ext3, FAT32, NTFS, HFS+, exFAT |
| RAID levels | JBOD, 0, 1, 5, 6, 10 |
| Storage drive sizes supported | 2.5,3.5" |
| Processor | |
| Processor generation | AMD Ryzen 1000 Series |
| Processor manufacturer | AMD |
| Thermal Design Power (TDP) | 54 W |
| Processor threads | 8 |
| Processor boost frequency | 3.6 GHz |
| Processor frequency | 3.35 GHz |
| Processor family | AMD Ryzen |
| Processor model | V1780B |
| Processor cores | 4 |
| Number of processors installed | 1 |
| L3 cache | 4 MB |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 8 GB |
| Maximum RAM supported | 32 GB |
| Memory slots | 2 |
| Memory form factor | UDIMM |
| ECC | Yes |
| Network | |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Supported network protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Ports & interfaces | |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Expansion ports quantity | 1 |
| Hard drive | |
| RAID support | Yes |
| Supported file systems | BTRFS, ext4, ext3, FAT32, NTFS, HFS+, exFAT |
| RAID levels | JBOD, 0, 1, 5, 6, 10 |
| Design | |
| Fan diameter 2 | 2.36" (6 cm) |
| Cooling type | Active |
| Fan diameter | 2.36" (6 cm) |
| Built-in display | No |
| Product colour | Black |
| Number of fans | 3 fan(s) |
| LED indicators | Power, Status, Alarm |
| Chassis type | Rack (2U) |
| Technical details | |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Built-in display | No |
| Product colour | Black |
| Noise level | 56.2 dB |
| LED indicators | Power, Status, Alarm |
| Chassis type | Rack (2U) |
| Supported protocols | SMB, AFP, NFS, FTP, WebDAV, Rsync |
| Expansion description | Mini-SAS HD |
| Number of fans | 3 fan(s) |
| Doesn't contain | Lead, Mercury, Cadmium |
| Warranty period | 3 year(s) |
| Compliance certificates | Federal Communications Commission (FCC), CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS, UL, RoHS |
| Performance | |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| On/off switch | Yes |
| Security algorithms | SSL/TLS, SSH, HTTPS |
| Reset button | Yes |
| Operating system installed | DiskStation Manager |
| Noise level | 56.2 dB |
| Snapshot | Yes |
| Cooling | |
| Cooling type | Active |
| Fan diameter | 2.36" (6 cm) |
| Number of fans | 3 fan(s) |
| Security | |
| Security algorithms | SSL/TLS, SSH, HTTPS |
| Software | |
| Operating system installed | DiskStation Manager |
| Management features | |
| On/off switch | Yes |
| Reset button | Yes |
| Power | |
| Power consumption (HDD standby) | 42.33 W |
| Power supply unit (PSU) capacity | 550 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 114.86 W |
| Number of phases | 1 |
| Weight & dimensions | |
| Width | 19" (482 mm) |
| Depth | 22.8" (578 mm) |
| Height | 3.46" (88 mm) |
| Weight | 26.2 lbs (11.9 kg) |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | Power |
| Power cables quantity | 2 |
| Features | |
| Product languages | Multi |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Operating altitude | 0 - 196850.4" (0 - 5000 m) |
| Packaging data | |
| Cables included | Power |
| Other features | |
| Size (imperial) | 19" |
| Supported protocols | SMB, AFP, NFS, FTP, WebDAV, Rsync |
| Expansion description | Mini-SAS HD |
| Doesn't contain | Lead, Mercury, Cadmium |
| Warranty period | 3 year(s) |
| Compliance certificates | Federal Communications Commission (FCC), CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS, UL, RoHS |
Loading product information from Icecat...
Related products
FAQ
Questions? We're Here to Help.
Can't find what you're looking for? Our team is available through live chat.
Need immediate assistance?
Our sales engineering and accounts team is available Monday through Friday, 9:00 AM to 6:00 PM ET.
Call (315) 930-4535We offer computing hardware, networking equipment, servers and storage, plus power and security products from leading technology brands.
Yes, our team provides pre-sale consultation and post-purchase support to ensure you get the right solutions for your needs.
Return new, undamaged items with all accessories and original packaging within 30 days of delivery. A 20% restocking fee applies to non-defective returns. Defective, damaged or incorrect items are replaced or refunded, with a free return label.
Standard shipping is $25, free on orders over $2,500 in the contiguous US Express is $40, or $350 on orders over $2,500. Alaska and Hawaii ship by air for $85. In-stock orders leave the warehouse within 2-3 business days, standard transit is 5-7 business days and express 1–2 days.
Absolutely! Contact our sales team via live chat, phone, or email to discuss your requirements and receive a customized quote.
Popular Queries
Samsung QM43B-T signage display Digital signage flat panel 43" LED Wi-Fi 500 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Tizen 6.5 24/7
Jabra Speak2 75
NETGEAR CM3000 modem
LG 43UL3Q-E signage display Digital signage flat panel 43" LED Wi-Fi 350 cd/m² 4K Ultra HD Black WebOS 16/7
Sony BZ30P Digital signage flat panel 75" LED 400 cd/m² 4K Ultra HD Black Built-in processor Android 24/7
LG 55UL5Q-M signage display Digital signage flat panel 55" LED Wi-Fi 500 cd/m² 4K Ultra HD Black WebOS 24/7
Sharp LM431 Interactive flat panel 43" LED Wi-Fi 500 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 14 18/7
LG 55XS4P signage display Digital signage flat panel 55" LED 4000 cd/m² Full HD Black WebOS 24/7
HPE ProLiant DL380 Gen11 5416S 2.0GHz 16c 1P 2x32GB-R 8SFF MR416i-o 2x960GB SSD 2x1000W PS NA Server
APC SRTL5KRM2UT uninterruptible power supply (UPS) Double-conversion (Online) 4.9 kVA 4900 W 4 AC outlet(s)
AddOn Networks 280-0451-00-AO network transceiver module Fiber optic 80000 Mbit/s SFP+
AddOn Networks 321-2377-AO network transceiver module Fiber optic 25000 Mbit/s SFP28 850 nm
HP Poly TC10 White Touch Controller
HP Poly Studio V52 USB Video Bar
HP Poly Trio C60 IP Conference Phone for Microsoft Teams and PoE-enabled No Radio GSA/TAA
View all →
