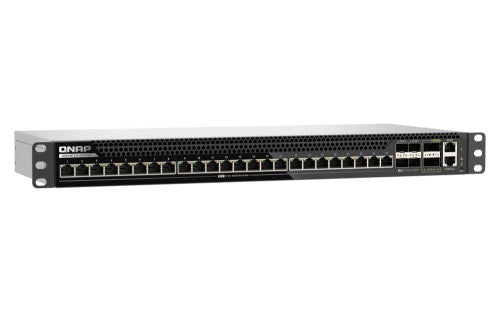

QNAP QSW-M7230-2X4F24T-US network switch Managed L3 10G Ethernet (100/1000/10000) 1U Black

L3, 24x 10GbE BASE-T (RJ45), 4x 25GbE SFP28, 2x 100GbE QSFP28, 44 x 439 x 190 mm, US

Key Features

• Triple-Rate Integration: A multi-rate design combining 100GbE, 25GbE, and 10GbE ports to simultaneously address backbone, aggregation, and access layer requirements. Flexibly connects QNAP NAS, servers, and related switch series to build a consistent high-speed network architecture with ease
• L3 Lite: Provides IP settings (IPv4, IPv6, DNS), static routing, DHCP server, SNTP and advanced VLAN settings to deploy and manage high-performance and secure enterprise network infrastructure
• Continuous Enterprise networks: Adopts MC-LAG, (Multi-chassis link aggregation group) to offer High Availability and redundancy to guarantee uninterrupted network switching
• Optimized ToR Deployment: Features a 1U rack-mount design integrating 100GbE, 25GbE, and 10GbE, making it ideal as a Top-of-Rack (ToR) switch for centralized access to servers and storage nodes
• Cloud-centralized Control for Hassle-free Management: No additional hardware or software is required. Use the AMIZcloud management platform to monitor multiple switches across various locations, enabling remote IT troubleshooting and reducing operational costs
• Low-Latency AVoIP User Experience: Supports IGMP Snooping with VLAN and Precision Time Protocol (PTP) for accurate time synchronization, improving the quality and stability of audiovisual transmission. This makes it ideal for applications such as video walls and large outdoor display walls

Description

QSW-M7230-2X4F24T
Three-speed, high-value choice — upgrade to a 100GbE enterprise backbone with ease

QSW-M7230-2X4F24T is an L3 Lite managed 100GbE switch built for high-performance storage environments and mid-to-large enterprise backbones. It integrates 2×100GbE QSFP28 ports, 4×25GbE SFP28 ports, and 24×10GbE RJ45 ports, enabling 100G/25G uplinks for servers and NAS on a single platform while supporting large-scale 10G access from servers, workstations, and aggregation switches. With L3 Lite routing and an MC-LAG high-availability architecture, it keeps mission-critical traffic stable and low-latency even under heavy workloads—helping enterprises build a scalable, cost-effective 100GbE backbone network.
The QSW-M7230-2X4F24T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.

Specifications

Management features
Reset button	Yes
Switch type	Managed
Switch layer	L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Console port	RJ-45
QSFP28 ports quantity	2
SFP28 ports quantity	4
Network
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ad, IEEE 802.1ab, IEEE 802.1p
10G support	Yes
Data transmission
MAC address table	32000 entries
Switching capacity	1080 Gbit/s
Throughput	540 Gbit/s
Design
Reset button	Yes
Form factor	1U
Product colour	Black
Rack mounting	Yes
Power
Power consumption (max)	158.21 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	17.3" (439 mm)
Depth	7.48" (190 mm)
Height	1.73" (44 mm)
Weight	6.83 lbs (3.1 kg)
Packaging data
Package width	22.9" (582 mm)
Package depth	14.3" (362 mm)
Package height	6.69" (170 mm)
Package weight	10.3 lbs (4.67 kg)
Technical details
Form factor	1U
Product colour	Black
Rack mounting	Yes
