StarTech.com SV565UTPHDU KVM extender AV transmitter & receiver

StarTech.com 330ft (100m) USB HDMI over CAT5e / CAT6 KVM Extender - 1080p Uncompressed HD Video - IT Grade KVM Console Extender for PC (SV565UTPHDU)

Description

The SV565UTPHDU USB HDMI® KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection, with uncompressed 1080p HDMI video and access to up to 3 connected USB devices.

A flexible solution for powering large high-definition displays remotely, this HDMI USB extender supports uncompressed 1080p or 1920x1200 video resolutions at maximum distance. Additional features such as 3D support, HDCP, CEC and Lip Sync pass-through enable you to display your content exactly as you need it on the remote display.

This versatile KVM console extender can be connected to a single system, or cascaded to an existing KVM switch for remote operation of multiple systems, and features 3 USB 2.0 ports on the remote end, allowing you to connect a keyboard, mouse, printer or other peripherals. Since the extender uses Cat 5e (or better) network cable, you have the option to use existing infrastructure wiring, which helps avoid the hassle and expense of running bulky video cables.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Power a large HDMI display from a distance with uncompressed 1080p video
- Operate a single system or KVM switch remotely through KVM console extension
- Save time and money by extending over an existing Cat 5e / Cat 6 infrastructure cabling

Specifications

Features
Type	AV transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	3937" (100 m)
Rack mounting	No
Maximum digital resolution	1920 x 1200 pixels
Product colour	Black
Material	Aluminum
Plug and Play	Yes
Certification	CE, FCC, RoHS, UL
Transmitter
Transmitter video port type	HDMI
Transmitter local keyboard/mouse port type	USB
Receiver
Receiver local video port type	HDMI
Power
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
AC adapter output voltage	5 V
AC adapter output current	3 A
Power consumption (transmitter) (max)	15 W
Power consumption (receiver) (max)	15 W
Weight & dimensions
Package width	8.43" (214 mm)
Package depth	14.8" (375 mm)
Package height	4.06" (103 mm)
Package weight	5.42 lbs (2.46 kg)
Packaging data
Package width	8.43" (214 mm)
Package depth	14.8" (375 mm)
Package height	4.06" (103 mm)
Package weight	5.42 lbs (2.46 kg)

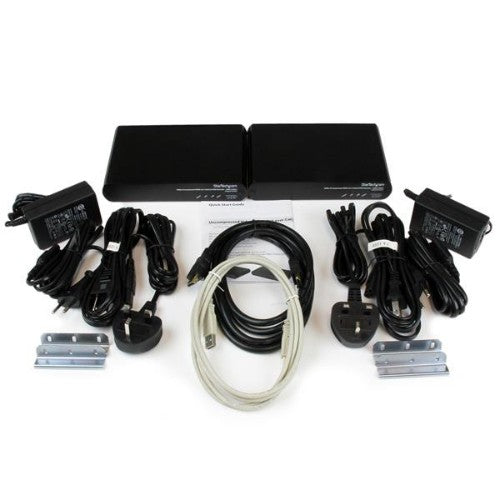

AC adapter included	Yes
Cables included	AC, HDMI, USB
Quick installation guide	Yes
Packaging content
AC adapter included	Yes
Cables included	AC, HDMI, USB
Quick installation guide	Yes
Technical details
Harmonized System (HS) code	84733080
Weight	29.9 oz (847 g)
Dimensions (WxDxH)	4.41 x 6.89 x 1.18" (112 x 175 x 30 mm)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Logistics data
Harmonized System (HS) code	84733080
