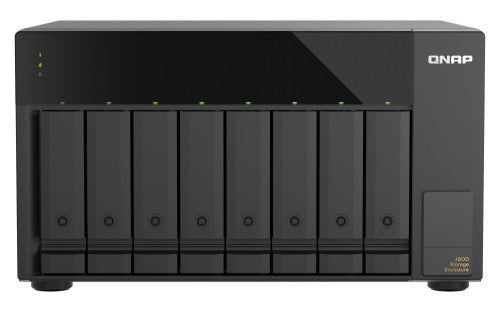

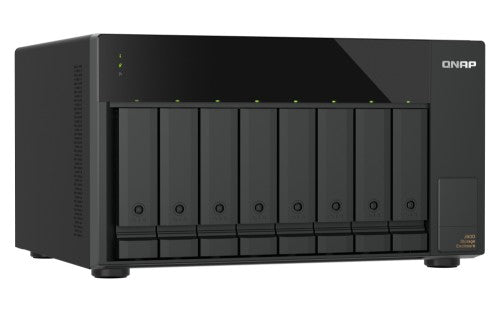

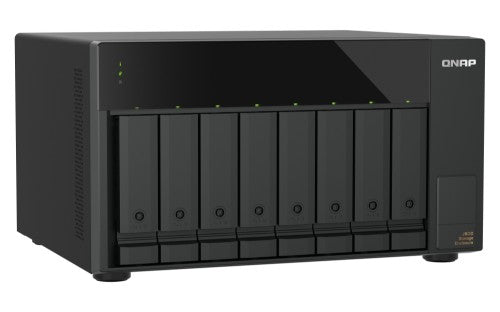

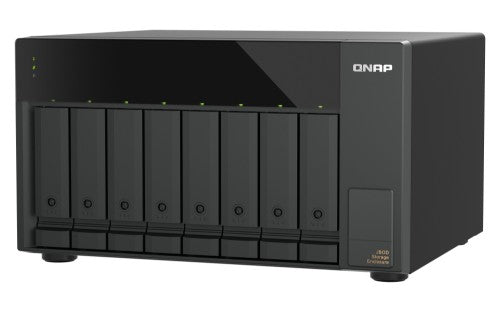

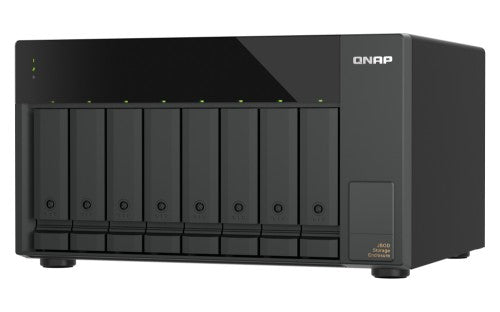

QNAP TL-D810TC4-US disk array 0 TB Desktop Black

8 x 3.5/2.5" SATA 6Gb/s, 1 x USB 4 (40Gbps) Type-C, 188.2 x 329.3 x 281.4 mm, US

Key Features

• Flexible Expansion for NAS, PCs, and Macs: Compatible with QTS 5.2.x/QuTS hero 5.2.8 (or later), Windows 11 (or later), macOS 12.0 (or later), Ubuntu 22.04 (or later), and other systems, TL-D810TC4 allows flexible storage expansion up to 208 TB (maximum raw capacity: eight bays * 26 TB), ensuring both data security and ease of management.
• High-Speed 40Gbps Transfer: Utilizing USB 4 high-speed transfer, it supports up to 40Gbps (actual speeds depend on the device and cables) and supports QNAP NAS, Mac, Windows systems compatible with Thunderbolt™ 4.
• Supports SATA Hard Drives: With SATA 6Gb/s hard drive slots, it ensures reliable continuous read performance for smooth and fast operations.
• Supports UASP: Supports UASP (USB Attached SCSI Protocol), which significantly improves transfer speeds and reduces data delay and wait times.
• Host-based power management: When the main device powers on or off, JBOD automatically synchronizes, improving system stability and reducing operational risks.

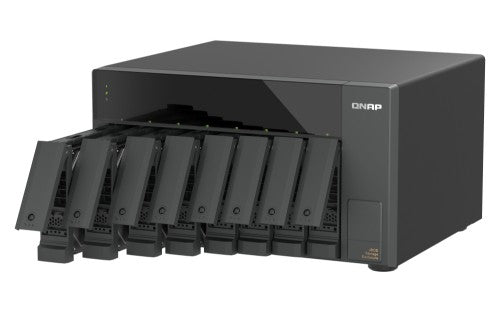

• Lockable Hard Drive Slots: With the included key, you can lock each hard drive slot, preventing removal of drives and ensuring the physical safety of your data.

Description

TL-D810TC4 (USB 4)
8-bay Desktop USB 4 Type-C JBOD

The desktop TL-D810TC4 features eight SATA 6Gb/s hard drive slots, supporting 3.5-inch/2.5-inch SATA HDDs or SSDs. With a USB 4 Type-C interface, it is also compatible with Thunderbolt™ 3/4, offering transfer speeds up to 40Gbps, making large-file access and backups faster and more efficient. TL-D810TC4 is the perfect expansion solution for creators and personal users with high storage demands, providing high-speed access, convenient deployment, and easy management of data and backups.

Specifications

Storage
Total installed storage capacity	0 TB
Hot-Plug support	Yes
Hot-swap drive bays	Yes
Installed storage drive type	No
Number of storage drives installed	0
Supported storage drive types	HDD & SSD
Number of storage drives supported	8
Storage drives installed	No
Supported storage drive interfaces	Serial ATA III
Storage drive sizes supported	2.5,3.5"
Ports & interfaces
USB connectivity	Yes
Technical details
Device class	Home & Home Office
Number of fans	2 fan(s)
Product colour	Black
Cable lock slot type	Kensington
Cable lock slot	Yes
Chassis type	Desktop
Hot-Plug support	Yes
Warranty period	2 year(s)
Design
Device class	Home & Home Office
Number of fans	2 fan(s)
Product colour	Black
Cable lock slot type	Kensington
Cable lock slot	Yes
Chassis type	Desktop
Cooling	Yes
Fan diameter	4.72" (12 cm)
Performance
Device class	Home & Home Office
Power
Power supply unit (PSU) capacity	250 W
AC input voltage	100 - 240 V
Weight & dimensions
Width	13" (329.3 mm)
Depth	11.1" (281.4 mm)
Weight	13.6 lbs (6.18 kg)
Height	7.41" (188.2 mm)
Package width	11.9" (303 mm)
Package depth	9.84" (250 mm)
Package height	12.5" (317 mm)
Package weight	17 lbs (7.7 kg)
Packaging data
Package width	11.9" (303 mm)
Package depth	9.84" (250 mm)
Package height	12.5" (317 mm)
Package weight	17 lbs (7.7 kg)
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Other features
Warranty period	2 year(s)
