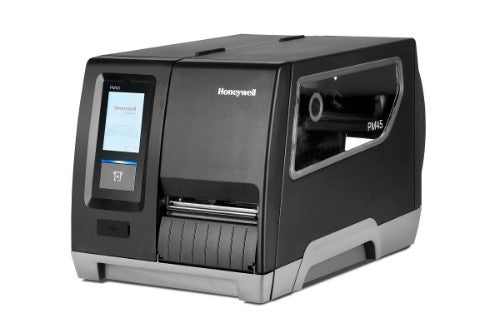

Honeywell PM45A label printer Thermal transfer 203 x 203 DPI 350 mm/sec Wired Ethernet LAN

PM45A, Full Touch Display, Ethernet, Fixed Hanger, RFID EU,Rewinder + label taken sense, Thermal Transfer, 203 DPI

Description

The Honeywell PM45 is built for smart label solutions that help enterprises enhance automation and intelligence in manufacturing and supply chain management for high operating efficiency.

Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The Honeywell PM45 industrial printer is designed to give businesses the flexibility and precision for high-volume printing. The PM45 printer’s track-and-trace functionality is aimed at improving print efficiency and supply chain transparency within a variety of industries, including food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.

Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high-quality prints for barcodes, texts, and images, even on small electronic components and medical device labels.

As a highly connected industrial printer, the PM45 is packed with enhanced WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer’s versatility allows the user to incorporate RFID, parallel, industrial, and applicator interfaces to address unpredictable future business needs. To help your transformation to intelligent manufacturing and supply chain management, the PM45 printer supports variable network protocols and multiple print languages to enable easy integration into your system, whether it is cloud-based or on a local server.

Embedded with Honeywell’s Smart Parse software, the PM45 allows for quick position changes, sizing of objects and barcodes, or font type on labels, without the need for backend system changes or programming skills. With Honeywell’s Operational Intelligence software, users can remotely manage and monitor the PM45 printer’s diagnostics and output performance. The PM45 supports a wide range of media – including ink-in and ink-out ribbons with a 1-inch core size – enhancing the time between media resupplies.

The PM45 printer is an ideal replacement for existing Honeywell or mixed printers, especially with Honeywell’s firmware platform supporting multiple print languages. A rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement helps minimize downtime and maintenance needs.

Specifications

Print quality
Maximum resolution	203 x 203 DPI
Maximum printing width	4.25" (10.8 cm)
Printing
Colour	No
Printing colours	Black
Print speed	350 mm/sec
Maximum resolution	203 x 203 DPI
Maximum printing width	4.25" (10.8 cm)
Print technology	Thermal transfer
Number of printable dots	8 dot
Margin depth settings	Fixed
Display
Display	LCD
Network
Wi-Fi	No
Ethernet LAN	Yes
Memory
Internal memory	256 MB
Flash memory	512 MB
Paper handling
Maximum roll diameter	8.39" (21.3 cm)
Maximum label width	4.49" (11.4 cm)
Core diameter	3" (7.62 cm)
Ports & interfaces
USB 2.0 ports quantity	2
RS-232 ports	1
Connectivity technology	Wired
Wi-Fi	No
Ethernet LAN	Yes
USB port	Yes
Performance
Mobile operating systems supported	Android, iOS
Built-in barcodes	1D, 2D
Internal memory	256 MB
Image formats supported	BMP, GIF, PCX, PNG
Flash memory	512 MB
Built-in RFID module	Yes
Page description languages	DP, DPL, IPL, XML, ZPL II
Design
Display	LCD
Product colour	Black
Control type	Touch
Built-in display	Yes
Power
Power consumption (standby)	9.6 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Technical details
Windows operating systems supported	Yes
Product colour	Black
Built-in barcodes	1D, 2D
Maximum label width	4.49" (11.4 cm)
Image formats supported	BMP, GIF, PCX, PNG
Built-in RFID module	Yes
Sustainability certificates	ENERGY STAR
Compliance certificates	RoHS, CE
System requirements
Mobile operating systems supported	Android, iOS
Linux operating systems supported	Yes
Windows operating systems supported	Yes
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 85%
Weight & dimensions
Width	11.2" (284 mm)
Depth	19" (483 mm)
Height	11.6" (295 mm)
Packaging content
Cables included	AC
