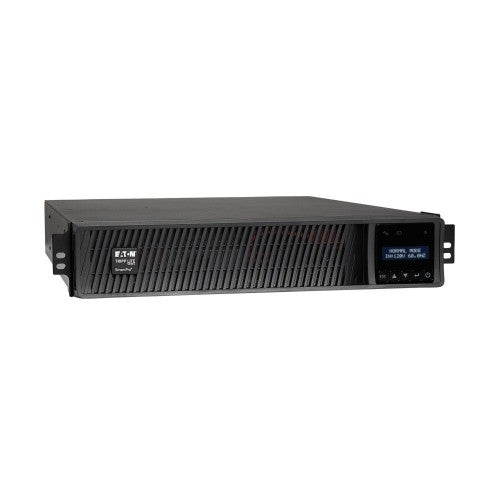

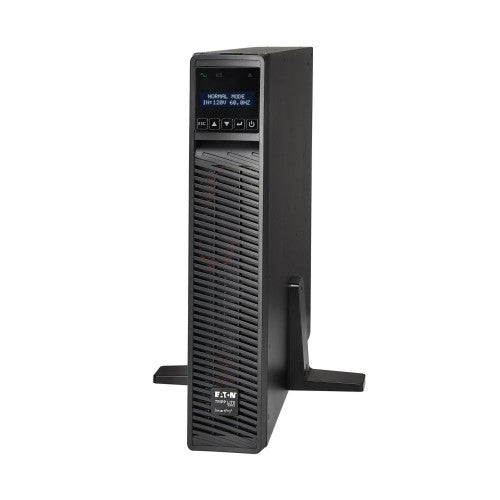

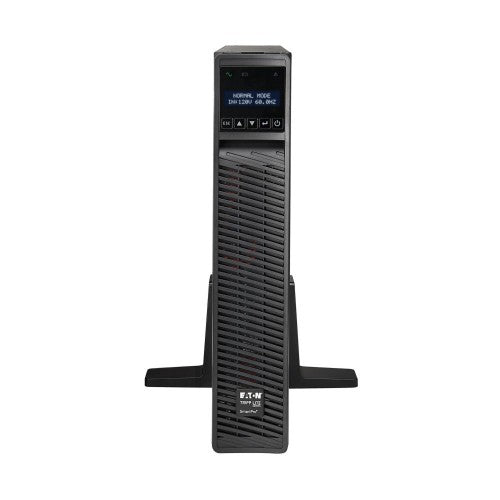

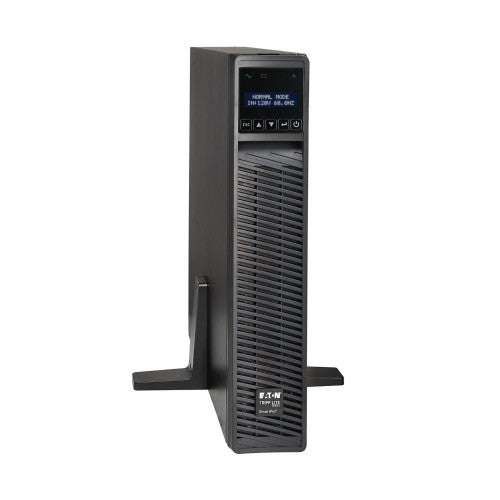

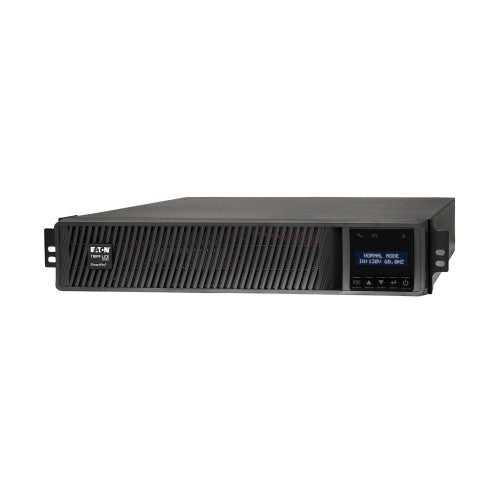

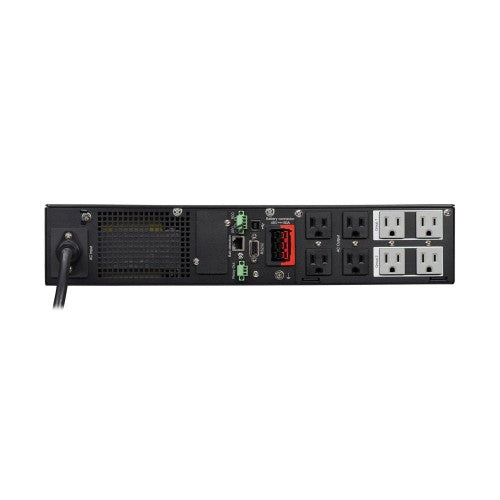

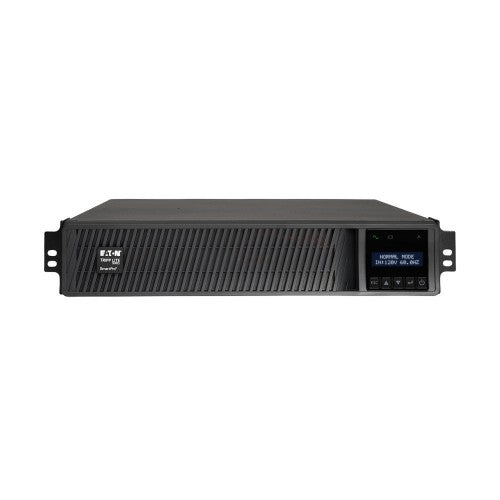

Eaton SMART1500RXLTAA uninterruptible power supply (UPS) Line-Interactive 1.44 kVA 1440 W 8 AC outlet(s)

1.44 kVA, 1440W, 125V, 50/60Hz, 45 dB, LCD

Description

Dependable Battery Backup for Data Centers and Server Rooms

This SmartPro line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment. It is ideal for delivering regulated sine wave output to large and small network devices, high-end workstations, storage and security equipment in labs, server rooms and data centers.

Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions

Built-in AVR corrects abnormal voltage conditions without using the battery. The UPS maintains regulated nominal output during brownouts and overvoltages while keeping the battery fully charged and ready to take over in case of power failure.

5-15R Outlets Protect Your Connected Components

5-15R outlets are protected by 380 joules of surge protection to fight off damaging power surges and spikes. Two switchable two-outlet 5-15R load banks that are switchable via network interface. These outlets let you power connected equipment on and off remotely to reset or reboot connected equipment or to shed less significant loads to extend battery runtime for more critical equipment.

Filtering EMI/RFI Line Noise Helps Your Equipment Perform Better

This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

High Efficiency Helps the Environment and Your Cash Flow

Operating with a high level of efficiency, this UPS system can save BTU heat output and energy costs.

Advanced Communications Ports Allow for Automatic Saves and Shutdowns

RS-232 and USB ports connect to a device for a variety of communication options (cables are included). The EPO (Emergency Power Off) port permits emergency shutdown of connected equipment.

Specifications

Power
Output frequency	50/60 Hz
Output power	1440 W
Input operation voltage (min)	70 V
Input operation voltage (max)	153 V
Output operation voltage (min)	100 V
Output operation voltage (max)	125 V
Surge energy rating	380 J
Output power capacity	1.44 kVA
Ports & interfaces
Cable length	118.1" (3 m)
USB port	Yes
Serial interface	Yes
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5-15R
Power plug	NEMA 5-15P
USB 2.0 ports quantity	1
Serial ports quantity	1
USB port type	USB Type-B
Performance
UPS topology	Line-Interactive
Waveform	Pure sine
EMI/RFI noise filtering	Yes
Surge protection	Yes
Noise level	45 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
UPS topology	Line-Interactive
Waveform	Pure sine
Output power	1440 W
Input operation voltage (min)	70 V
Input operation voltage (max)	153 V
Output operation voltage (min)	100 V
Output operation voltage (max)	125 V
Surge energy rating	380 J
EMI/RFI noise filtering	Yes
Surge protection	Yes
Noise level	45 dB
Audible alarm(s)	Yes
Output power capacity	1.44 kVA
Battery
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	5.1 min
Typical backup time at full load	15.1 min
Design
Rack capacity	2U
Form factor	Rackmount/Tower
Product colour	Black
Cable length	118.1" (3 m)
Housing material	Steel
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Output frequency	50/60 Hz
Sustainability certificates	ENERGY STAR
Compliance certificates	CSA, ICES, Norma Oficial Mexicana (NOM), UL, CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Certificates
Compliance certificates	CSA, ICES, Norma Oficial Mexicana (NOM), UL, CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Packaging content
Rack mount kit	Yes
Manual	Yes
Cables included	Serial
Sustainability
Sustainability certificates	ENERGY STAR
Weight & dimensions
Weight	50.7 lbs (23 kg)
Width	17.2" (436.8 mm)
Height	3.4" (86.3 mm)
Depth	17.6" (447 mm)
Packaging data
Rack mount kit	Yes
Manual	Yes
Cables included	Serial
