ASUS

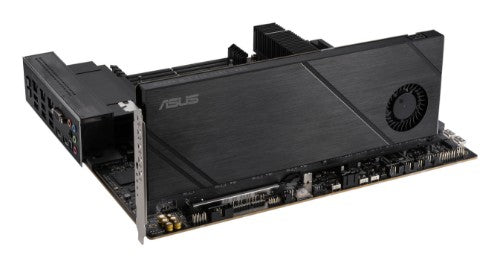

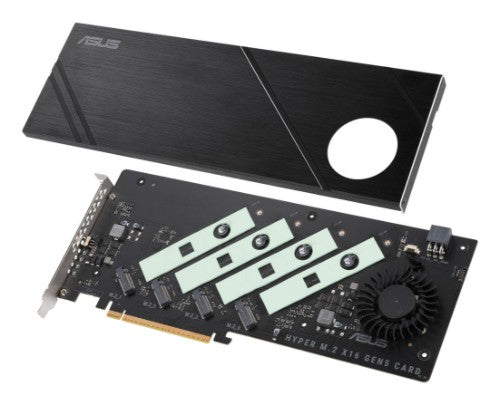

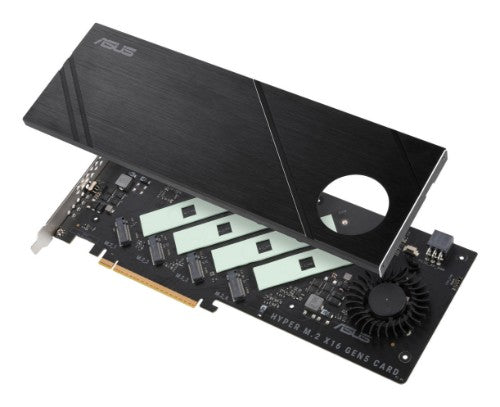

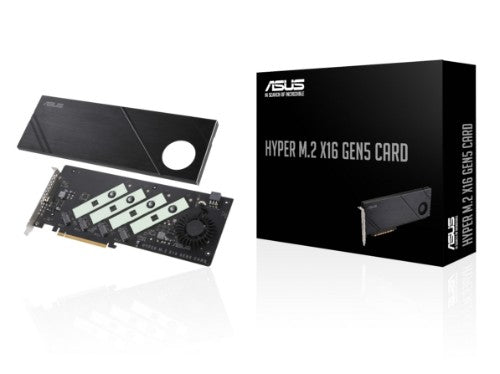

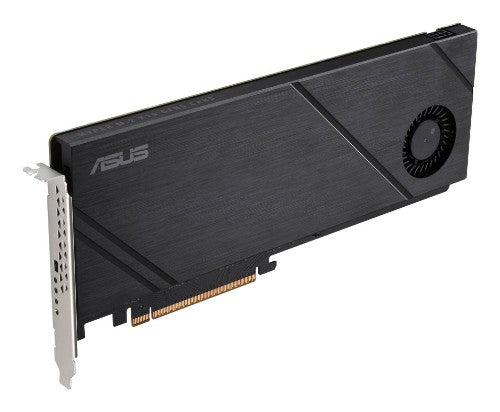

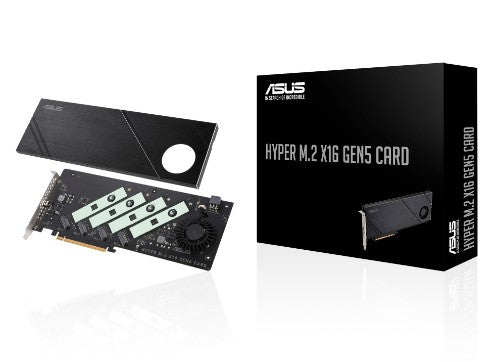

ASUS Hyper M.2 x16 Gen5 Card interface cards/adapter Internal
SKU:
HYPER M.2 X16 GEN5 CARD
Condition: New
$86.74 USD
Pickup currently not available
✔
Factory-Sealed
Sourced from authorized distributors
✔
Manufacturer Warranty
Terms set by the brand
✔
Enterprise Expertise
Business Procurement
Free standard shipping over $2,500
Delivery estimates are based on product availability, destination, fulfillment method, and qualifying order requirements. 30-day returns; 20% restocking fee on non-defective returns. Shipping policy · Return policy
Loading documents...
Need Help Before You Order?
Check compatibility, availability, or volume pricing with an IT procurement specialist.
Enterprise IT Procurement Built for Business
Source servers, networking, storage, workstations, and business technology through established distribution channels with dedicated procurement support.
1,700+
Business Accounts Supported
32,000+
Enterprise Hardware Products Available
Fast, Reliable Procurement Support
Reach out for responsive product availability, part numbers, pricing, and additional hardware needs.
4–8 Hrs
Typical RFQ Response Target
Multi-Vendor
Hardware Sourcing
Keep Your IT Projects Moving
For business hardware purchases and larger deployments, get shipment information, order coordination, and delivery support.
Manufacturer Warranty Coverage
Eligible products include warranty coverage provided by the original manufacturer according to applicable brand and product terms.
Brand Warranty TermsFactory-Sealed HardwareOEM Support Eligibility
A Trusted Source for Enterprise Hardware
Source factory-sealed IT hardware through established technology distribution channels, with support for individual purchases, BOM requests, and larger business requirements.
112+
Technology Brands
32,000+
Hardware Products Available
Key Features
PCIe 5.0 x16, 4 x M.2 slots, 1 x M.2 FAN Power Switch, 4 x M.2 access LEDs, 512Gbps
Support RAID Function
The ASUS Hyper M.2 x16 Gen5 Card is able to support RAID functions across different CPU platforms. For ultimate flexibility , unused CPU PCIe lanes can be assigned to storage to create a bootable RAID array with up to four M.2 SSDs*.
One Card,
8X The Bandwidth
The ASUS Hyper M.2 x16 Gen5 Card uses PCIe 5.0, which offers twice the bandwidth per lane compared to PCIe 4.0. With four M.2 slots, it enables up to 512 Gbps of bandwidth per card — 8X the bandwidth of a single PCIe 4.0 drive.
Enhanced Cooling
The ASUS Hyper M.2 x16 Gen5 Card not only enhances hardware but also incorporates advanced software solutions for efficient thermal management, effectively dissipating heat to keep SSDs at optimal temperature for unwavering performance.
A full-cover heatsink that attaches to the M.2 SSD and features air duct and blower-style fan. Plus, the four M.2 slots are supported by top and bottom thermal pads to reduce temperature-induced throttling during heavy, sustained data transfers.

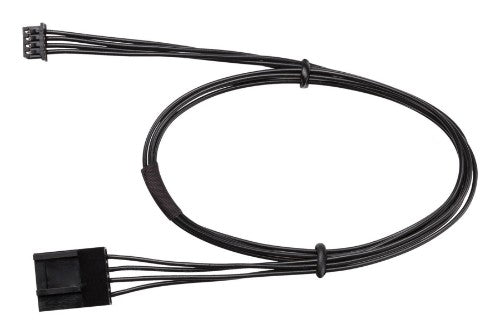

The integrated blower-style active fan easily connects to the motherboard chassis fan header, allowing users to adjust fan speed in ASUS Fan Xpert 4.
Designed For Unthrottled Transfer Speeds

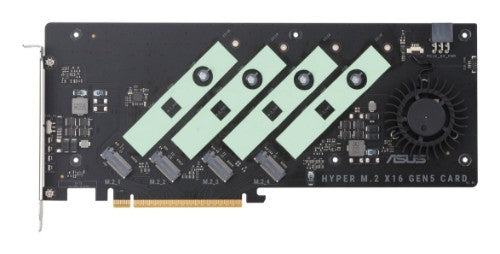

The ASUS Hyper M.2 x16 Gen5 Card has four M.2 slots — supporting both PCIe 5.0 and 4.0 — that allow users to supplement entire Designed for latest-generation NVMe drives, the card features a stable power supply that provides up to 14 watts of power per drive. The card also supports RAID functions across four M.2 slots ,providing up to 128 GT/s bandwidth per M.2 slot.
Key Features
- 1 x 6-pin PCIe power connector and two-phase power solution with up to 14-watt output to support the latest NVMe drives
- Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability; additional fan cable connects to the motherboard's chassis fan header to allow the motherboard to control and regulate fan speed
- Adapted server-grade PCB supports up to four PCIe 5.0/4.0 M.2 drives, with up to 512 Gbps bandwidth for smooth data transfers
Description
ASUS Hyper M.2 x16 Gen5 Card (PCIe 5.0/4.0) supports up to four NVMe M.2 (2242/2260/2280/22110) devices at up to 512 Gbps for RAID functions across diverse CPU platformsSupport RAID Function
The ASUS Hyper M.2 x16 Gen5 Card is able to support RAID functions across different CPU platforms. For ultimate flexibility , unused CPU PCIe lanes can be assigned to storage to create a bootable RAID array with up to four M.2 SSDs*.
One Card,
8X The Bandwidth
The ASUS Hyper M.2 x16 Gen5 Card uses PCIe 5.0, which offers twice the bandwidth per lane compared to PCIe 4.0. With four M.2 slots, it enables up to 512 Gbps of bandwidth per card — 8X the bandwidth of a single PCIe 4.0 drive.
Enhanced Cooling
The ASUS Hyper M.2 x16 Gen5 Card not only enhances hardware but also incorporates advanced software solutions for efficient thermal management, effectively dissipating heat to keep SSDs at optimal temperature for unwavering performance.
A full-cover heatsink that attaches to the M.2 SSD and features air duct and blower-style fan. Plus, the four M.2 slots are supported by top and bottom thermal pads to reduce temperature-induced throttling during heavy, sustained data transfers.
The integrated blower-style active fan easily connects to the motherboard chassis fan header, allowing users to adjust fan speed in ASUS Fan Xpert 4.
Designed For Unthrottled Transfer Speeds
The ASUS Hyper M.2 x16 Gen5 Card has four M.2 slots — supporting both PCIe 5.0 and 4.0 — that allow users to supplement entire Designed for latest-generation NVMe drives, the card features a stable power supply that provides up to 14 watts of power per drive. The card also supports RAID functions across four M.2 slots ,providing up to 128 GT/s bandwidth per M.2 slot.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | M.2 |
| Host interface | PCIe |
| NVMe | Yes |
| Expansion card standard | PCIe 5.0 |
| Technical details | |
| Purpose | PC |
| Data transfer rate (max) | 512 Gbit/s |
| Quantity per pack | 1 pc(s) |
| Performance | |
| Purpose | PC |
| Data transfer rate (max) | 512 Gbit/s |
| Product colour | Black |
| NVMe | Yes |
| Colour | |
| Product colour | Black |
| Design | |
| Easy to install | Yes |
| Purpose | PC |
| Internal | Yes |
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| LED indicators | Access |
| Number of expansion slots | 4 |
| Features | |
| Data transfer rate (max) | 512 Gbit/s |
| NVMe | Yes |
| Weight & dimensions | |
| Width | 11.4" (290 mm) |
| Depth | 4.8" (122 mm) |
| Height | 0.591" (15 mm) |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
Product Specs
PCIe 5.0 x16, 4 x M.2 slots, 1 x M.2 FAN Power Switch, 4 x M.2 access LEDs, 512Gbps
Support RAID Function
The ASUS Hyper M.2 x16 Gen5 Card is able to support RAID functions across different CPU platforms. For ultimate flexibility , unused CPU PCIe lanes can be assigned to storage to create a bootable RAID array with up to four M.2 SSDs*.
One Card,
8X The Bandwidth
The ASUS Hyper M.2 x16 Gen5 Card uses PCIe 5.0, which offers twice the bandwidth per lane compared to PCIe 4.0. With four M.2 slots, it enables up to 512 Gbps of bandwidth per card — 8X the bandwidth of a single PCIe 4.0 drive.
Enhanced Cooling
The ASUS Hyper M.2 x16 Gen5 Card not only enhances hardware but also incorporates advanced software solutions for efficient thermal management, effectively dissipating heat to keep SSDs at optimal temperature for unwavering performance.
A full-cover heatsink that attaches to the M.2 SSD and features air duct and blower-style fan. Plus, the four M.2 slots are supported by top and bottom thermal pads to reduce temperature-induced throttling during heavy, sustained data transfers.
The integrated blower-style active fan easily connects to the motherboard chassis fan header, allowing users to adjust fan speed in ASUS Fan Xpert 4.
Designed For Unthrottled Transfer Speeds
The ASUS Hyper M.2 x16 Gen5 Card has four M.2 slots — supporting both PCIe 5.0 and 4.0 — that allow users to supplement entire Designed for latest-generation NVMe drives, the card features a stable power supply that provides up to 14 watts of power per drive. The card also supports RAID functions across four M.2 slots ,providing up to 128 GT/s bandwidth per M.2 slot.
Key Features
- 1 x 6-pin PCIe power connector and two-phase power solution with up to 14-watt output to support the latest NVMe drives
- Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability; additional fan cable connects to the motherboard's chassis fan header to allow the motherboard to control and regulate fan speed
- Adapted server-grade PCB supports up to four PCIe 5.0/4.0 M.2 drives, with up to 512 Gbps bandwidth for smooth data transfers
Description
ASUS Hyper M.2 x16 Gen5 Card (PCIe 5.0/4.0) supports up to four NVMe M.2 (2242/2260/2280/22110) devices at up to 512 Gbps for RAID functions across diverse CPU platformsSupport RAID Function
The ASUS Hyper M.2 x16 Gen5 Card is able to support RAID functions across different CPU platforms. For ultimate flexibility , unused CPU PCIe lanes can be assigned to storage to create a bootable RAID array with up to four M.2 SSDs*.
One Card,
8X The Bandwidth
The ASUS Hyper M.2 x16 Gen5 Card uses PCIe 5.0, which offers twice the bandwidth per lane compared to PCIe 4.0. With four M.2 slots, it enables up to 512 Gbps of bandwidth per card — 8X the bandwidth of a single PCIe 4.0 drive.
Enhanced Cooling
The ASUS Hyper M.2 x16 Gen5 Card not only enhances hardware but also incorporates advanced software solutions for efficient thermal management, effectively dissipating heat to keep SSDs at optimal temperature for unwavering performance.
A full-cover heatsink that attaches to the M.2 SSD and features air duct and blower-style fan. Plus, the four M.2 slots are supported by top and bottom thermal pads to reduce temperature-induced throttling during heavy, sustained data transfers.
The integrated blower-style active fan easily connects to the motherboard chassis fan header, allowing users to adjust fan speed in ASUS Fan Xpert 4.
Designed For Unthrottled Transfer Speeds
The ASUS Hyper M.2 x16 Gen5 Card has four M.2 slots — supporting both PCIe 5.0 and 4.0 — that allow users to supplement entire Designed for latest-generation NVMe drives, the card features a stable power supply that provides up to 14 watts of power per drive. The card also supports RAID functions across four M.2 slots ,providing up to 128 GT/s bandwidth per M.2 slot.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | M.2 |
| Host interface | PCIe |
| NVMe | Yes |
| Expansion card standard | PCIe 5.0 |
| Technical details | |
| Purpose | PC |
| Data transfer rate (max) | 512 Gbit/s |
| Quantity per pack | 1 pc(s) |
| Performance | |
| Purpose | PC |
| Data transfer rate (max) | 512 Gbit/s |
| Product colour | Black |
| NVMe | Yes |
| Colour | |
| Product colour | Black |
| Design | |
| Easy to install | Yes |
| Purpose | PC |
| Internal | Yes |
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| LED indicators | Access |
| Number of expansion slots | 4 |
| Features | |
| Data transfer rate (max) | 512 Gbit/s |
| NVMe | Yes |
| Weight & dimensions | |
| Width | 11.4" (290 mm) |
| Depth | 4.8" (122 mm) |
| Height | 0.591" (15 mm) |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
