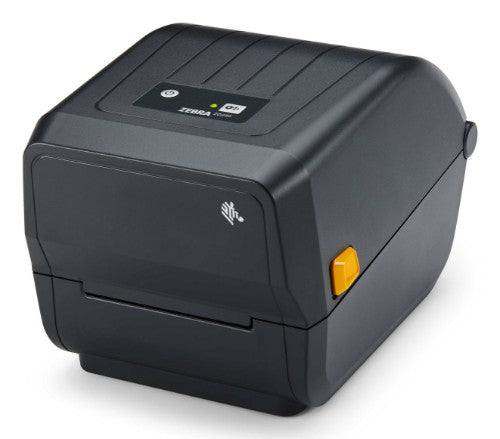

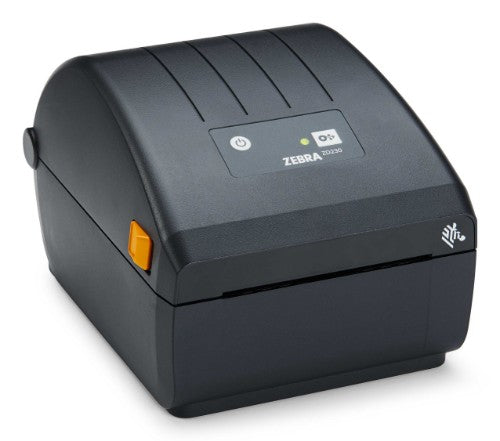

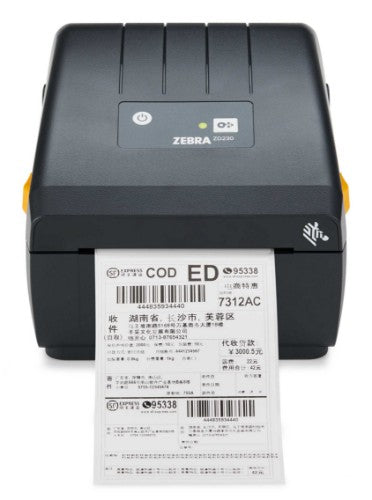

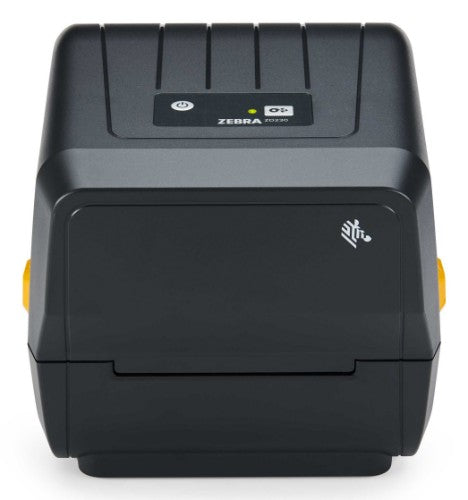

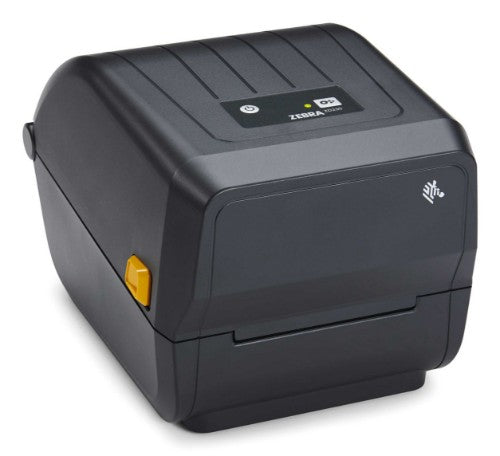

Zebra ZD230 label printer Direct thermal 203 x 203 DPI 152 mm/sec Wired & Wireless Bluetooth

203 dpi/8 dots per mm, 128 MB Flash, 128 MB SDRAM, 104 mm max, US Power Cord, USB, Bluetooth 4

Description

Get more: Extra features, quality construction, exceptional value
Not all printers are created equally, especially basic models. To reduce costs, value printers are often constructed using less expensive components and fewer features. Many fail to perform under more demanding duty cycles, create delays and downtime for repairs, and require replacement after only a few years of use. Instead of conserving budget, customers are left with greater expense and hassle. Zebra does it differently. Meet the exception. The ZD230 desktop printer gives you extra features and reliable operation at an affordable price—both at the point of purchase and across the entire lifecycle. Engineered with Zebra quality, it boasts a dual-wall construction. And, it offers wireless connectivity for networked, remote printing. Built to last for years, the ZD230 provides an outstanding return on your investment.

Get Printing Quickly
The ZD230 is simple to install and begin printing—right out of the box. Easily replace legacy printers using ZPL, EPL or non-Zebra command languages. USB, Ethernet, Wi-Fiᵀᴹ and Bluetooth™ connectivity options enable universal interoperability. The ZD230 can accommodate a 300 meter ribbon roll to lengthen the time between media changes. And, Zebra’s OpenACCESS™ clamshell design expedites media replacement. It’s also ENERGY STAR™ qualified to reduce your operational expenses.

Just the Features You Need
This 4-inch printer produces labels quickly, up to 6” per second, to keep your workflows moving. Increased memory allows you to store more fonts and graphics. A single LED indicator and single button for feed/pause make it easy to operate and identify printer status. Choose from direct thermal or thermal transfer models, and add an optional factory-installed peeler or cutter. The ZD230 features Print DNAᵀᴹ Basic, a core set of software applications and capabilities to deliver a cost-effective and dependable print experience. It is ideal for use in transportation and logistics, light manufacturing, retail and healthcare applications to print a variety of tickets, tags, passes, labels and receipts.

Backed by Zebra’s Worldwide Service and Support
Access repair support services, live-agent technical support and software support quickly anywhere around the globe through Zebra and its trusted network of more than 10,000 partners. Zebra OneCare™ provides enhanced coverage that exceeds standard warranty for normal wear and tear, priority repair turnaround times at the depot and more—all for a tiny fraction of the cost of a single repair.

Consistently Exceptional Zebra Certified Supplies
Printing supplies can impact everything from printhead lifespan to operational efficiency. That’s why we design,
produce and rigorously pretest our own line of thermal printing supplies to ensure consistent, optimized performance in your Zebra printer—and peace of mind for you. For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies.

Specifications

Print quality
Maximum resolution	203 x 203 DPI
Maximum printing width	4.09" (10.4 cm)
Printing
Colour	No
Print speed	152 mm/sec
Maximum resolution	203 x 203 DPI
Maximum printing width	4.09" (10.4 cm)
Print technology	Direct thermal
Number of printable dots	8 dot
Network
Wi-Fi	No
Memory
Internal memory	128 MB
Flash memory	128 MB
Paper handling
Supported paper width	25.4 - 112 mm
Ribbon width	4.29" (10.9 cm)
Ribbon length	11811" (300 m)
Media thickness	0.08 - 0.1905 mm
Maximum roll diameter	5" (12.7 cm)
Maximum label width	4.41" (11.2 cm)
Maximum label length	39" (0.991 m)
Core diameter	5" (12.7 cm)
Ports & interfaces
Connectivity technology	Wired & Wireless
Bluetooth version	4.1
Bluetooth	Yes
Wi-Fi	No
USB port	Yes
Performance
Built-in barcodes	1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Ribbon width	4.29" (10.9 cm)
Ribbon length	11811" (300 m)
Internal memory	128 MB
Flash memory	128 MB
Page description languages	EPL, ZPL
Design
Product colour	Black
Built-in display	No
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Technical details
Product colour	Black
Built-in barcodes	1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Ribbon width	4.29" (10.9 cm)
Ribbon length	11811" (300 m)
Maximum label width	4.41" (11.2 cm)
Maximum label length	39" (0.991 m)
Sustainability certificates	ENERGY STAR
Operational conditions
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	4.4 - 41 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	6.93" (176 mm)
Depth	8.66" (220 mm)
Height	5.94" (151 mm)
Weight	2.43 lbs (1.1 kg)
Packaging content
Cables included	AC
