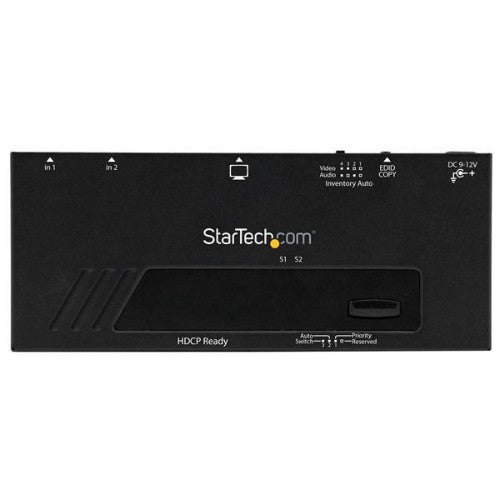

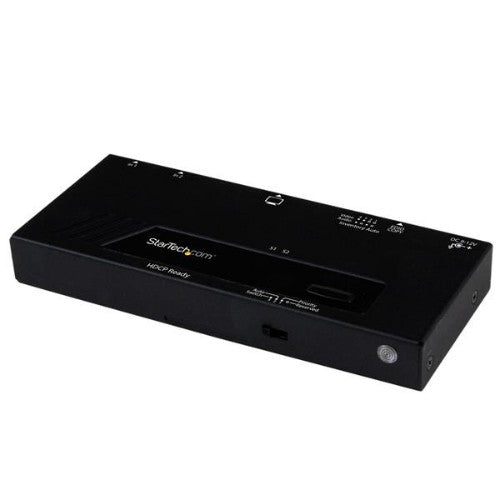

StarTech.com VS221HDQ video switch HDMI

StarTech 2 Port HDMI Switch w/ Automatic and Priority Switching - 2 In 1 Out HDMI Selector with Automatic Priority Switching – 1080p , TAA (VS221HDQ)

Key Features

• Auto switching
• Priority switching
• Built-in manual control console
• EDID emulation
• Video connection emulation
• Support for video resolution up to 1080p
• Mounting hardware included

Description

Discover hassle-free HDMI connection and automatic video port selection with high-definition picture quality

Save time and hassle by automatically switching between your HDMI audio/video sources, using the VS221HDQ 2-Port HDMI Auto Switcher. This easy-to-use HDMI switch ensures seamless transition while switching video sources, with EDID copy maintaining your video resolution.

Seamless Signal Selection

Ensure seamless transition while switching video sources, with EDID copy maintaining native resolution with support for 1080p. Video connection emulation ensures the settings on any connected computers are not disrupted while switching to a different video source.

Effortless Control

Save time by connecting two HDMI video source devices to your HDMI display instead of manually connecting individual cables. Mounting hardware is also included for a tidy, professional installation.

Versatile Switching Options

Enjoy hassle-free operation with three different switching modes:

Automatic port selection : Enables your most recently activated video source to be displayed automatically.

Priority port selection : Prioritizes input number two above input number one. If the video source connected to input number two is activated that source will be displayed.

Manual port selection : Enables you to manually select your HDMI source with easy-to-use front panel buttons.

This product is TAA compliant and backed by a Startech.com 2 warranty with lifetime technical support

Specifications

Ports & interfaces
Video port type	HDMI
HDMI ports quantity	3
Number of HDMI outputs	2
HDMI in	1
Features
Audio output channels	7.1 channels
Product colour	Black
Supported video modes	1080p, 720p
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Rack mounting	Yes
Plug and Play	Yes
Maximum resolution	1920 x 1200 pixels
Maximum operating distance	393.7" (10 m)
Material	Aluminum, Plastic
LED indicators	Yes
HDCP	Yes
Extended display identification data (EDID)	Yes
Power
AC adapter input current	0.6 A
AC adapter output voltage	12 V
AC adapter output current	1.5 A
Power plug type	Type M
Power consumption (typical)	18 W
AC input voltage	100 - 240 V
Certificates
Certification	CE, FCC, TAA, REACH
Weight & dimensions
Width	2.56" (65 mm)
Height	0.787" (20 mm)
Depth	6.14" (156 mm)
Weight	10.2 oz (290 g)
Packaging data
Package width	11.7" (296 mm)
Package height	2.95" (75 mm)
Package depth	7.76" (197 mm)
Package weight	30.1 oz (853 g)

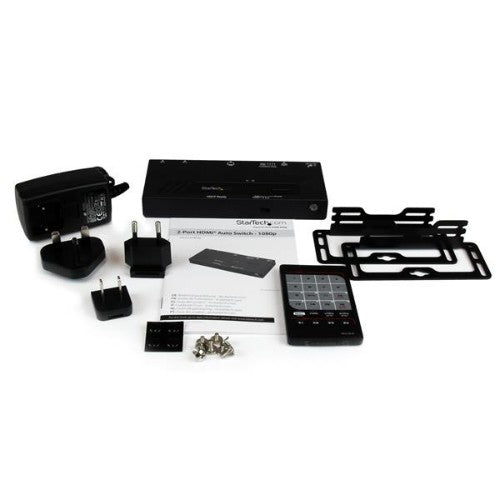

Packaging content
Plug adapter type	NA, EU, UK, AU
Manual	Yes
Remote control included	Yes
Mounting kit	Yes
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80%
Technical details
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Logistics data
Products per master (outer) case	12 pc(s)
Master (outer) case width	17.9" (454 mm)
Master (outer) case length	16.5" (418 mm)
Master (outer) case height	13.3" (338 mm)
Harmonized System (HS) code	85176990
