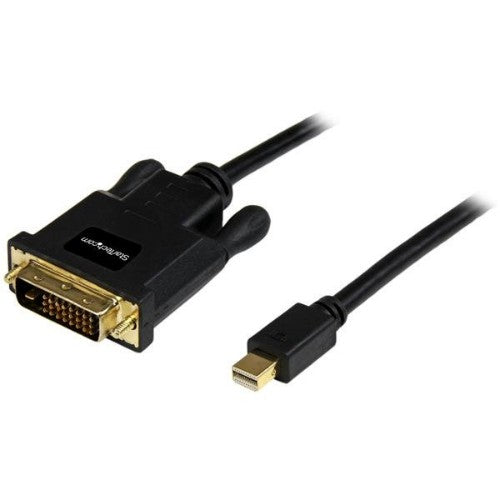

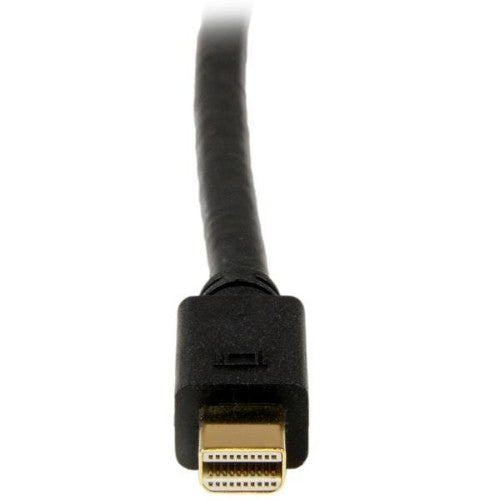

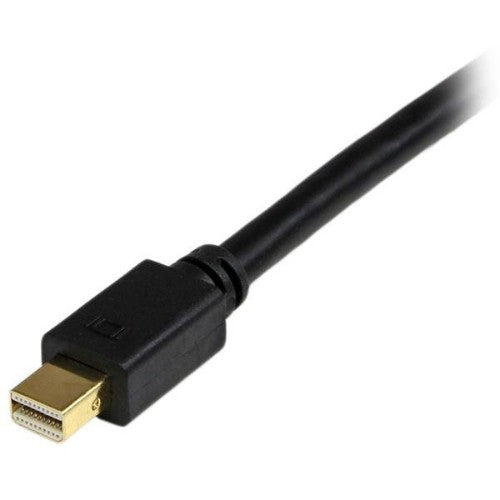

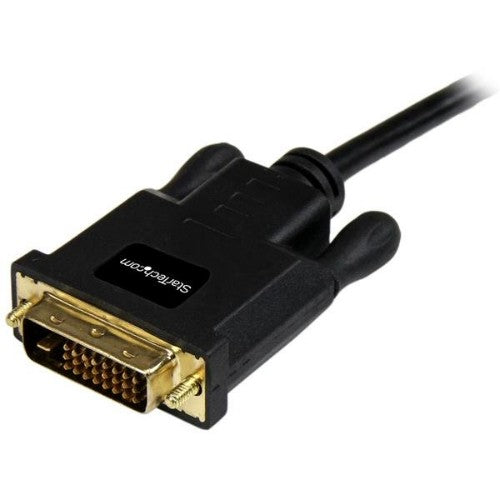

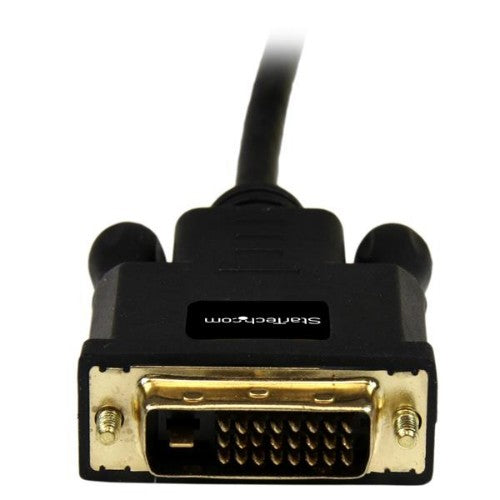

StarTech.com MDP2DVIMM6B video cable adapter 70.9" (1.8 m) mini DisplayPort DVI-D Black

StarTech 6ft (1.8m) Mini DisplayPort to DVI Cable - Mini DP to DVI Adapter Cable - 1080p Video - Passive mDP 1.2 to DVI-D Single Link - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor (MDP2DVIMM6B)

Key Features

• MINI DISPLAYPORT TO DVI CABLE: 6ft (1.8m) Mini DisplayPort 1.2 (HBR2) to DVI-D (digital only) single-link cable connects a DVI display / 1080p 60Hz or 4K 30Hz (monitor w/ HDMI clock rate); EDID pass-through ensures compatibility between source & display
• HOST COMPATIBILITY: Passive video converter supports mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
• INTEGRATED DISPLAY CABLE: Mini DisplayPort to DVI adapter cable has slim & flexible design with adapter chip built into VGA connector reducing clutter & providing a tidy install in the office, boardroom or home office
• INCREASE PRODUCTIVITY: Connect a DVI monitor or projector, or add a second display to your workstation using the mDP to VGA display adapter cable / Supports DVI screw locking cable to prevent accidental disconnection / mDP male to DVI male
• EASY TO USE: With no software or drivers required, the Mini DP to DVI converter cable/cord works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like TB1/TB2 MacBooks with Mini DisplayPort

Description

Connect a DVI display to a Mini DisplayPort-equipped PC or MAC® over a 6 foot distance – Black

The MDP2DVIMM6B Mini DisplayPort to DVI Adapter Cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.

The adapter cable is 6 feet (1.8 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display with no additional cabling required.

Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).

MDP2DVIMM6B is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

Specifications

Features
Converter type	Passive
Chipset	NXP - 3361
DisplayPort version	1.2
Product colour	Black
Cable length	70.9" (1.8 m)
Connector 1	mini DisplayPort
Connector 2	DVI-D
Connector 1 gender	Male
Connector 2 gender	Male
Maximum resolution	1920 x 1200 pixels
Supported video modes	1080p
Plug and Play	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Dual Link DVI	No
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	40 - 85%
Certificates
Compliance certificates	CE, RoHS
Other features
Width	1.57" (40 mm)
Height	0.591" (15 mm)
Depth	70.9" (1800 mm)
Weight & dimensions
Width	1.57" (40 mm)
Height	0.591" (15 mm)
Depth	70.9" (1800 mm)
Weight	3.57 oz (101.3 g)
Package width	7.83" (199 mm)
Package depth	6.34" (161 mm)
Package height	0.945" (24 mm)
Package weight	4.41 oz (125 g)
Packaging data
Package width	7.83" (199 mm)
Package depth	6.34" (161 mm)
Package height	0.945" (24 mm)
Package weight	4.41 oz (125 g)
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	CE, RoHS
Logistics data
Master (outer) case width	18" (456 mm)
Master (outer) case length	16.8" (426 mm)
Master (outer) case height	16.7" (424 mm)
Products per master (outer) case	150 pc(s)
Harmonized System (HS) code	84733080
