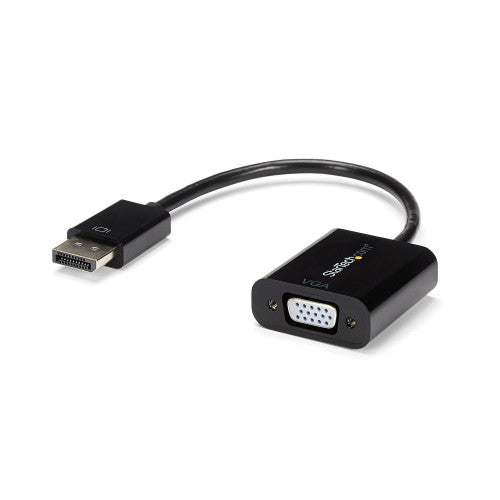

StarTech.com DP2VGA3 video cable adapter 3.94" (0.1 m) DisplayPort VGA (D-Sub) Black

StarTech DisplayPort to VGA Adapter - Active DP to VGA Converter - 1080p Video - DP/DP++ Source to VGA Monitor Cable Adapter - DP to VGA Adapter Dongle Digital to Analog - DP 1.2 to VGA (DP2VGA3)

Key Features

• DISPLAYPORT TO VGA ADAPTER: DisplayPort 1.2 (HBR2) adapter connects a VGA display or projector supporting 2048x1152, 1920x1200 & 1920x1080 (1080p) at 60Hz; EDID & DDC pass-through ensure compatibility between source & display / 3.9" (10cm) attached cable
• COMPATIBILITY: Active digital to analog converter supports DP or DP++ source w/ standard DP connector incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
• CONNECT TO A PRIMARY OR SECONDARY DISPLAY: Connect a VGA monitor or projector, or add a second display to your workstation using this DP to VGA video adapter; Sleek and compact design makes it easy to travel to and from office or home
• SCREW LOCKING VGA: Non-latching DP connector is easy to disconnect from a hard to reach source / Supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection / Tested with VGA cables up to 25 ft long
• EASY TO USE: With no software or drivers required, the DP to VGA adapter dongle works with any OS including Windows, Ubuntu and macOS; DisplayPort male to VGA female / Available in a 5-pack (DP2VGA3X5)

Description

DisplayPort 1.2 | Multi-Monitor Solution | Plug & Play Connectivity

This DisplayPort to VGA adapter lets you connect your DisplayPort equipped laptop or desktop computer to a VGA monitor or projector, eliminating the expense of upgrading to a DP display.

Crystal-Clear Picture Quality

With support for video resolutions up to 1920x1200 or 1080p, you’ll be surprised at the picture quality the adapter provides, even when connected to an older VGA monitor, projector or television. The adapter harnesses the video capabilities built into your DisplayPort connection to deliver every detail in stunning high-definition.

Works with Your Legacy VGA Displays & Projectors

This DisplayPort video adapter makes your DP computer fully compatible with legacy VGA monitors or projectors in your home or around the office. You can use the converter to either connect to an existing VGA display or add a secondary monitor to your workstation, helping to boost your productivity.

Designed for Maximum Portability

This DisplayPort to VGA dongle maximizes portability with a compact, lightweight design, making it the perfect travel accessory to carry with your DisplayPort devices. The ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office, delivering HD video presentations on-the-go or even staying connected at home.

For added convenience, this DP to VGA converter supports plug-and-play connectivity and requires no additional software or drivers for a hassle-free setup.

DP2VGA3 is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Specifications

Features
Converter type	Active video converter
Country of origin	China
Chipset	Analogic ANX9833
DisplayPort version	1.2
Product colour	Black
Cable length	3.94" (0.1 m)
Connector 1	DisplayPort
Connector 2	VGA (D-Sub)
Connector 1 gender	Male
Connector 2 gender	Female
Maximum resolution	2048 x 1152 pixels
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1152
Supported video modes	720p, 1080p
Plug and Play	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	10 - 85%
Certificates
Compliance certificates	CE, RoHS
Technical details
Country of origin	China
Harmonized System (HS) code	84733080
Compliance certificates	CE, RoHS
Other features
Width	1.46" (37 mm)
Height	0.551" (14 mm)
Depth	9.06" (230 mm)
Weight & dimensions
Width	1.46" (37 mm)
Height	0.551" (14 mm)
Depth	9.06" (230 mm)
Weight	1.13 oz (32 g)
Package width	7.8" (198 mm)
Package depth	8.03" (204 mm)
Package height	0.709" (18 mm)
Package weight	1.45 oz (41 g)
Packaging data
Package width	7.8" (198 mm)
Package depth	8.03" (204 mm)
Package height	0.709" (18 mm)
Package weight	1.45 oz (41 g)
Logistics data
Master (outer) case width	20.1" (510 mm)
Master (outer) case length	13.1" (333 mm)
Master (outer) case height	8.74" (222 mm)
Products per master (outer) case	150 pc(s)
Harmonized System (HS) code	84733080
