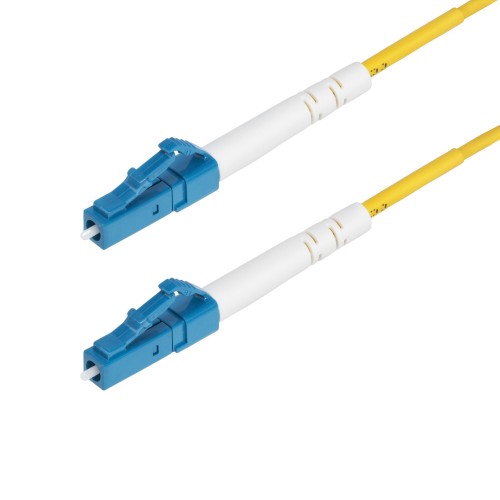

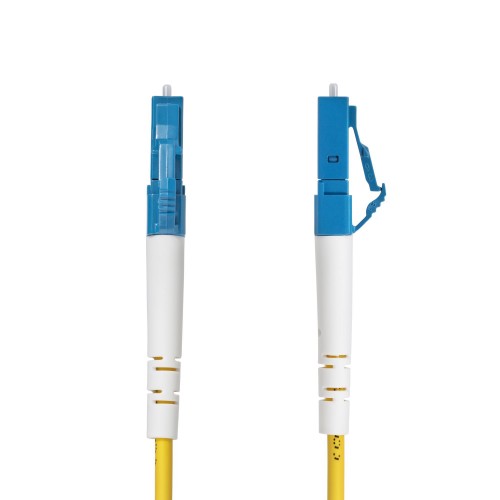

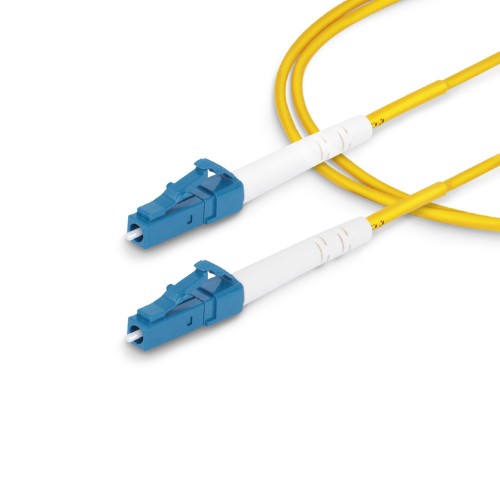

StarTech.com SPSMLCLC-OS2-2M InfiniBand/fibre optic cable 78.7" (2 m) LC LC/UPC Yellow

StarTech 2m (6.6ft) LC to LC (UPC) OS2 Single Mode Simplex Fiber Optic Cable, 9/125, 40G/100G, LSZH Fiber Jumper Cord

Key Features

• SIMPLEX OS2 CABLE: Single Mode Simplex OS2 Fiber Cable is immune to EMI and optimized for 40G/100Gbps networks; Supports bi-directional (BiDi) transmission over a single fiber; Ideal for space-constrained installations requiring minimal fiber count
• QUALITY CONSTRUCTION: LC/LC-UPC ends for improved return loss over PC polish; Bend Insensitive fiber core housed in Aramid-reinforced jacket for a loaded bend radius of 10mm
• SAFETY AND RELIABILITY: Individually tested for guaranteed performance; Test report included; LSZH jacket emits low toxic fumes if combusted; Safe for enclosed/poorly ventilated spaces; Attenuation value under 0.35dB/km outperforms industry standards
• COMPATIBILITY: Simplex Single Mode Fiber Patch Cord supports 40G/100G networks; Backward compatible with OS1; High micro-bend resistance facilitates tight bends in complex installations; Ideal for point-to-point setups or single-fiber NICs and SFPs
• SPECS: 2 meter (6.6 foot); OS2 Single Mode; LC/LC (UPC) Simplex; 100Gbps; 9/125um; 1260-1625nm Laser Optimized; Insertion Loss: ≤0.3dB; Return Loss: ≥55dB; Cable OD: 2mm; Bend Radius: 10mm (0.39in) loaded/unloaded

Description

Enhance the performance capabilities of CWDM applications over an OS2 fiber network

OS2 LC to LC Single Mode Simplex Fiber Optic Patch cable facilitates connectivity across 40G/100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.

Compatibility

Connect to single-fiber networking devices including simplex patch panels, SFP transceivers, and fiber NICs. This 9/125µm OS2 simplex single mode fiber patch cord is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.

Engineered for Optimal Performance

Precision-manufactured ceramic ferrules ensure accurate fiber alignment for an insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished LC to LC fiber ends greatly improve return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.

LSZH Cable Jacket

Housed in a Low-Smoke Zero-Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.

Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability.

Specifications

Features
Fibre optic type	OS2
Return loss	55 dB
Jacket material	Polypropylene, Low smoke zero halogen (LSZH)
Fiber mode structure	Single-mode
Connector 1	LC
Connector 2	LC
Cable type	LC/UPC
Cable length	78.7" (2 m)
Core diameter	9 µm
Cladding diameter	125 µm
Insertion loss	0.3 dB
Data transfer rate	100 Gbit/s
Wavelengths supported	1260,1280,1300,1310,1383,1490,1550,1590,1600,1625 nm
Product colour	Yellow
Connector 2 gender	Male
Connector 1 gender	Male
Connector polish type	UPC
Bending radius	0.394" (1 cm)
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Bending radius	0.394" (1 cm)
Cable diameter	0.0787" (2 mm)
Cable length	78.7" (2 m)
Package width	7.83" (199 mm)
Package depth	7.72" (196 mm)
Package height	0.433" (11 mm)
Package weight	0.557 oz (15.8 g)
Packaging data
Package width	7.83" (199 mm)
Package depth	7.72" (196 mm)
Package height	0.433" (11 mm)
Package weight	0.557 oz (15.8 g)
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Technical details
Jacket material	Polypropylene, Low smoke zero halogen (LSZH)
Fiber mode structure	Single-mode
Connector 1	LC
Connector 2	LC
Cable type	LC/UPC
Cable length	78.7" (2 m)
Core diameter	9 µm
Cladding diameter	125 µm
Insertion loss	0.3 dB
Attenuation (max)	0.35 dB/km
Data transmission
Data transfer rate	100 Gbit/s
Logistics data
Quantity per pack	1 pc(s)
Master (outer) case width	15" (380 mm)
Master (outer) case length	15" (380 mm)
Master (outer) case height	11" (280 mm)
Products per master (outer) case	450 pc(s)
Other features
Attenuation (max)	0.35 dB/km
