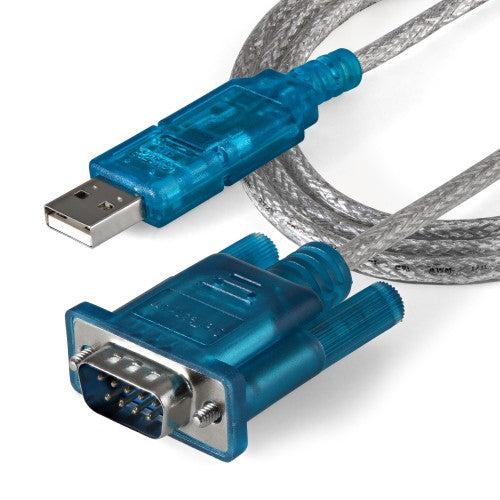

StarTech.com ICUSB232SM3 cable gender changer DB-9 USB 2.0 A Blue, Transparent

StarTech 3ft (91cm) 1-Port USB to RS232 DB9 Serial Adapter Cable, USB to Serial Adapter Cable - M/M

Key Features

• ADD LEGACY FUNCTIONALITY: The USB to Serial (DB9) adapter lets you connect DB9 RS232 serial devices to your device through an available USB port, as though the computer offered a DB9M connector
• UNIQUE CONVERTER CHIP: Unlike typical USB to serial cables where the conversion takes place at the DB9 end, this USB to serial RS232 adapter features a converter chip on the USB end
• OVERCOME DISTANCE LIMITATIONS: Converting at the USB source overcomes the 15ft (4.6m) technical limit of USB cables; this USB to RS232 adapter cable allows for a much greater serial DB-9 extension cable
• MAXIMUM COMPATIBILITY: Simple to install and use, this USB serial adapter is a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals
• TECH SPECS: 3 feet (91 cm); Prolific PL2303GC Chipset; Max Baud Rate: 921.6 Kbps; 192 Bytes FIFO

Description

Add an RS232 serial port to your laptop or desktop computer through USB

The ICUSB232SM3 3ft USB to Serial Adapter Cable lets you connect DB9 RS232 serial devices to your Mac® or PC laptop or desktop computer through an available USB port, as though the computer offered an onboard DB9M connector.
Unlike typical USB to serial converter cables where the conversion takes place at the DB9 end, the StarTech.com ICUSB232SM3 features a converter chip on the USB end. Converting at the USB source overcomes the 15ft. technical limit of USB cables, allowing for a much greater serial DB-9 extension cable (50ft.+ is possible depending on the application) if necessary.
Simple to install and use, this USB to Serial adapter is a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.

Specifications

Ports & interfaces
Connector 2	USB 2.0 A
Connector 1	DB-9
Cable length	35.4" (0.9 m)
Connector 2 gender	Male
Connector 1 gender	Male
Performance
Housing material	Plastic
Chipset	Prolific - PL2303HXD
Baud rate	921.6 Kbit/s
FIFO (First In, First Out)	192 B
Compatible operating systems	Windows CE 4.2, 5.2, Vista, 7, 8, 8.1, 10, 11 Windows Server 2003, 2008 R2, 2012, 2016, 2019 macOS 10.6 to 10.15, 11.0, 12.0, 13.0 Linux 2.4.x+
Product colour	Blue, Transparent
Certification	CE, FCC
Operational conditions
Storage temperature (T-T)	-20 - 80 °C
Relative humidity	0 - 65%
Operating temperature (T-T)	0 - 60 °C
Certificates
Certification	CE, FCC
Compliance certificates	RoHS
Weight & dimensions
Width	1.38" (35 mm)
Weight	1.98 oz (56 g)
Height	0.591" (15 mm)
Depth	36" (914 mm)
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	7.91" (201 mm)
Package height	1.3" (33 mm)
Package depth	4.33" (110 mm)
Package weight	2.47 oz (70 g)
Technical details
Product colour	Blue, Transparent
Cable length	35.4" (0.9 m)
Housing material	Plastic
Compliance certificates	RoHS
Design
Housing material	Plastic
Product colour	Blue, Transparent
Certification	CE, FCC
Cable length	35.4" (0.9 m)
System requirements
Compatible operating systems	Windows CE 4.2, 5.2, Vista, 7, 8, 8.1, 10, 11 Windows Server 2003, 2008 R2, 2012, 2016, 2019 macOS 10.6 to 10.15, 11.0, 12.0, 13.0 Linux 2.4.x+
Logistics data
Products per master (outer) case	100 pc(s)
Master (outer) case width	23" (583 mm)
Master (outer) case length	14.4" (367 mm)
Master (outer) case height	11.9" (303 mm)
