HPE

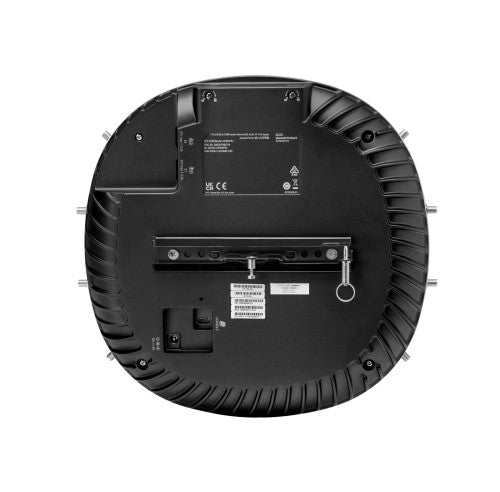

HPE Aruba Networking AP-754 (US) Tri Radio 4x4 Wi-Fi 7 External Antennas Campus Access Point
SKU:
S1G75A
Condition: New
$2,441.34 USD
Pickup currently not available
✔
Factory-Sealed
Sourced from authorized distributors
✔
Manufacturer Warranty
Terms set by the brand
✔
Enterprise Expertise
Business Procurement
Free standard shipping over $2,500
Delivery estimates are based on product availability, destination, fulfillment method, and qualifying order requirements. 30-day returns; 20% restocking fee on non-defective returns. Shipping policy · Return policy
Loading documents...
Need Help Before You Order?
Check compatibility, availability, or volume pricing with an IT procurement specialist.
Enterprise IT Procurement Built for Business
Source servers, networking, storage, workstations, and business technology through established distribution channels with dedicated procurement support.
1,700+
Business Accounts Supported
32,000+
Enterprise Hardware Products Available
Fast, Reliable Procurement Support
Reach out for responsive product availability, part numbers, pricing, and additional hardware needs.
4–8 Hrs
Typical RFQ Response Target
Multi-Vendor
Hardware Sourcing
Keep Your IT Projects Moving
For business hardware purchases and larger deployments, get shipment information, order coordination, and delivery support.
Manufacturer Warranty Coverage
Eligible products include warranty coverage provided by the original manufacturer according to applicable brand and product terms.
Brand Warranty TermsFactory-Sealed HardwareOEM Support Eligibility
A Trusted Source for Enterprise Hardware
Source factory-sealed IT hardware through established technology distribution channels, with support for individual purchases, BOM requests, and larger business requirements.
112+
Technology Brands
32,000+
Hardware Products Available
Key Features
HPE Aruba Networking AP-754 (US) Tri Radio 4x4 Wi-Fi 7 External Antennas Campus Access Point, 2.4 GHz, 5 GHz, 6 GHz, 10000 Mbit/s
With three 4x4 MIMO radios (2.4 GHz, 5 GHz, and 6 GHz), the series delivers up to 18.7 Gbps maximum tri-band aggregate data rate and is capable of up to 28.8 Gbps maximum aggregate data rate using optional dual 5 GHz and 6 GHz radio modes.
Featuring high availability with two 10GbE ports for hitless failover for both data and power, allowing these dual ports to provide business continuity for mission-critical applications with flexibility to support speeds of 1, 2.5, 5, or 10 Gbps (or 100 Mbps).
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the access point where it receives the good radio signal.
Patented UTB filtering enables enterprises to take advantage of the high end of 5 GHz with the lower end of 6 GHz without creating coverage gaps or islands.
MACsec-capable 10GbE port extends wired Ethernet protection to the access point.
It offers stronger encryption and authentication with WPA3, protected credential/key storage for guest access with Enhanced Open (OWE), and user and IoT access policy enforcement firewalls (PFEs).
The APs simplify policy enforcement by using the PEF to encapsulate all traffic from the access point to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, the APs include an installed trusted platform module (TPM) for protected storage of credentials, keys, and boot code.
It provides two built-in Bluetooth 5.4 and 802.15.4 radios for Zigbee support to simplify deploying and managing IoT-based location services, asset tracking services, security solutions, and IoT sensors. Two USB port extensions provide connectivity to a range of IoT devices.
Advanced IoT Coexistence (AIC) feature uses built-in filtering to allow Wi-Fi and BLE/Zigbee radios to operate at greater capacity without the impact of interference.
HPE Aruba Networking Central IoT operations unifies visibility of IT and OT infrastructure within the network health dashboard by extending network monitoring and insights to BLE, Zigbee, and other non-IP IoT devices to help non-Wi-Fi device onboarding and data collection.
HPE Aruba Networking Central client insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
It offers precision locationing with the support of FTM 802.11az for sub-1 meter accuracy and built-in GNSS receivers for high-accuracy indoor location measurements.
It has built-in barometric sensor for altitude locationing within multi-story buildings that provides floor-level mappings.
AI-powered dynamic power save mode enables the HPE Aruba Networking 750 Series Campus Access Points to automatically wake up at a schedule when connectivity demand arises, reducing power demands and lowering the energy footprint to align with the organization's sustainability initiatives.
Target wake time (TWT) establishes a schedule for when clients need to communicate with an AP to help improve client power savings and reduce airtime contention. Intelligent power monitoring (IPM) provides energy consumption insights as APs continuously monitor and report hardware energy usage.
Key Features
- Wi‑Fi 7 (802.11be) brings multi‑link operation (MLO) for channel aggregation, 4K QAM for higher throughput and lower latency, and unlocks the 6 GHz band to more than double the available capacity
- Three 4x4 MIMO radios provide tri‑band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver 18.7 Gbps maximum tri‑band aggregate data rate
- Capable of up to 28.8 Gbps maximum aggregate data rate using optional dual 5 GHz and 6 GHz radio modes
- Up to three 320 MHz channels in 6 GHz support low‑latency, bandwidth‑hungry applications like high‑definition video and augmented reality/virtual reality applications
- Patented Ultra Tri‑Band (UTB) filtering enables 5 GHz and 6 GHz to operate without restrictions or interference
- High availability with dual HPE Smart Rate ports for redundant Ethernet and power. Configurable to 1, 2.5, 5, or 10 Gbps (or 100 Mbps)
- IoT‑ready platform with two integrated Bluetooth 6 and 802.15.4/ Zigbee radios and two USB‑port extensions
- Built in GNSS receiver, barometric pressure sensor, and intelligent software enable APs to self‑locate and act as reference points for accurate indoor location measurements
- MACsec support extends wired Ethernet protection to the AP
- Offered as optional eco‑friendly 5‑packs
- AI‑powered dynamic power save mode helps reduce energy use
Reasons To Buy
Flagship Wi-Fi 7 Performance
Based on the 802.11be standard, the HPE Aruba Networking 750 Series Campus Access Points are designed to take advantage of the 6 GHz band through three dedicated radios, which translates into far greater speeds, wider channels for multigigabit traffic, and less interference.With three 4x4 MIMO radios (2.4 GHz, 5 GHz, and 6 GHz), the series delivers up to 18.7 Gbps maximum tri-band aggregate data rate and is capable of up to 28.8 Gbps maximum aggregate data rate using optional dual 5 GHz and 6 GHz radio modes.
Featuring high availability with two 10GbE ports for hitless failover for both data and power, allowing these dual ports to provide business continuity for mission-critical applications with flexibility to support speeds of 1, 2.5, 5, or 10 Gbps (or 100 Mbps).
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the access point where it receives the good radio signal.
Patented UTB filtering enables enterprises to take advantage of the high end of 5 GHz with the lower end of 6 GHz without creating coverage gaps or islands.
Simplified Access with Enhanced Security
The HPE Aruba Networking 750 Series Campus Access Points offer enhanced security with dynamic segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.MACsec-capable 10GbE port extends wired Ethernet protection to the access point.
It offers stronger encryption and authentication with WPA3, protected credential/key storage for guest access with Enhanced Open (OWE), and user and IoT access policy enforcement firewalls (PFEs).
The APs simplify policy enforcement by using the PEF to encapsulate all traffic from the access point to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, the APs include an installed trusted platform module (TPM) for protected storage of credentials, keys, and boot code.
AP as an IoT Platform
The HPE Aruba Networking 750 Series Campus Access Points can serve as flexible IoT platforms that bolsters network security and provide coverage for a broad range of IoT devices without the need for network overlays.It provides two built-in Bluetooth 5.4 and 802.15.4 radios for Zigbee support to simplify deploying and managing IoT-based location services, asset tracking services, security solutions, and IoT sensors. Two USB port extensions provide connectivity to a range of IoT devices.
Advanced IoT Coexistence (AIC) feature uses built-in filtering to allow Wi-Fi and BLE/Zigbee radios to operate at greater capacity without the impact of interference.
HPE Aruba Networking Central IoT operations unifies visibility of IT and OT infrastructure within the network health dashboard by extending network monitoring and insights to BLE, Zigbee, and other non-IP IoT devices to help non-Wi-Fi device onboarding and data collection.
HPE Aruba Networking Central client insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
Energy Saving and Self-locating
The HPE Aruba Networking 750 Series Campus Access Points help organizations reduce energy consumption and deliver precision indoor location services with the APs that serve as reference points for client devices and other technologies using fine time measurement.It offers precision locationing with the support of FTM 802.11az for sub-1 meter accuracy and built-in GNSS receivers for high-accuracy indoor location measurements.
It has built-in barometric sensor for altitude locationing within multi-story buildings that provides floor-level mappings.
AI-powered dynamic power save mode enables the HPE Aruba Networking 750 Series Campus Access Points to automatically wake up at a schedule when connectivity demand arises, reducing power demands and lowering the energy footprint to align with the organization's sustainability initiatives.
Target wake time (TWT) establishes a schedule for when clients need to communicate with an AP to help improve client power savings and reduce airtime contention. Intelligent power monitoring (IPM) provides energy consumption insights as APs continuously monitor and report hardware energy usage.
Description
HPE Aruba Networking AP-754 (US) Tri Radio 4x4 Wi-Fi 7 External Antennas Campus Access Point. 2.4 GHz, 5 GHz, 6 GHz, Ethernet LAN data rates: 10000 Mbit/s. Power over Ethernet (PoE). Product color: White. Power consumption (max): 51 WSpecifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10000 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Auto MDI/MDI-X | Yes |
| Reset button | Yes |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), 20/40/80/160/320 (6 GHz), and maximum peak data rate 28.8 Gbps |
| Networking standards | IEEE 802.11be, IEEE 802.11mc |
| Ethernet LAN data rates | 10000 Mbit/s |
| Certification | UL2043 plenum rating Wi‐Fi Alliance: Wi‐Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6) |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 10.7.0.0 or later |
| Wireless LAN features | |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), 20/40/80/160/320 (6 GHz), and maximum peak data rate 28.8 Gbps |
| Network | |
| Networking standards | IEEE 802.11be, IEEE 802.11mc |
| Ports & interfaces | |
| I/O ports | E0, E1: Two Ethernet wired network ports (RJ‐45) U0, U1: Two USB 2.0 host interfaces (Type A connector) Serial console interface (proprietary, micro‐B USB physical jack) Kensington security slot |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Features | |
| 6 GHz | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Auto MDI/MDI-X | Yes |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), 20/40/80/160/320 (6 GHz), and maximum peak data rate 28.8 Gbps |
| Networking standards | IEEE 802.11be, IEEE 802.11mc |
| Ethernet LAN data rates | 10000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 1400 Mbit/s |
| Maximum data transfer rate (5 GHz) | 5800 Mbit/s |
| Maximum data transfer rate (6 GHz) | 11500 Mbit/s |
| Bluetooth Low Energy (BLE) | Yes |
| Trusted Platform Module (TPM) | Yes |
| BeamForming | Yes |
| MACsec support | Yes |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 10.7.0.0 or later |
| Management features | |
| Access point management | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Power | |
| Power consumption (max) | 51 W |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 48 V |
| Design | |
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
| Certification | UL2043 plenum rating Wi‐Fi Alliance: Wi‐Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6) |
| Recommended usage | Indoor |
| Antenna | |
| Number of connectors | 8 |
| Antenna type | External |
| Antenna connector type | RP-SMA |
| Antenna direction type | Omni-directional |
| Technical details | |
| Reset button | Yes |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD) |
| Certificates | |
| Certification | UL2043 plenum rating Wi‐Fi Alliance: Wi‐Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6) |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD) |
| Weight & dimensions | |
| Width | 10.2" (260 mm) |
| Depth | 10.2" (260 mm) |
| Weight | 3.37 lbs (1.53 kg) |
| Height | 2.24" (57 mm) |
| Package width | 12.6" (320 mm) |
| Package depth | 12.6" (320 mm) |
| Package height | 3.27" (83 mm) |
| Package weight | 4.7 lbs (2.13 kg) |
| Packaging data | |
| Package width | 12.6" (320 mm) |
| Package depth | 12.6" (320 mm) |
| Package height | 3.27" (83 mm) |
| Package weight | 4.7 lbs (2.13 kg) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| I/O ports | E0, E1: Two Ethernet wired network ports (RJ‐45) U0, U1: Two USB 2.0 host interfaces (Type A connector) Serial console interface (proprietary, micro‐B USB physical jack) Kensington security slot |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| System requirements | |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 10.7.0.0 or later |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
Product Specs
HPE Aruba Networking AP-754 (US) Tri Radio 4x4 Wi-Fi 7 External Antennas Campus Access Point, 2.4 GHz, 5 GHz, 6 GHz, 10000 Mbit/s
With three 4x4 MIMO radios (2.4 GHz, 5 GHz, and 6 GHz), the series delivers up to 18.7 Gbps maximum tri-band aggregate data rate and is capable of up to 28.8 Gbps maximum aggregate data rate using optional dual 5 GHz and 6 GHz radio modes.
Featuring high availability with two 10GbE ports for hitless failover for both data and power, allowing these dual ports to provide business continuity for mission-critical applications with flexibility to support speeds of 1, 2.5, 5, or 10 Gbps (or 100 Mbps).
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the access point where it receives the good radio signal.
Patented UTB filtering enables enterprises to take advantage of the high end of 5 GHz with the lower end of 6 GHz without creating coverage gaps or islands.
MACsec-capable 10GbE port extends wired Ethernet protection to the access point.
It offers stronger encryption and authentication with WPA3, protected credential/key storage for guest access with Enhanced Open (OWE), and user and IoT access policy enforcement firewalls (PFEs).
The APs simplify policy enforcement by using the PEF to encapsulate all traffic from the access point to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, the APs include an installed trusted platform module (TPM) for protected storage of credentials, keys, and boot code.
It provides two built-in Bluetooth 5.4 and 802.15.4 radios for Zigbee support to simplify deploying and managing IoT-based location services, asset tracking services, security solutions, and IoT sensors. Two USB port extensions provide connectivity to a range of IoT devices.
Advanced IoT Coexistence (AIC) feature uses built-in filtering to allow Wi-Fi and BLE/Zigbee radios to operate at greater capacity without the impact of interference.
HPE Aruba Networking Central IoT operations unifies visibility of IT and OT infrastructure within the network health dashboard by extending network monitoring and insights to BLE, Zigbee, and other non-IP IoT devices to help non-Wi-Fi device onboarding and data collection.
HPE Aruba Networking Central client insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
It offers precision locationing with the support of FTM 802.11az for sub-1 meter accuracy and built-in GNSS receivers for high-accuracy indoor location measurements.
It has built-in barometric sensor for altitude locationing within multi-story buildings that provides floor-level mappings.
AI-powered dynamic power save mode enables the HPE Aruba Networking 750 Series Campus Access Points to automatically wake up at a schedule when connectivity demand arises, reducing power demands and lowering the energy footprint to align with the organization's sustainability initiatives.
Target wake time (TWT) establishes a schedule for when clients need to communicate with an AP to help improve client power savings and reduce airtime contention. Intelligent power monitoring (IPM) provides energy consumption insights as APs continuously monitor and report hardware energy usage.
Key Features
- Wi‑Fi 7 (802.11be) brings multi‑link operation (MLO) for channel aggregation, 4K QAM for higher throughput and lower latency, and unlocks the 6 GHz band to more than double the available capacity
- Three 4x4 MIMO radios provide tri‑band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver 18.7 Gbps maximum tri‑band aggregate data rate
- Capable of up to 28.8 Gbps maximum aggregate data rate using optional dual 5 GHz and 6 GHz radio modes
- Up to three 320 MHz channels in 6 GHz support low‑latency, bandwidth‑hungry applications like high‑definition video and augmented reality/virtual reality applications
- Patented Ultra Tri‑Band (UTB) filtering enables 5 GHz and 6 GHz to operate without restrictions or interference
- High availability with dual HPE Smart Rate ports for redundant Ethernet and power. Configurable to 1, 2.5, 5, or 10 Gbps (or 100 Mbps)
- IoT‑ready platform with two integrated Bluetooth 6 and 802.15.4/ Zigbee radios and two USB‑port extensions
- Built in GNSS receiver, barometric pressure sensor, and intelligent software enable APs to self‑locate and act as reference points for accurate indoor location measurements
- MACsec support extends wired Ethernet protection to the AP
- Offered as optional eco‑friendly 5‑packs
- AI‑powered dynamic power save mode helps reduce energy use
Reasons To Buy
Flagship Wi-Fi 7 Performance
Based on the 802.11be standard, the HPE Aruba Networking 750 Series Campus Access Points are designed to take advantage of the 6 GHz band through three dedicated radios, which translates into far greater speeds, wider channels for multigigabit traffic, and less interference.With three 4x4 MIMO radios (2.4 GHz, 5 GHz, and 6 GHz), the series delivers up to 18.7 Gbps maximum tri-band aggregate data rate and is capable of up to 28.8 Gbps maximum aggregate data rate using optional dual 5 GHz and 6 GHz radio modes.
Featuring high availability with two 10GbE ports for hitless failover for both data and power, allowing these dual ports to provide business continuity for mission-critical applications with flexibility to support speeds of 1, 2.5, 5, or 10 Gbps (or 100 Mbps).
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the access point where it receives the good radio signal.
Patented UTB filtering enables enterprises to take advantage of the high end of 5 GHz with the lower end of 6 GHz without creating coverage gaps or islands.
Simplified Access with Enhanced Security
The HPE Aruba Networking 750 Series Campus Access Points offer enhanced security with dynamic segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.MACsec-capable 10GbE port extends wired Ethernet protection to the access point.
It offers stronger encryption and authentication with WPA3, protected credential/key storage for guest access with Enhanced Open (OWE), and user and IoT access policy enforcement firewalls (PFEs).
The APs simplify policy enforcement by using the PEF to encapsulate all traffic from the access point to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, the APs include an installed trusted platform module (TPM) for protected storage of credentials, keys, and boot code.
AP as an IoT Platform
The HPE Aruba Networking 750 Series Campus Access Points can serve as flexible IoT platforms that bolsters network security and provide coverage for a broad range of IoT devices without the need for network overlays.It provides two built-in Bluetooth 5.4 and 802.15.4 radios for Zigbee support to simplify deploying and managing IoT-based location services, asset tracking services, security solutions, and IoT sensors. Two USB port extensions provide connectivity to a range of IoT devices.
Advanced IoT Coexistence (AIC) feature uses built-in filtering to allow Wi-Fi and BLE/Zigbee radios to operate at greater capacity without the impact of interference.
HPE Aruba Networking Central IoT operations unifies visibility of IT and OT infrastructure within the network health dashboard by extending network monitoring and insights to BLE, Zigbee, and other non-IP IoT devices to help non-Wi-Fi device onboarding and data collection.
HPE Aruba Networking Central client insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
Energy Saving and Self-locating
The HPE Aruba Networking 750 Series Campus Access Points help organizations reduce energy consumption and deliver precision indoor location services with the APs that serve as reference points for client devices and other technologies using fine time measurement.It offers precision locationing with the support of FTM 802.11az for sub-1 meter accuracy and built-in GNSS receivers for high-accuracy indoor location measurements.
It has built-in barometric sensor for altitude locationing within multi-story buildings that provides floor-level mappings.
AI-powered dynamic power save mode enables the HPE Aruba Networking 750 Series Campus Access Points to automatically wake up at a schedule when connectivity demand arises, reducing power demands and lowering the energy footprint to align with the organization's sustainability initiatives.
Target wake time (TWT) establishes a schedule for when clients need to communicate with an AP to help improve client power savings and reduce airtime contention. Intelligent power monitoring (IPM) provides energy consumption insights as APs continuously monitor and report hardware energy usage.
Description
HPE Aruba Networking AP-754 (US) Tri Radio 4x4 Wi-Fi 7 External Antennas Campus Access Point. 2.4 GHz, 5 GHz, 6 GHz, Ethernet LAN data rates: 10000 Mbit/s. Power over Ethernet (PoE). Product color: White. Power consumption (max): 51 WSpecifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10000 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Auto MDI/MDI-X | Yes |
| Reset button | Yes |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), 20/40/80/160/320 (6 GHz), and maximum peak data rate 28.8 Gbps |
| Networking standards | IEEE 802.11be, IEEE 802.11mc |
| Ethernet LAN data rates | 10000 Mbit/s |
| Certification | UL2043 plenum rating Wi‐Fi Alliance: Wi‐Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6) |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 10.7.0.0 or later |
| Wireless LAN features | |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), 20/40/80/160/320 (6 GHz), and maximum peak data rate 28.8 Gbps |
| Network | |
| Networking standards | IEEE 802.11be, IEEE 802.11mc |
| Ports & interfaces | |
| I/O ports | E0, E1: Two Ethernet wired network ports (RJ‐45) U0, U1: Two USB 2.0 host interfaces (Type A connector) Serial console interface (proprietary, micro‐B USB physical jack) Kensington security slot |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Features | |
| 6 GHz | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Auto MDI/MDI-X | Yes |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), 20/40/80/160/320 (6 GHz), and maximum peak data rate 28.8 Gbps |
| Networking standards | IEEE 802.11be, IEEE 802.11mc |
| Ethernet LAN data rates | 10000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 1400 Mbit/s |
| Maximum data transfer rate (5 GHz) | 5800 Mbit/s |
| Maximum data transfer rate (6 GHz) | 11500 Mbit/s |
| Bluetooth Low Energy (BLE) | Yes |
| Trusted Platform Module (TPM) | Yes |
| BeamForming | Yes |
| MACsec support | Yes |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 10.7.0.0 or later |
| Management features | |
| Access point management | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Power | |
| Power consumption (max) | 51 W |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 48 V |
| Design | |
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
| Certification | UL2043 plenum rating Wi‐Fi Alliance: Wi‐Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6) |
| Recommended usage | Indoor |
| Antenna | |
| Number of connectors | 8 |
| Antenna type | External |
| Antenna connector type | RP-SMA |
| Antenna direction type | Omni-directional |
| Technical details | |
| Reset button | Yes |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD) |
| Certificates | |
| Certification | UL2043 plenum rating Wi‐Fi Alliance: Wi‐Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6) |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD) |
| Weight & dimensions | |
| Width | 10.2" (260 mm) |
| Depth | 10.2" (260 mm) |
| Weight | 3.37 lbs (1.53 kg) |
| Height | 2.24" (57 mm) |
| Package width | 12.6" (320 mm) |
| Package depth | 12.6" (320 mm) |
| Package height | 3.27" (83 mm) |
| Package weight | 4.7 lbs (2.13 kg) |
| Packaging data | |
| Package width | 12.6" (320 mm) |
| Package depth | 12.6" (320 mm) |
| Package height | 3.27" (83 mm) |
| Package weight | 4.7 lbs (2.13 kg) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| I/O ports | E0, E1: Two Ethernet wired network ports (RJ‐45) U0, U1: Two USB 2.0 host interfaces (Type A connector) Serial console interface (proprietary, micro‐B USB physical jack) Kensington security slot |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| System requirements | |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 10.7.0.0 or later |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
Loading product information from Icecat...
Related products
FAQ
Questions? We're Here to Help.
Can't find what you're looking for? Our team is available through live chat.
Need immediate assistance?
Our sales engineering and accounts team is available Monday through Friday, 9:00 AM to 6:00 PM ET.
Call (315) 930-4535We offer computing hardware, networking equipment, servers and storage, plus power and security products from leading technology brands.
Yes, our team provides pre-sale consultation and post-purchase support to ensure you get the right solutions for your needs.
Return new, undamaged items with all accessories and original packaging within 30 days of delivery. A 20% restocking fee applies to non-defective returns. Defective, damaged or incorrect items are replaced or refunded, with a free return label.
Standard shipping is $25, free on orders over $2,500 in the contiguous US Express is $40, or $350 on orders over $2,500. Alaska and Hawaii ship by air for $85. In-stock orders leave the warehouse within 2-3 business days, standard transit is 5-7 business days and express 1–2 days.
Absolutely! Contact our sales team via live chat, phone, or email to discuss your requirements and receive a customized quote.
Popular Queries
Axiom P90358-B21-AX network transceiver module Fiber optic 100000 Mbit/s QSFP28 918 nm
HP Poly Trio C60 IP Conference Phone for Microsoft Teams Full Radio and PoE-enabled
HP Poly Studio X72 All-In-One Video Bar
Planar Systems URP652 Digital signage flat panel 65" LCD 700 cd/m² 4K Ultra HD Black 24/7
HP Poly Studio X32 All-In-One Video Bar No Power Supply
HP Poly Studio R30 USB Video Bar
HP Poly Studio V72 USB Video Bar
HP Poly Trio C60 IP Conference Phone for Microsoft Teams and PoE-enabled No Radio GSA/TAA
HP Poly Studio X52 All-In-One Video Bar
HP Poly Studio V52 USB Video Bar
Planar Systems URP492-ERO-T Digital signage flat panel 49" LCD 700 cd/m² 4K Ultra HD Black Touchscreen 24/7
Axiom OTR100Q28_ER4F-AX network transceiver module Fiber optic 100000 Mbit/s QSFP28 1309 nm
MAXHUB ND86CMA signage display Digital signage flat panel 86" LED Wi-Fi 450 cd/m² 4K Ultra HD Black
Axiom AXG105203 network transceiver module Fiber optic 100000 Mbit/s QSFP28 918 nm
Axiom OTR100Q28_LR4-AX network transceiver module Fiber optic 100000 Mbit/s QSFP28 1309 nm
View all →
