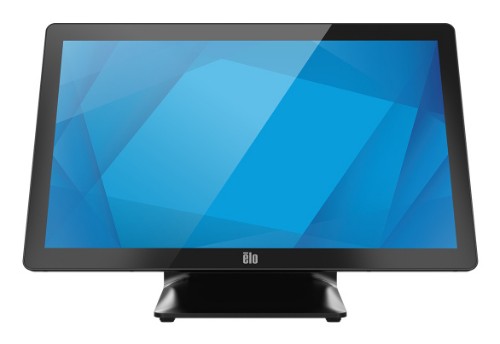

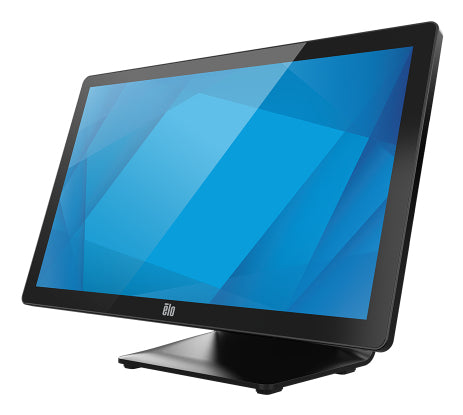

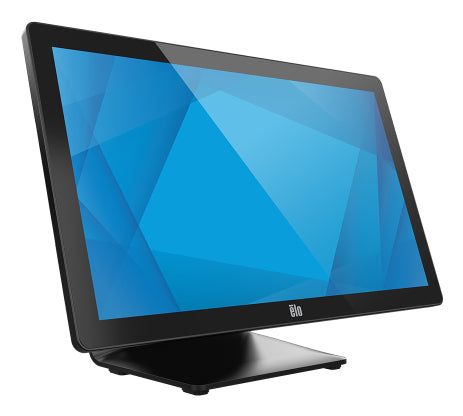

Elo Touch Solutions I-Series E428276 All-in-One PC/workstation Intel® Celeron® 7305L 21.5" 1920 x 1080 pixels Touchscreen 8 GB DDR5-SDRAM 256 GB SSD Windows 11 IoT Enterprise Wi-Fi 6 (802.11ax) Black

21.5" TFT LCD (LED), 1920 x 1080, Celeron, Win10/Win11, 8GB RAM, 256GB SSD, Anti-glare, With Stand

Key Features

• 10-touch TouchPro PCAP
• Fanless, IP54 rated design
• Full HD IPS Touchscreen
• Easy to clean edge-to-edge glass
• 50,000 MTBF

Description

Completely redesigned I‑Series 3 with Intel.

Brilliant and beautiful, interactive platform.

Modular design.
Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I‑Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

Universal VESA Mount
Conveniently mount the I‑Series with the built‑in VESA mount.

Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.

Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 12th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system, the I‑Series 3 delivers the dependability businesses need.

Expand possibilities
with AI processing.
Experience unparalleled AI processing power with the I-Series 3, featuring optional Hailo Neural Processing Engine capable of executing 50 TOPS (trillion operations per second). Available with i7 processor models.

Enhanced connectivity
for all your accessories.

Support
for Linux.
For added flexibility, the I‑Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.

Bridge the gap between
Windows and Android.
Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.

Get peace of mind
with EloCare

Specifications

Display
HD type	Full HD
Panel type	LCD
Display diagonal	21.5"
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
Display brightness	250 cd/m²
Native aspect ratio	16:9
Processor
Processor cache type	Smart Cache
Processor frequency	1.1 GHz
Processor family	Intel® Celeron®
Processor model	7305L
Processor cores	5
Processor threads	5
Processor cache	8 MB
Processor manufacturer	Intel
Processor base power	15 W
Maximum turbo power	28 W
Performance-core Max Turbo Frequency	1.1 GHz
Performance cores	1
Efficient cores	4
Memory
Memory form factor	DIMM/SO-DIMM
Internal memory	8 GB
Memory layout (slots x size)	1 x 8 GB
Maximum internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	4800 MHz
Hard drive
Storage media	SSD
Total storage capacity	256 GB
Storage
Storage media	SSD
Total storage capacity	256 GB
Optical drive type	No
SSD interface	M.2
SSD capacity	256 GB
Number of SSDs installed	1
SSD form factor	M.2
Total SSDs capacity	256 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics
On-board GPU manufacturer	Intel
Audio
Number of speakers	2
Built-in speaker(s)	Yes
RMS rated power	4 W
Camera
Built-in camera	No
Optical drive
Optical drive type	No
Network
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
HDMI ports quantity	0
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
On/off button	Yes
Technical details
Product type	All-in-One PC
Product colour	Black
Compliance certificates	RoHS, cUL, CE, UKCA, RCM, CCC, Norma Oficial Mexicana (NOM), MIC, VCCI, State Radio Regulation of China (SRRC), Federal Communications Commission (FCC)
Security
Trusted Platform Module (TPM)	Yes
Design
Product colour	Black
On/off button	Yes
Panel mounting interface	100 x 100 mm
VESA mounting	Yes
Performance
Product type	All-in-One PC
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 IoT Enterprise
Operating system architecture	64-bit
Power
AC adapter power	180 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	24 V
Multimedia
Built-in camera	No
Weight & dimensions
Width (without stand)	20.7" (525.8 mm)
Height (without stand)	12.6" (321.1 mm)
Weight (without stand)	13.4 lbs (6.1 kg)
Depth (without stand)	1.56" (39.6 mm)
Package width	25.4" (645 mm)
Package depth	20.2" (513 mm)
Package height	12.5" (318 mm)
Package weight	29.1 lbs (13.2 kg)
Width (with stand)	20.7" (525.8 mm)
Depth (with stand)	8.06" (204.6 mm)
Height (with stand)	14.5" (368.7 mm)
Weight (with stand)	22 lbs (10 kg)
Packaging data
Package width	25.4" (645 mm)
Package depth	20.2" (513 mm)
Package height	12.5" (318 mm)
Package weight	29.1 lbs (13.2 kg)
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%
Certificates
Compliance certificates	RoHS, cUL, CE, UKCA, RCM, CCC, Norma Oficial Mexicana (NOM), MIC, VCCI, State Radio Regulation of China (SRRC), Federal Communications Commission (FCC)
Other features
On-board graphics card	Yes
SSD interface	M.2
SSD capacity	256 GB
Processor manufacturer	Intel
Number of SSDs installed	1
