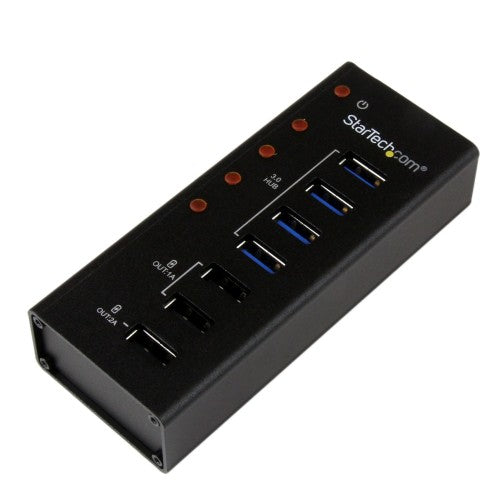

StarTech.com ST4300U3C3 interface hub USB 3.2 Gen 1 (3.1 Gen 1) Type-B 5000 Mbit/s Black

StarTech 7 Port USB 3.0 Charging Hub - 5Gbps - 4 x USB-A, 3 x USB-A Dedicated Charging Ports - Powered Mountable USB Charging Station (ST4300U3C3)

Key Features

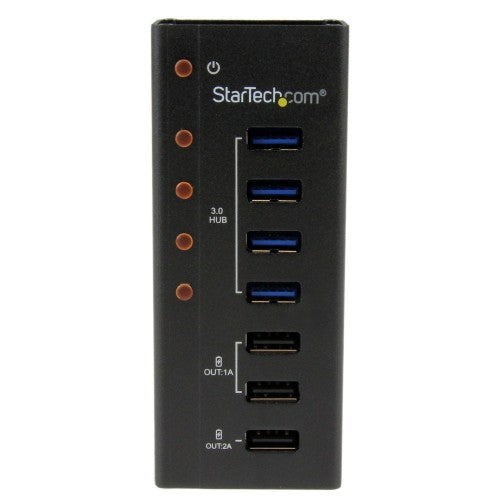

• Provides 4 USB 3.2 Gen 1 hub ports, and 3 dedicated USB charging ports (2 x 1A, 1 x 2A)
• Supports USB Battery Charging Specification 1.2, including Apple® and Samsung Galaxy™ devices
• Compliant with SuperSpeed USB 3.2 Gen 1, with support for up to 5 Gbps
• Backward compatible with USB 2.0 and 1.x devices
• Compact, metal enclosure
• Includes wall-mount bracket

Description

Add 4 USB 3.2 Gen 1 hub ports, plus 3 dedicated USB charging ports (7 total) through a single USB 3.2 Gen 1 host connection

The ST4300U3C3 USB 3.2 Gen 1 Hub enables simultaneous data hub and USB charging functionality by adding three dedicated USB charge ports, as well as four USB 3.2 Gen 1 data ports, for a total of seven ports, all through a single USB 3.2 Gen 1 host connection.

The USB hub ports are compliant with the SuperSpeed USB 3.2 Gen 1 specification, offering data transfer rates up to 5 Gbps, and are backward compatible with USB 2.0 and 1.x specifications.

This externally powered USB hub also integrates 3 dedicated USB charging ports, providing 2 x 1A and 1 x 2A ports, enabling both data hub and USB charging station functionality. Support for USB Battery Charging Specification 1.2 lets you charge most mobile devices, including the Apple® iPhone®, iPad®, Microsoft® Surface™, Samsung Galaxy Tab™ and more.

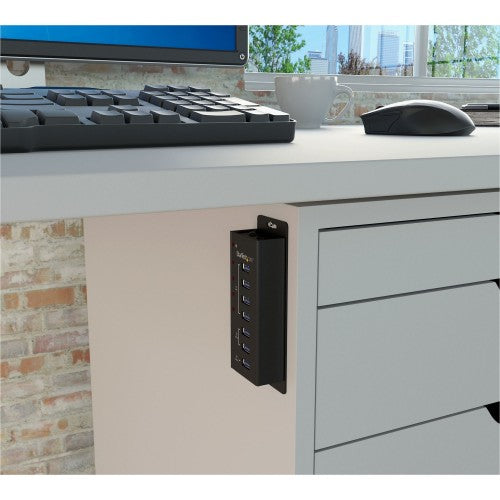

Designed for easy access to the ports when connecting or disconnecting devices, the hub features an upright port orientation, in a compact and durable metal enclosure. For added flexibility, the hub includes a bracket for wall-mounted installations.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces

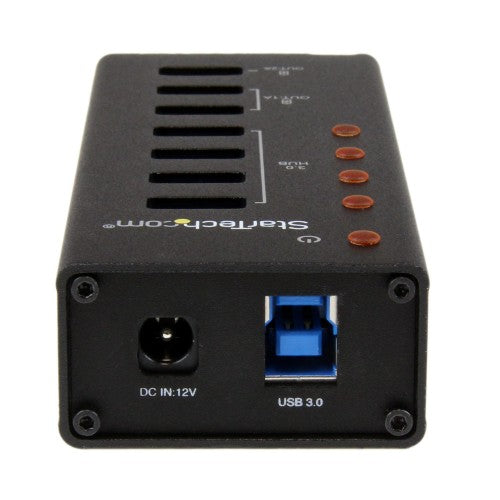

Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Hub interfaces	USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 2.0 ports quantity	3
DC-in jack	Yes
Ports quantity	7
Features
LED indicators	Yes
Product colour	Black
Data transfer rate	5000 Mbit/s
Housing material	Aluminum
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Data transmission
Data transfer rate	5000 Mbit/s
Power
Input current	1.3 A
Power plug type	Type M
Output voltage	12 V
Output current	3 A
Input voltage	100 - 240 V
Power supply type	DC
Technical details
Product colour	Black
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Weight & dimensions
Weight	4.62 oz (131 g)
Width	1.77" (45 mm)
Depth	4.33" (110 mm)
Height	0.945" (24 mm)
Package width	4.13" (105 mm)
Package depth	6.73" (171 mm)
Package height	3.46" (88 mm)
Package weight	21.4 oz (606 g)
Packaging data
Package width	4.13" (105 mm)
Package depth	6.73" (171 mm)
Package height	3.46" (88 mm)
Package weight	21.4 oz (606 g)
Performance
Data transfer rate	5000 Mbit/s
Harmonized System (HS) code	84719000

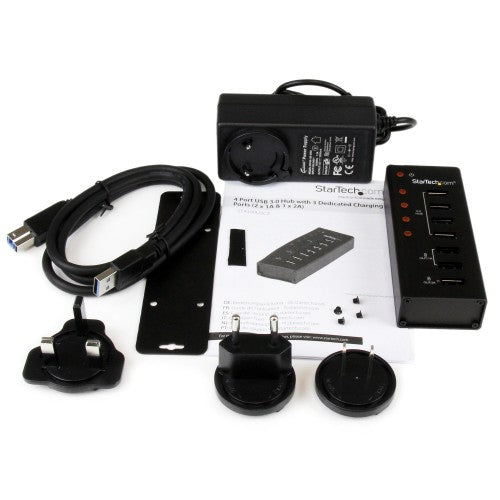

Packaging content
Wall mounting kit	Yes
Manual	Yes
Included power plug types	AU, EU, NA, UK
Cables included	USB
AC adapter included	Yes
Design
LED indicators	Yes
Product colour	Black
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	20 - 80%
Indication
LED indicators	Yes
Sustainability
Sustainability compliance	Yes
Logistics data
Master (outer) case width	14.2" (360 mm)
Master (outer) case length	18.3" (466 mm)
Master (outer) case height	14.3" (362 mm)
Products per master (outer) case	30 pc(s)
Harmonized System (HS) code	84719000
Other features
Chipset	VLI - VL812
