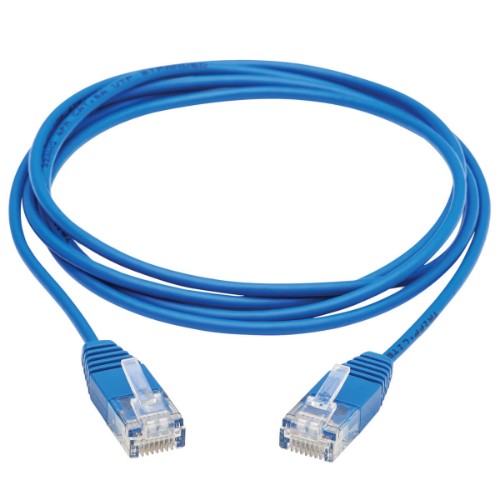

Tripp Lite N261-UR05-BL networking cable Blue 59.1" (1.5 m) Cat6a U/UTP (UTP)

Cat6a 10G Molded Ultra-Slim UTP Ethernet Cable (RJ45 M/M), Blue, 5 ft. (1.52 m)

Key Features

• Premium Cat6a cable rated for high-speed 10 Gbps home/office communications
• Over 50% slimmer than standard Cat6a cables to increase airflow in full racks
• Easy to route around corners and through crowded cable management panels
• 32 AWG copper wire and 3 μm gold-plated connectors allow superior signal transfer
• Color-coded blue for fast, easy identification in a crowded rack or workstation

Description

Cat6a Cable Ideal for Connecting Equipment in Your 10G Ethernet Network
This Cat6a Ethernet cable with RJ45 connectors is recommended for connecting network components like printers, computers, copiers, routers, servers, modems and switches in high-density data centers. Designed for fast transmission and excellent signal quality, this five-foot cable ensures peak performance throughout your local area network (LAN).

Special Ultra-Slim Design for Better Airflow and Easier Installation
The N261-UR05-BL is just 2.8 millimeters in diameter—more than 50% smaller than standard Cat6a cable. This increases airflow in crowded equipment racks, which helps keep your components cool and properly functioning. The extra-slim design also makes the cable easier to install around corners and through cable management panels.

Color-Coded to Avoid Misidentification That Can Cause Costly Downtime
The PVC jacket is colored blue to allow easy, fast identification in a crowded rack or workstation and help prevent the cable from becoming inadvertently disconnected.

Premium Construction for Superior Performance

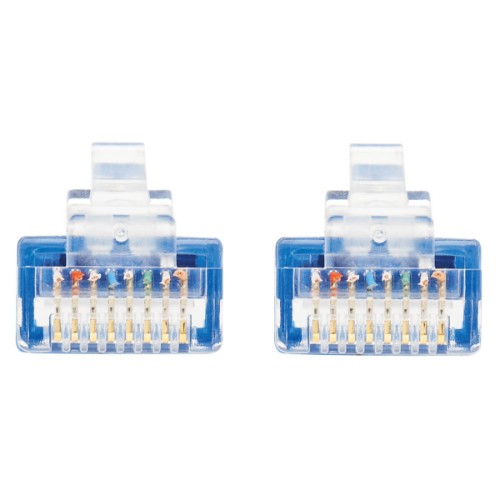

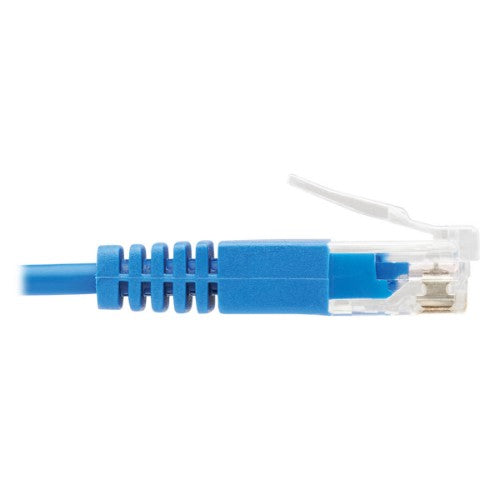

Manufactured from 32 AWG copper wire, the four-pair stranded cable is rated for speeds up to 10 Gbps. The RJ45 connectors improve near-end crosstalk (NeXT) performance to 500 MHz and feature 3-micron gold plating to help ensure the most accurate signal transfer possible. Integral strain relief gives the unshielded cable extra flexibility, reduces stress, and helps the cable move freely without cracking or breaking loose from the connector.

Specifications

Features
Product colour	Blue
Country of origin	China
Molded cable boot	Yes
Frequency	550 MHz
AWG wire size	32
Plug and Play	Yes
Cable standard	Cat6a
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3ab, IEEE 802.5
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Cable length	59.1" (1.5 m)
Connector 2 gender	Male
Connector 1 gender	Male
Certification	RoHS, REACH
Harmonized System (HS) code	8544.42.2000
Operational conditions
Storage temperature (T-T)	-15 - 50 °C
Storage relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Certificates
Certification	RoHS, REACH
Compliance certificates	RoHS
Weight & dimensions
Outer diameter	0.11" (2.8 mm)
Packaging content
Manual	Yes
Quantity per pack	1 pc(s)
Packaging data
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	1.06 oz (30 g)
Manual	Yes
Quantity per pack	1 pc(s)
Technical details
Product colour	Blue
Plug and Play	Yes
Cable standard	Cat6a
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3ab, IEEE 802.5
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Cable length	59.1" (1.5 m)
Country of origin	China
Compliance certificates	RoHS
Other features
Master (outer) case GTIN (EAN/UPC)	10037332256994
Logistics data
Master (outer) case gross weight	9.88 oz (280 g)
Products per master (outer) case	10 pc(s)
Master (outer) case width	14" (355.6 mm)
Master (outer) case length	1" (25.4 mm)
Master (outer) case height	17" (431.8 mm)
Master (outer) case GTIN (EAN/UPC)	10037332256994
Harmonized System (HS) code	8544.42.2000
