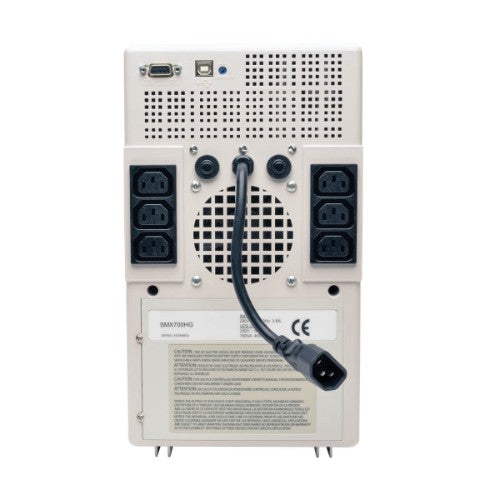

Tripp Lite SMX700HG uninterruptible power supply (UPS) 0.7 kVA 450 W 6 AC outlet(s)

SmartPro 230V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, USB, DB9

Key Features

• Supports a half load up to 36 minutes; full load up to 14.5 minutes
• Six IEC320 C13 hospital-grade outlets and IEC320 C14 hospital-grade plug
• Leakage current less than 100 microamps
• Approved for use within the Patient Care Vicinity
• Approved to EN60601-1-2:2015, 4th Edition
• Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
• 340 joule surge suppression rating protects connected equipment
• Alarm mute/alarm quiet control is ideal for use around patients

Description

The SMX700HG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient care vicinities. The 700VA/450W capacity provides up to 36 minutes of runtime for a half load or 14.5 minutes for a full load, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout.

Built-in line-interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274V to normal 230V nominal output, without drawing battery power. The SMX700HG’s built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Cumulative leakage current of all connected equipment is less than 100 microamps.

This UPS system features six IEC320 C13 hospital-grade outlets and has a hospital-grade IEC320 C14 plug on a 15-centimeter (six-inch) dongle. All six outlets provide both backup protection and surge protection, rated to 340 joules.

The SMX700HG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with free downloadable PowerAlert® software for safe, unattended system shutdown in the event of a prolonged power failure.

This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMX700HG in this type of application will void the battery warranty.

Specifications

Power
Output power	450 W
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Surge energy rating	340 J
Maximum current	3.6 A
Output power capacity	0.7 kVA
Input frequency	50/60 Hz
Ports & interfaces
Cable length	72" (1.83 m)
AC outlets quantity	6 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
RS-232 ports	1
Performance
Response time	5 ms
LED indicators	Yes
EMI/RFI noise filtering	Yes
Audible alarm(s)	Yes
Features
Country of origin	China
Response time	5 ms
Output power	450 W
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Surge energy rating	340 J
Maximum current	3.6 A
EMI/RFI noise filtering	Yes
Audible alarm(s)	Yes
Output power capacity	0.7 kVA
Input frequency	50/60 Hz
Battery
Battery recharge time	3.6 h
Typical backup time at half load	36 min
Typical backup time at full load	14.5 min
Hot-swap battery	Yes
Cold start	Yes
Design
Country of origin	China
Form factor	Tower
LED indicators	Yes
Product colour	White
Cooling type	Active
Certification	CE/IEC 60601-1, FCC B
Cable length	72" (1.83 m)
Housing material	Polyvinyl chloride (PVC)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Technical details
Harmonized System (HS) code	85078000
Compliance certificates	RoHS
Packaging data
Package dimensions (WxDxH)	12.2 x 13.4 x 18.5" (310 x 340 x 470 mm)
Package width	12.2" (309.9 mm)
Package depth	13.4" (339.9 mm)
Package height	18.5" (469.9 mm)
Package weight	45.4 lbs (20.6 kg)
Certificates
Certification	CE/IEC 60601-1, FCC B
Compliance certificates	RoHS
Cooling
Cooling type	Active
Weight & dimensions
Package width	12.2" (309.9 mm)
Package depth	13.4" (339.9 mm)
Package height	18.5" (469.9 mm)
Weight	42.1 lbs (19.1 kg)
Width	7.5" (190.5 mm)
Package weight	45.4 lbs (20.6 kg)
Height	12.8" (325 mm)
Depth	9.02" (229 mm)
Logistics data
Country of origin	China
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	85078000
Other features
Package dimensions (WxDxH)	12.2 x 13.4 x 18.5" (310 x 340 x 470 mm)
Nominal input voltage	230 V
