StarTech.com

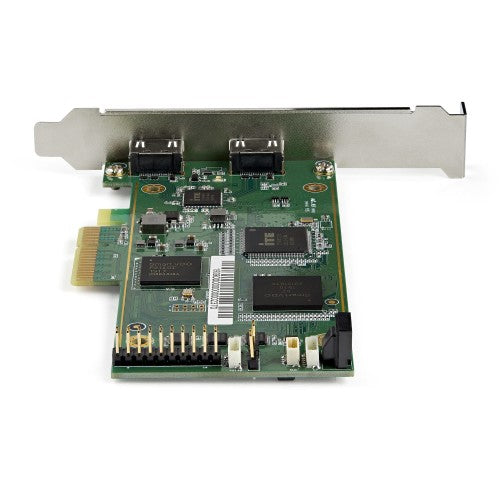

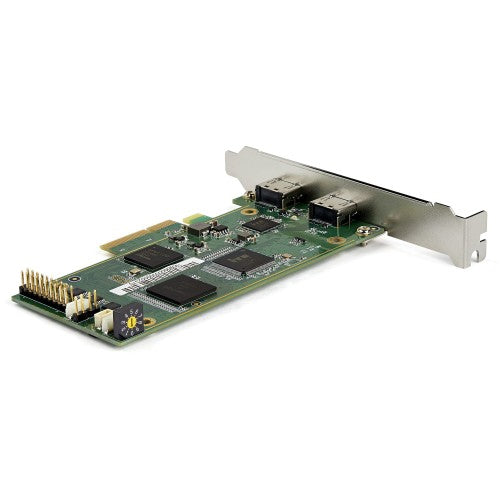

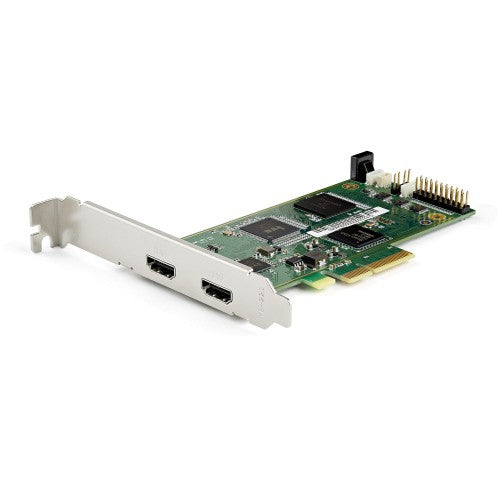

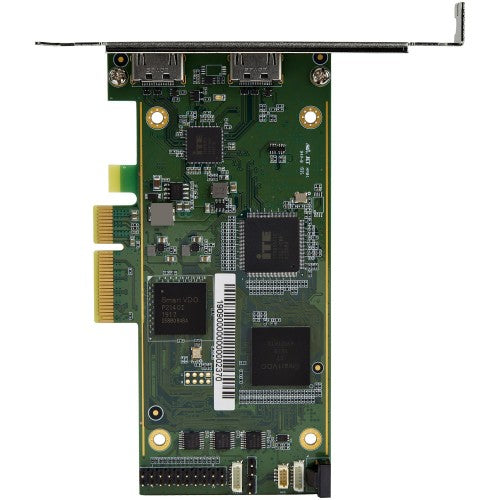

StarTech.com PEXHDCAP4K video capturing device Internal PCIe
SKU:
PEXHDCAP4K
Condition: New
$188.86 USD
Pickup currently not available
✔
Factory-Sealed
Sourced from authorized distributors
✔
Manufacturer Warranty
Terms set by the brand
✔
Enterprise Expertise
Business Procurement
Free standard shipping over $2,500
Delivery estimates are based on product availability, destination, fulfillment method, and qualifying order requirements. 30-day returns; 20% restocking fee on non-defective returns. Shipping policy · Return policy
Loading documents...
Need Help Before You Order?
Check compatibility, availability, or volume pricing with an IT procurement specialist.
Enterprise IT Procurement Built for Business
Source servers, networking, storage, workstations, and business technology through established distribution channels with dedicated procurement support.
1,700+
Business Accounts Supported
32,000+
Enterprise Hardware Products Available
Fast, Reliable Procurement Support
Reach out for responsive product availability, part numbers, pricing, and additional hardware needs.
4–8 Hrs
Typical RFQ Response Target
Multi-Vendor
Hardware Sourcing
Keep Your IT Projects Moving
For business hardware purchases and larger deployments, get shipment information, order coordination, and delivery support.
Manufacturer Warranty Coverage
Eligible products include warranty coverage provided by the original manufacturer according to applicable brand and product terms.
Brand Warranty TermsFactory-Sealed HardwareOEM Support Eligibility
A Trusted Source for Enterprise Hardware
Source factory-sealed IT hardware through established technology distribution channels, with support for individual purchases, BOM requests, and larger business requirements.
112+
Technology Brands
32,000+
Hardware Products Available
Key Features
StarTech.com PCIe HDMI Capture Card - 4K 60Hz PCI Express HDMI 2.0 Capture Card w/HDR10 - PCIe x4 Video Capture Device for Desktop - Video Recorder/Adapter/Live Streaming - Supports H.264 (PEXHDCAP4K)
You can install the HDMI capture card into any low-profile or full-profile PCIe slot, including fixed workstations such as 2U or 4U rack-mounted servers or media centers.
Astonishing Picture Quality at 60 Frames Per Second
With frame rates up to 60fps (frames per second) and H.264 encoding, this PCIe HDMI capture card is perfect for capturing ultra high-definition video for editing, compiling, and archiving. HDR10 is available through HDMI 2.0a support.
H.264 Encoding for Wide Device Compatibility
The software included with the 4K60 capture card encodes captured video in H.264 - the most widely adopted video compression standard in the world. This video recording card ensures your captures are compatible with most device platforms such as PC, Mac, iOS and Android™.
Pass-through Port
The UHD capture card features an HDMI output port so you can watch the video source on a separate HDMI display while recording on your computer.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
PEXHDCAP4K is backed by a StarTech.com 2-year warranty and free, lifetime technical support.
Note:
This capture device will not record digitally encrypted content
The StarTech.com Advantage
Key Features
- 4K VIDEO CAPTURE: PCIe HDMI capture card (minimum x4 slot) captures unprotected 4K 60Hz video to a desktop computer through an HDMI 2.0 input port / 4096×2160p 60fps, HDR10, 2ch audio, 16:9 & 4:3 aspect ratio / Supports playback with HDMI monitor output
- APPLICATION: HDMI capture card for recording video, conference calls, camera feeds, medical imaging in 4K quality w/incl. Streamcatcher or 3rd party (OBS) software; Live streaming on YouTube & other platforms w/RTSP; Use w/collaboration apps Teams & Zoom
- COMPATIBILITY: Video capture card/adapter supports H.264 (MPEG-4) encoding to ensure compatibility with most platforms; Out of the box solution for use with incl. software or third-party options (DirectShow) / Includes Low & Full profile brackets
- OS COMPATIBILITY: PCI Express HDMI capture card and incl. Streamcatcher software is compatible with Windows 8 and up; Also works with NTSC and PAL systems / HDCP compliant, will not capture protected-content such as Blu-ray or video output from a Mac
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This 4K HDMI internal capture card/video grabber is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Description
PCI Express HDMI Recorder | HDR | 4K @ 60Hz | For Windows®You can install the HDMI capture card into any low-profile or full-profile PCIe slot, including fixed workstations such as 2U or 4U rack-mounted servers or media centers.
Astonishing Picture Quality at 60 Frames Per Second
With frame rates up to 60fps (frames per second) and H.264 encoding, this PCIe HDMI capture card is perfect for capturing ultra high-definition video for editing, compiling, and archiving. HDR10 is available through HDMI 2.0a support.
H.264 Encoding for Wide Device Compatibility
The software included with the 4K60 capture card encodes captured video in H.264 - the most widely adopted video compression standard in the world. This video recording card ensures your captures are compatible with most device platforms such as PC, Mac, iOS and Android™.
Pass-through Port
The UHD capture card features an HDMI output port so you can watch the video source on a separate HDMI display while recording on your computer.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
PEXHDCAP4K is backed by a StarTech.com 2-year warranty and free, lifetime technical support.
Note:
This capture device will not record digitally encrypted content
The StarTech.com Advantage
Specifications
| Performance | |
|---|---|
| Supported aspect ratios | 4:3, 16:9 |
| Internal | Yes |
| Host interface | PCIe |
| Video capture resolution (max) | 4096 x 2160 pixels |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Technical details | |
| Supported aspect ratios | 4:3, 16:9 |
| Internal | Yes |
| Host interface | PCIe |
| Video capture resolution (max) | 4096 x 2160 pixels |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Compliance certificates | CE, RoHS |
| Video | |
| Analog signal format system | NTSC, PAL, PAL 60, PAL M |
| Maximum refresh rate | 60 Hz |
| HDCP | Yes |
| File formats | |
| Video compression formats | H.264, MPEG4 |
| Ports & interfaces | |
| Composite video in | 0 |
| Component video (YPbPr/YCbCr) in | 0 |
| S-Video inputs quantity | 0 |
| Audio (L/R) in | 0 |
| Headphone outputs | 0 |
| HDMI ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| HDMI version | 2.0 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width | 2.72" (69 mm) |
| Depth | 5.12" (130 mm) |
| Height | 0.394" (10 mm) |
| Other features | |
| Master (outer) case width | 15.7" (400 mm) |
| Master (outer) case height | 19.3" (490 mm) |
| Packaging data | |
| Package width | 5.67" (144 mm) |
| Package height | 1.5" (38 mm) |
| Package weight | 8.11 oz (230 g) |
| Package depth | 8.15" (207 mm) |
| Packaging content | |
| Low-profile bracket | Yes |
| Quick installation guide | Yes |
| Logistics data | |
| Products per master (outer) case | 35 pc(s) |
| Master (outer) case length | 16.1" (410 mm) |
Product Specs
StarTech.com PCIe HDMI Capture Card - 4K 60Hz PCI Express HDMI 2.0 Capture Card w/HDR10 - PCIe x4 Video Capture Device for Desktop - Video Recorder/Adapter/Live Streaming - Supports H.264 (PEXHDCAP4K)
You can install the HDMI capture card into any low-profile or full-profile PCIe slot, including fixed workstations such as 2U or 4U rack-mounted servers or media centers.
Astonishing Picture Quality at 60 Frames Per Second
With frame rates up to 60fps (frames per second) and H.264 encoding, this PCIe HDMI capture card is perfect for capturing ultra high-definition video for editing, compiling, and archiving. HDR10 is available through HDMI 2.0a support.
H.264 Encoding for Wide Device Compatibility
The software included with the 4K60 capture card encodes captured video in H.264 - the most widely adopted video compression standard in the world. This video recording card ensures your captures are compatible with most device platforms such as PC, Mac, iOS and Android™.
Pass-through Port
The UHD capture card features an HDMI output port so you can watch the video source on a separate HDMI display while recording on your computer.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
PEXHDCAP4K is backed by a StarTech.com 2-year warranty and free, lifetime technical support.
Note:
This capture device will not record digitally encrypted content
The StarTech.com Advantage
Key Features
- 4K VIDEO CAPTURE: PCIe HDMI capture card (minimum x4 slot) captures unprotected 4K 60Hz video to a desktop computer through an HDMI 2.0 input port / 4096×2160p 60fps, HDR10, 2ch audio, 16:9 & 4:3 aspect ratio / Supports playback with HDMI monitor output
- APPLICATION: HDMI capture card for recording video, conference calls, camera feeds, medical imaging in 4K quality w/incl. Streamcatcher or 3rd party (OBS) software; Live streaming on YouTube & other platforms w/RTSP; Use w/collaboration apps Teams & Zoom
- COMPATIBILITY: Video capture card/adapter supports H.264 (MPEG-4) encoding to ensure compatibility with most platforms; Out of the box solution for use with incl. software or third-party options (DirectShow) / Includes Low & Full profile brackets
- OS COMPATIBILITY: PCI Express HDMI capture card and incl. Streamcatcher software is compatible with Windows 8 and up; Also works with NTSC and PAL systems / HDCP compliant, will not capture protected-content such as Blu-ray or video output from a Mac
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This 4K HDMI internal capture card/video grabber is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Description
PCI Express HDMI Recorder | HDR | 4K @ 60Hz | For Windows®You can install the HDMI capture card into any low-profile or full-profile PCIe slot, including fixed workstations such as 2U or 4U rack-mounted servers or media centers.
Astonishing Picture Quality at 60 Frames Per Second
With frame rates up to 60fps (frames per second) and H.264 encoding, this PCIe HDMI capture card is perfect for capturing ultra high-definition video for editing, compiling, and archiving. HDR10 is available through HDMI 2.0a support.
H.264 Encoding for Wide Device Compatibility
The software included with the 4K60 capture card encodes captured video in H.264 - the most widely adopted video compression standard in the world. This video recording card ensures your captures are compatible with most device platforms such as PC, Mac, iOS and Android™.
Pass-through Port
The UHD capture card features an HDMI output port so you can watch the video source on a separate HDMI display while recording on your computer.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
PEXHDCAP4K is backed by a StarTech.com 2-year warranty and free, lifetime technical support.
Note:
This capture device will not record digitally encrypted content
The StarTech.com Advantage
Specifications
| Performance | |
|---|---|
| Supported aspect ratios | 4:3, 16:9 |
| Internal | Yes |
| Host interface | PCIe |
| Video capture resolution (max) | 4096 x 2160 pixels |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Technical details | |
| Supported aspect ratios | 4:3, 16:9 |
| Internal | Yes |
| Host interface | PCIe |
| Video capture resolution (max) | 4096 x 2160 pixels |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Compliance certificates | CE, RoHS |
| Video | |
| Analog signal format system | NTSC, PAL, PAL 60, PAL M |
| Maximum refresh rate | 60 Hz |
| HDCP | Yes |
| File formats | |
| Video compression formats | H.264, MPEG4 |
| Ports & interfaces | |
| Composite video in | 0 |
| Component video (YPbPr/YCbCr) in | 0 |
| S-Video inputs quantity | 0 |
| Audio (L/R) in | 0 |
| Headphone outputs | 0 |
| HDMI ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| HDMI version | 2.0 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width | 2.72" (69 mm) |
| Depth | 5.12" (130 mm) |
| Height | 0.394" (10 mm) |
| Other features | |
| Master (outer) case width | 15.7" (400 mm) |
| Master (outer) case height | 19.3" (490 mm) |
| Packaging data | |
| Package width | 5.67" (144 mm) |
| Package height | 1.5" (38 mm) |
| Package weight | 8.11 oz (230 g) |
| Package depth | 8.15" (207 mm) |
| Packaging content | |
| Low-profile bracket | Yes |
| Quick installation guide | Yes |
| Logistics data | |
| Products per master (outer) case | 35 pc(s) |
| Master (outer) case length | 16.1" (410 mm) |
