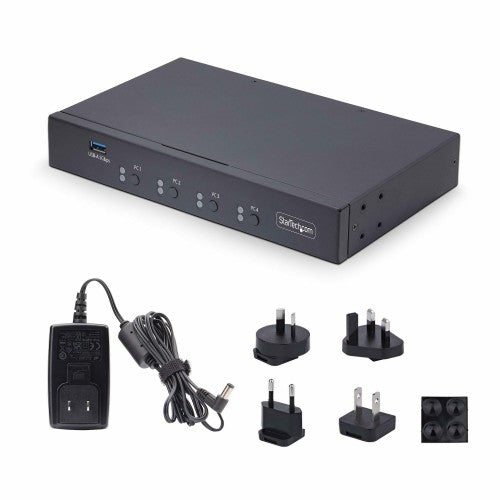

StarTech.com P4A20132-KM-SWITCH KVM switch Black

StarTech 4-Port KM Switch with Mouse Switching, USB 3.0 Switcher, Keyboard/Mouse Sharing, 3.5mm/USB Audio, TAA Compliant

Key Features

• SEAMLESS MOUSE SWITCHING: Instantly and automatically switch computers by moving the mouse between monitors, enabling uninterrupted workflow and increased efficiency; Hotkey and push-button switching options are also available
• SCREEN LAYOUT PRESETS: Monitor layouts controlled via hotkeys are designed to accommodate a variety of physical monitor setups, allowing for seamless mouse movement across host monitors; 4 different preset display configurations available
• USB CONNECTIVITY: Supports up to three USB Human Interface Device (HID) peripherals and two USB 3.2 Gen 1 (5Gbps) devices; Ideal for environments such as control rooms, security facilities, server rooms, and financial operations
• THOUGHTFUL DESIGN: Independent audio switching allows users to listen to audio from one computer while controlling another; USB audio and 3.5mm pass-through available; LEDs provide visual port selection status; Audible buzzer for hotkey confirmation
• UNIVERSAL COMPATIBILITY: Mouse Roaming is supported by most major desktop operating systems including Windows, macOS, and Linux; Hotkey and push-button switching are OS independent; Works with all hardware platforms including Intel and AMD

Description

Control up to four computers with a single keyboard and mouse

This Keyboard and Mouse (KM) Switch enables switching a single keyboard and mouse between multiple computers using mouse roaming, allowing users to seamlessly move the cursor across multiple screens (i.e., one monitor per computer).

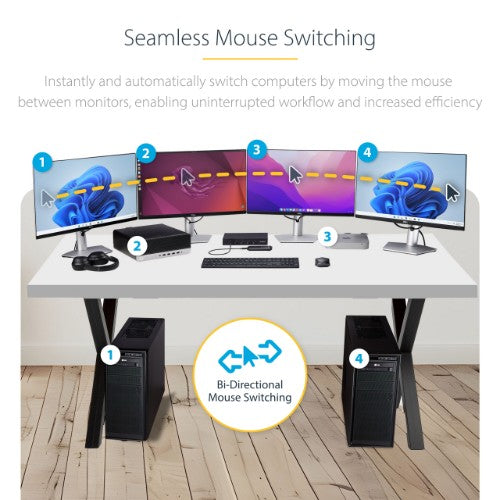

Mouse Switching

Switch between computers by moving the mouse between monitors, enabling uninterrupted workflow and increased efficiency. Hotkey and push-button switching are universally compatible. Mouse Switching is supported by most major desktop operating systems, including Windows, macOS, and Linux.

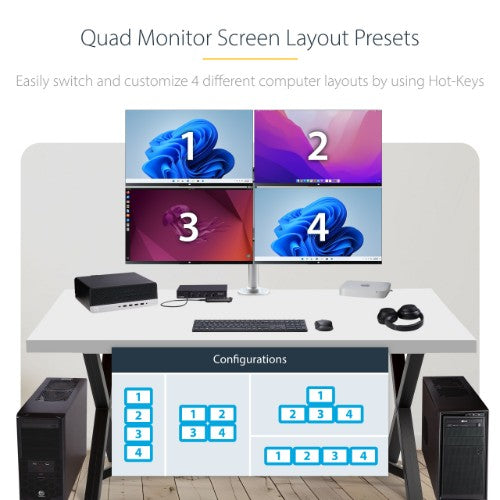

Preset Monitor Layouts

To accommodate various physical monitor setups, there are four preset display configurations available. This allows for smooth mouse movement across host monitors.

Thoughtful Design

Hotkeys enable listening to audio from one computer while controlling another. USB audio and 3.5mm pass-through are available, and LEDs provide visual port selection status, while an audible buzzer confirms hotkey selection.

Note: On computers with multiple monitors connected with Mouse Switching/Roaming enabled, mouse/keyboard operation is limited to the primary display

Specifications

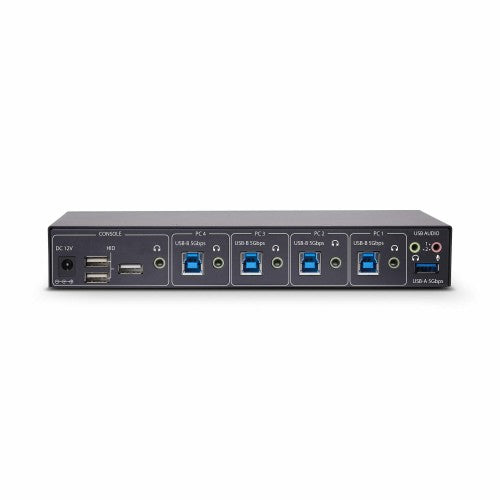

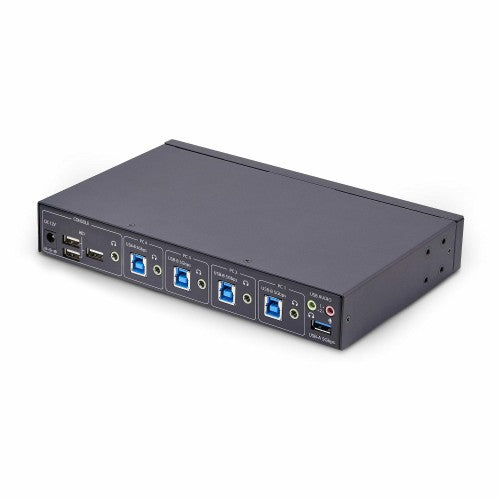

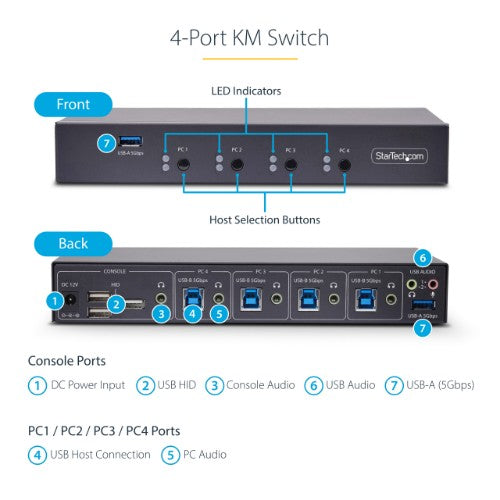

Ports & interfaces
Console ports	3.5mm headphone, 3.5mm mic, USB A
Number of microphone inputs	1
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Audio connections	Yes
Headphone outputs	6
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	4
USB 2.0 Type-A hub ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
Performance
Chipset	GL3523
Data transfer rate (max)	5 Gbit/s
HD type	Not supported
Technical details
Product colour	Black
Push button	Yes
On Screen Display (OSD)	No
LED indicators	Yes
Hot keys	Yes
IP control	No
Sustainability compliance	Yes
Compliance certificates	RoHS, Trade Agreements Act (TAA)
Design
Mean time between failures (MTBF)	156000 h
Product colour	Black
Push button	Yes
LED indicators	Yes
Hot keys	Yes
Display
Built-in display	No
On Screen Display (OSD)	No
Power
Input current	0.6 A
Output current	5 A
Power plug type	Type M
Compatible power plug types	AU, EU, UK, US
Output voltage	12 V
External power adapter	Yes
Input voltage	100 - 240 V
Video
HD type	Not supported
Sustainability
Sustainability compliance	Yes
Compliance certificates	RoHS, Trade Agreements Act (TAA)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	5.12" (130 mm)
Depth	8.66" (220 mm)
Height	1.34" (34 mm)
Weight	28.2 oz (800 g)
Package width	11.6" (295 mm)
Package depth	9.65" (245 mm)
Package height	2.48" (63 mm)
Package weight	6.35 oz (180 g)
Packaging data
Package width	11.6" (295 mm)
Package depth	9.65" (245 mm)
Package height	2.48" (63 mm)
Package weight	6.35 oz (180 g)
Packaging content
Quick installation guide	Yes
Other features
IP control	No
Push button	Yes
Hot keys	Yes
Logistics data
Master (outer) case width	12.6" (320 mm)
Master (outer) case length	19.9" (505 mm)
Master (outer) case height	11.4" (290 mm)
Products per master (outer) case	8 pc(s)
