Samsung QB85C-N QBC Series - 85" LED-backlit LCD display - Crystal UHD - 4K - for digital signage

With features like Smart Calibration, Dynamic Crystal Color, and Intelligent UHD upscaling, every detail is presented with precision, ensuring your content captures attention and communicates effectively.

Key Features

• Ultra Slim Depth
• Even bezel

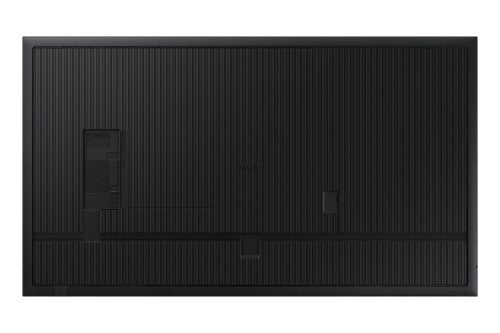

• Centered VESA Holes

Description

The QB85C-N is built to perform, supporting up to 16 hours of continuous operation daily. It offers a range of connectivity options, including HDMI, USB, and LAN, for easy integration into existing systems. Additionally, its energy-efficient operation, certified by ENERGY STAR and EPEAT Bronze, aligns with eco-friendly business practices.

Specifications

Display
Dynamic contrast ratio marketing name	Mega Contrast
Panel type	VA
Touchscreen	No
Display technology	LCD
Display diagonal	85"
Display resolution	3840 x 2160 pixels
Display brightness	350 cd/m²
HD type	4K Ultra HD
Response time	10 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.0192 x 0.0192" (0.487 x 0.487 mm)
Vertical scan range	48 - 75 Hz
Native aspect ratio	16:9
Horizontal scan range	30 - 81 kHz
Native refresh rate	60 Hz
Haze rate	2%
RGB colour space	NTSC
Pixel frequency (max)	594 MHz

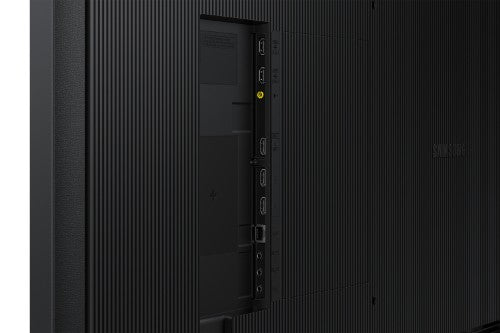

Ports & interfaces
Remote (IR) input	1
USB port	Yes
HDMI version	2.0
Infrared data port	Yes
Wi-Fi	Yes
DisplayPorts quantity	0
Ethernet LAN	Yes
HDMI ports quantity	3
DVI port	No
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
USB ports quantity	2
HDMI input ports quantity	3
Design
Product design	Digital signage flat panel
Placement supported	Indoor
Bezel width (top)	0.547" (1.39 cm)
Bezel width (side)	0.547" (1.39 cm)
Bezel width (bottom)	0.547" (1.39 cm)
Product colour	Black
Panel mounting interface	600 x 400 mm
VESA mounting	Yes
Mounting type	Wall
Screen shape	Flat
Bezel colour	Charcoal Black
Performance
Purpose	Universal
Operating hours (hours/days)	16/7
HDCP	Yes
HDCP version	2.2
Wi-Fi	Yes
Power
Power consumption (sleep)	0.5 W
Power consumption (typical)	231 W
Power consumption (standby)	0.5 W
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	Not available
Computer system
Computer system	Yes
Computer system type	System on Chip (SoC)
Operating system installed	Tizen
Built-in processor	Yes
Operating system version	7.0
Weight & dimensions
Display width	75" (1904.3 mm)
Display depth	1.12" (28.5 mm)
Display height	42.7" (1085.3 mm)
Display weight	92.4 lbs (41.9 kg)
Packaging data
Package width	81.8" (2077 mm)
Package depth	8.27" (210 mm)
Package height	48.1" (1222 mm)
Package weight	118.8 lbs (53.9 kg)
Packaging content
Stand included	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Technical details
VESA mounting	Yes
Power supply type	Internal
Stand included	No
Panel type	VA
RJ-45 input ports	1
RS-232 output ports	1
RS-232 input ports	1
Audio out (mini jack)	1
Network
Wi-Fi	Yes
Ethernet LAN	Yes
Thin Client
Operating system installed	Tizen
Other features
Power supply type	Internal
Stand included	No
Panel type	VA
RJ-45 input ports	1
RS-232 output ports	1
RS-232 input ports	1
Wi-Fi	Yes
Flash memory	8000 MB
Display technology	LCD
Bezel width (top)	0.547" (1.39 cm)
Bezel width (side)	0.547" (1.39 cm)
Bezel width (bottom)	0.547" (1.39 cm)
Energy efficiency scale	A to G
Optional features	WMN-B50SC STN-L6585C
