ASUS ASUS-PRO-WS-3000P power supply unit 3000 W 20+4 pin ATX ATX Black

Pro WS 3000W Platinum PSU

Key Features

• Heavy-duty PSU: Supports up to four GeForce RTX™ 5090 graphics cards via rock-solid voltage stability and advanced power delivery.

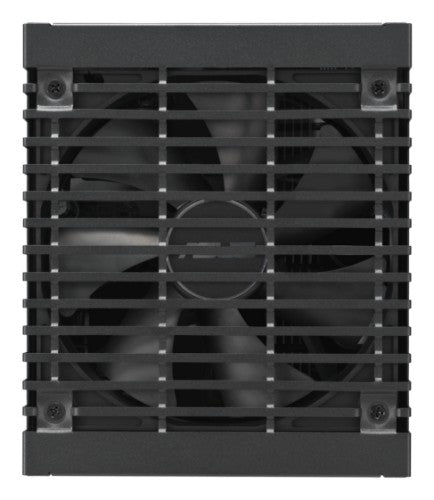

• Dual-ball fan bearings: Designed to last up to twice as long as sleeve-bearing designs.
• Extruded aluminum heatsinks: Cover critical components, delivering lower temperatures and noise versus reference designs.
• ATX 3.1 compatible: Compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation.
• PCIe® 5.1 ready: Features native 12V-2x6 connectors for cutting-edge graphics card power.
• 80 PLUS Platinum certified: Utilizes low-ESR Japanese server grade capacitors and premium components for industry-leading power efficiency.

Description

ASUS Pro WS 3000W Platinum
The ASUS Pro WS 3000W Platinum PSU is engineered to support up to four GeForce RTX™ 5090 graphics cards. It also features 80 PLUS Platinum certification, high-performance copper pins, dual-ball fan bearings, etched cables, rock-solid voltage stability and advanced power delivery, making it an ideal choice for AI solutions, deep learning and IT management.

Specifications

Cooling
Cooling type	Active
Design
80 PLUS certification	80 PLUS Platinum
Product colour	Black
Illumination	No
Cooling type	Active
Power
Total power	3000 W
AC input voltage	220 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	130 W
Combined power (+12V)	3000 W
Combined power (+5V)	130 W
Combined power (-12V)	0.8 W
Combined power (+5Vsb)	3 W
Max output current (+3.3V)	25 A
Max output current (+12V)	250 A
Max output current (+5V)	25 A
Max output current (-12V)	9.6 A
Max output current (+5Vsb)	15 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power cable length	24" (61 cm)
SATA power cable length	120,400 mm
Peripheral (Molex) power cable length	150,400 mm
PCI Express power cable length	29.5" (75 cm)
CPU power cable length	39.4" (100 cm)

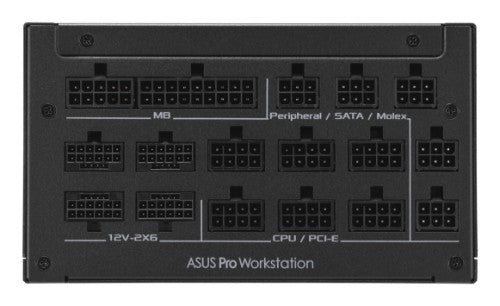

Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	12
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)	Yes
Cabling type	Fully-Modular
PCI Express power connectors (16-pin)	4
Performance
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
Purpose	PC
ATX version	3.1
Bearing technology	DBB
Weight & dimensions
Width	6.89" (175 mm)
Depth	5.91" (150 mm)
Height	3.39" (86 mm)
Weight	4.76 lbs (2.16 kg)
Packaging data
Package depth	8.19" (208 mm)
Package width	13.6" (346 mm)
Package height	5.67" (144 mm)
Package type	Box
Package weight	11.2 lbs (5.09 kg)
Certificates
80 PLUS certification	80 PLUS Platinum
