Nvidia

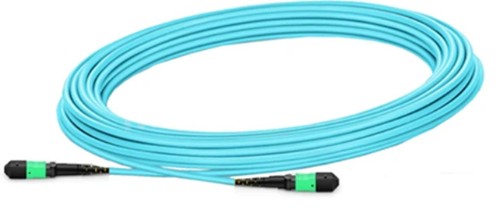

Nvidia MFP7E10-N015 InfiniBand/fibre optic cable 590.6" (15 m) MPO OFNR Aqua color
SKU:
MFP7E10-N015
$83.84 USD
Pickup currently not available
✔
Factory-Sealed
Sourced from authorized distributors
✔
Manufacturer Warranty
Terms set by the brand
✔
Enterprise Expertise
Business Procurement
Free standard shipping over $2,500
Delivery estimates are based on product availability, destination, fulfillment method, and qualifying order requirements. 30-day returns; 20% restocking fee on non-defective returns. Shipping policy · Return policy
Loading documents...
Need Help Before You Order?
Check compatibility, availability, or volume pricing with an IT procurement specialist.
Enterprise IT Procurement Built for Business
Source servers, networking, storage, workstations, and business technology through established distribution channels with dedicated procurement support.
1,700+
Business Accounts Supported
32,000+
Enterprise Hardware Products Available
Fast, Reliable Procurement Support
Reach out for responsive product availability, part numbers, pricing, and additional hardware needs.
4–8 Hrs
Typical RFQ Response Target
Multi-Vendor
Hardware Sourcing
Keep Your IT Projects Moving
For business hardware purchases and larger deployments, get shipment information, order coordination, and delivery support.
Manufacturer Warranty Coverage
Eligible products include warranty coverage provided by the original manufacturer according to applicable brand and product terms.
Brand Warranty TermsFactory-Sealed HardwareOEM Support Eligibility
A Trusted Source for Enterprise Hardware
Source factory-sealed IT hardware through established technology distribution channels, with support for individual purchases, BOM requests, and larger business requirements.
112+
Technology Brands
32,000+
Hardware Products Available
Key Features
NVIDIA passive fiber cable, MMF, MPO12 APC to MPO12 APC, 15m
The Multiple Push On, 12 fiber, Angled Polished Connectors (MPO-12/APC) uses 8 active fibers to transmit light, and 4 inactive fibers as strength members. The APC end has a 8-degree polished angle to deflect internal optical back reflections from entering the transceiver and distorting the signal quality.
Twin-port OSFP 800Gb/s transceivers support two 4-channel fibers which are linked to other twin-port OSFP, single port OSFP or QSFP112 400Gb/s transceivers.
The fibers are “crossover”, Type-B cables that enable directly attaching two transceivers together and aligning the transmit laser fiber on pin 1 to “crosses over” and align with pin 12 of the opposite fiber end transceiver photodetector.
Typical usecase is linking twin port OSFP switches to each other, and to ConnectX-7® network adapters and/or BlueField-3® Data Processing Units (DPUs) in compute and storage servers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance, and durability. Mellanox optical solutions provide short, medium, and long reach scalability for all topologies, utilizing innovative optical technologies to enable high signal integrity and reliability.
Key Features
- Flexible round outer jacket for easy installation
- Push-pull latching for quick release
- Female-to-Female connectors
- 50/125 µm Multimode fibers
- 50m max reach
- Telcordia GR-1435 compliant
- IEC Standard Connectors:
- MPO: IEC 61754-7 and ANSI/TIA/EIA 604-5-199
- OFNR/LSZH (low smoke zero halogen) jacket
- Supports InfiniBand, Ethernet and NVLink protocols
Description
The NVIDIA MFP7E10-Nxxx MPO-12/APC-to-MPO12/APC (8 fibers) passive optical single mode cable, is designed for linking InfiniBand and Ethernet multimode twin-port OSFP and single-port OSFP and QSFP112 transceivers together.The Multiple Push On, 12 fiber, Angled Polished Connectors (MPO-12/APC) uses 8 active fibers to transmit light, and 4 inactive fibers as strength members. The APC end has a 8-degree polished angle to deflect internal optical back reflections from entering the transceiver and distorting the signal quality.
Twin-port OSFP 800Gb/s transceivers support two 4-channel fibers which are linked to other twin-port OSFP, single port OSFP or QSFP112 400Gb/s transceivers.
The fibers are “crossover”, Type-B cables that enable directly attaching two transceivers together and aligning the transmit laser fiber on pin 1 to “crosses over” and align with pin 12 of the opposite fiber end transceiver photodetector.
Typical usecase is linking twin port OSFP switches to each other, and to ConnectX-7® network adapters and/or BlueField-3® Data Processing Units (DPUs) in compute and storage servers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance, and durability. Mellanox optical solutions provide short, medium, and long reach scalability for all topologies, utilizing innovative optical technologies to enable high signal integrity and reliability.
Specifications
| Technical details | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH), Optical fiber non-conductive riser (OFNR) |
| Fiber mode structure | Single-mode |
| Connector 1 | MPO |
| Connector 2 | MPO |
| Cable type | OFNR |
| Cable length | 590.6" (15 m) |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Features | |
| Jacket material | Low smoke zero halogen (LSZH), Optical fiber non-conductive riser (OFNR) |
| Fiber mode structure | Single-mode |
| Connector 1 | MPO |
| Connector 2 | MPO |
| Cable type | OFNR |
| Cable length | 590.6" (15 m) |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Certification | IEC 61754-7, ANSI/TIA/EIA 604-5-199 |
| Product colour | Aqua color |
| Connector 2 gender | Female |
| Connector 1 gender | Female |
| Connector polish type | APC |
| Plug and Play | Yes |
| Certificates | |
| Certification | IEC 61754-7, ANSI/TIA/EIA 604-5-199 |
| Weight & dimensions | |
| Cable length | 590.6" (15 m) |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
Product Specs
NVIDIA passive fiber cable, MMF, MPO12 APC to MPO12 APC, 15m
The Multiple Push On, 12 fiber, Angled Polished Connectors (MPO-12/APC) uses 8 active fibers to transmit light, and 4 inactive fibers as strength members. The APC end has a 8-degree polished angle to deflect internal optical back reflections from entering the transceiver and distorting the signal quality.
Twin-port OSFP 800Gb/s transceivers support two 4-channel fibers which are linked to other twin-port OSFP, single port OSFP or QSFP112 400Gb/s transceivers.
The fibers are “crossover”, Type-B cables that enable directly attaching two transceivers together and aligning the transmit laser fiber on pin 1 to “crosses over” and align with pin 12 of the opposite fiber end transceiver photodetector.
Typical usecase is linking twin port OSFP switches to each other, and to ConnectX-7® network adapters and/or BlueField-3® Data Processing Units (DPUs) in compute and storage servers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance, and durability. Mellanox optical solutions provide short, medium, and long reach scalability for all topologies, utilizing innovative optical technologies to enable high signal integrity and reliability.
Key Features
- Flexible round outer jacket for easy installation
- Push-pull latching for quick release
- Female-to-Female connectors
- 50/125 µm Multimode fibers
- 50m max reach
- Telcordia GR-1435 compliant
- IEC Standard Connectors:
- MPO: IEC 61754-7 and ANSI/TIA/EIA 604-5-199
- OFNR/LSZH (low smoke zero halogen) jacket
- Supports InfiniBand, Ethernet and NVLink protocols
Description
The NVIDIA MFP7E10-Nxxx MPO-12/APC-to-MPO12/APC (8 fibers) passive optical single mode cable, is designed for linking InfiniBand and Ethernet multimode twin-port OSFP and single-port OSFP and QSFP112 transceivers together.The Multiple Push On, 12 fiber, Angled Polished Connectors (MPO-12/APC) uses 8 active fibers to transmit light, and 4 inactive fibers as strength members. The APC end has a 8-degree polished angle to deflect internal optical back reflections from entering the transceiver and distorting the signal quality.
Twin-port OSFP 800Gb/s transceivers support two 4-channel fibers which are linked to other twin-port OSFP, single port OSFP or QSFP112 400Gb/s transceivers.
The fibers are “crossover”, Type-B cables that enable directly attaching two transceivers together and aligning the transmit laser fiber on pin 1 to “crosses over” and align with pin 12 of the opposite fiber end transceiver photodetector.
Typical usecase is linking twin port OSFP switches to each other, and to ConnectX-7® network adapters and/or BlueField-3® Data Processing Units (DPUs) in compute and storage servers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance, and durability. Mellanox optical solutions provide short, medium, and long reach scalability for all topologies, utilizing innovative optical technologies to enable high signal integrity and reliability.
Specifications
| Technical details | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH), Optical fiber non-conductive riser (OFNR) |
| Fiber mode structure | Single-mode |
| Connector 1 | MPO |
| Connector 2 | MPO |
| Cable type | OFNR |
| Cable length | 590.6" (15 m) |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Features | |
| Jacket material | Low smoke zero halogen (LSZH), Optical fiber non-conductive riser (OFNR) |
| Fiber mode structure | Single-mode |
| Connector 1 | MPO |
| Connector 2 | MPO |
| Cable type | OFNR |
| Cable length | 590.6" (15 m) |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Certification | IEC 61754-7, ANSI/TIA/EIA 604-5-199 |
| Product colour | Aqua color |
| Connector 2 gender | Female |
| Connector 1 gender | Female |
| Connector polish type | APC |
| Plug and Play | Yes |
| Certificates | |
| Certification | IEC 61754-7, ANSI/TIA/EIA 604-5-199 |
| Weight & dimensions | |
| Cable length | 590.6" (15 m) |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
