Eaton 9SX1500G uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1350 W 8 AC outlet(s)

1500 VA, 1350 W, 208V, C14 input, Outputs: (8) C13, 9.9"Hx6.3"Wx17.1"D, 41.9 lb., network card optional

Description

Eaton 9SX UPS
Reliable power protection for the edge and beyond
Combining reliable double-conversion topology, internal static bypass and an easy-to-read LCD menu display, the Eaton 9SX UPS provides the highly efficient and reliable power you expect from a 9-series UPS in a convenient tower form factor. Network, Modbus, relay and signal input functionality enables integration into a variety of lot and IIoT applications.

Protect the business you've worked hard to grow
Reliable power for critical systems
The 9SX offers the robust double-conversion, online power protection needed for medical, light industrial, automation and mission-critical IT applications. With zero transfer time to battery, continuous filtering of power and an internal, automatic static bypass, the 9SX ensures performance and compatibility.

Increased battery life
Eaton offers ABM technology that increases battery service life by 50 percent. ABM uses advanced charging techniques to extend battery life and provides advanced notice before batteries fail.

Get more so you can do more
More power
By providing up to 28 percent more wattage compared to traditional UPSs, the 9SX allows you to connect more devices and leave room for expanding IT systems.

More control
Automate power delivery by utilizing switchable, programmable outlets, without the need of a third-party device or PDU. Programmable signal input through the RPO port also enables the UPS to change operating modes in reaction to external events.

Gain efficiencies in your operations
Integrate and standardize communications
Maximize uptime with remote monitoring and management of your 9SX via an Eaton connectivity card and software. SNMP, serial, USB, Modbus and relay options enable integration regardless of the system architecture. Remote Power Off/Remote On Off signal input also manages UPS On/Off state, preserving battery life during process shutdown.

Advanced LCD interface
Simplify UPS monitoring with Eaton's advanced LCD display. Easy access to UPS alarm history, energy logs, unit serial numbers and firmware versions enables first-time issue resolution right at the source. Eight user-selectable languages ensure success for global deployments.

Services and support
Eaton provides product support 24 hours a day, 7 days a week. From battery replacement to full UPS service plans, Eaton has one of the top service models in the industry.

Specifications

Power
Output frequency	60 Hz
Output power factor	0.9
Input power factor	0.99
Output power	1350 W
Input operation voltage (max)	208 V
Output operation voltage (min)	200 V
Output operation voltage (max)	250 V
Output power capacity	1.5 kVA
Input frequency	60 Hz
Performance
UPS topology	Double-conversion (Online)
Waveform	Sine
LED indicators	Alarm, Power, Battery level
Features
Output frequency	60 Hz
UPS topology	Double-conversion (Online)
Waveform	Sine
Output power factor	0.9
Input power factor	0.99
Output power	1350 W
Input operation voltage (max)	208 V
Output operation voltage (min)	200 V
Output operation voltage (max)	250 V
Output power capacity	1.5 kVA
Input frequency	60 Hz
Ports & interfaces
USB port	Yes
Serial interface type	RS-232
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Network card slot	Yes
Battery

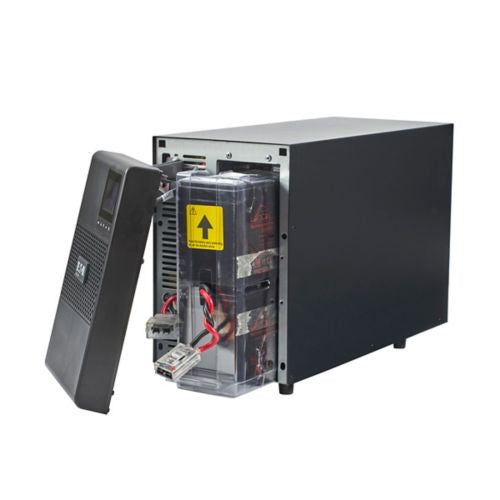

Hot-swap battery	Yes
Design
Rack capacity	0U
Form factor	Tower
LED indicators	Alarm, Power, Battery level
Product colour	Black
Control type	Buttons
Display type	LCD
Network card slot	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Technical details
Output frequency	60 Hz
Compliance certificates	Trade Agreements Act (TAA), Federal Communications Commission (FCC), cULus
Certificates
Compliance certificates	Trade Agreements Act (TAA), Federal Communications Commission (FCC), cULus
Packaging content

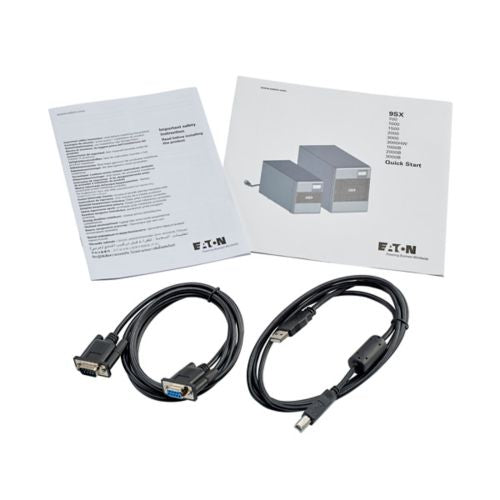

Cables included	Input power cable, RS-232, USB cable
Weight & dimensions
Weight	37.3 lbs (16.9 kg)
Width	6.3" (160 mm)
Height	9.9" (251.5 mm)
Depth	17.1" (434.3 mm)
Packaging data
Cables included	Input power cable, RS-232, USB cable
