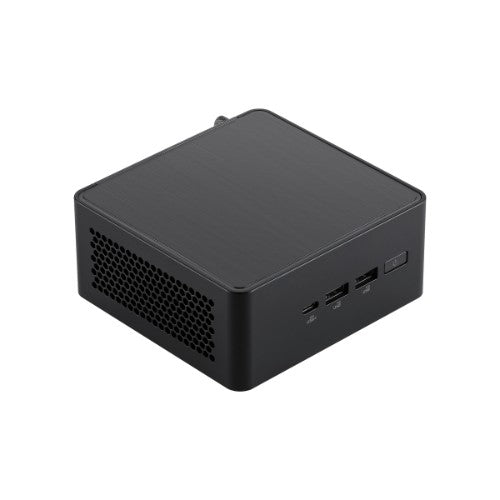

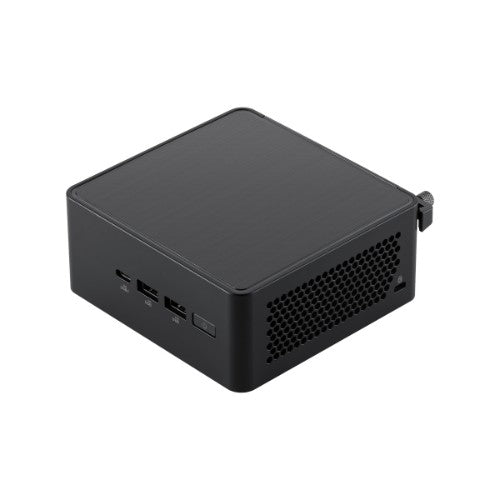

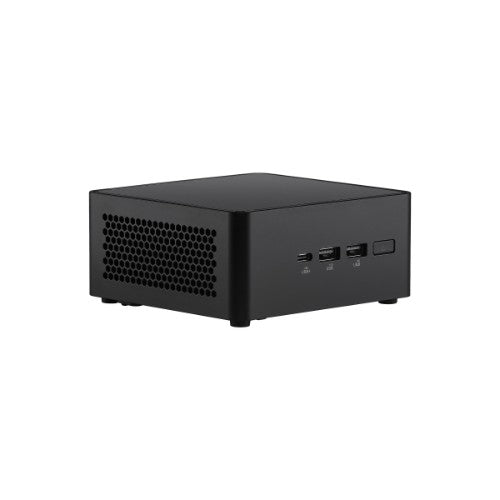

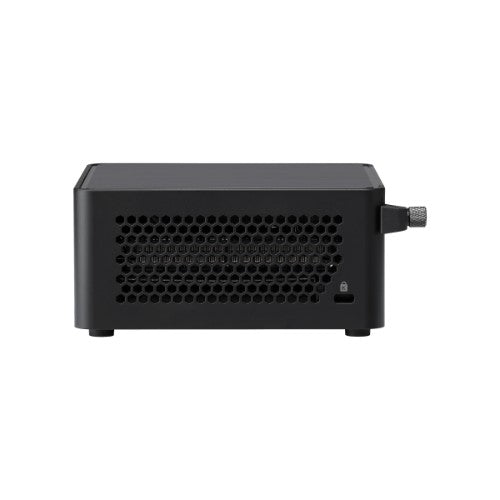

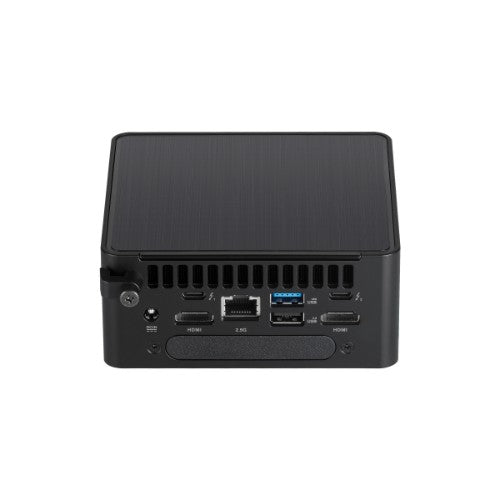

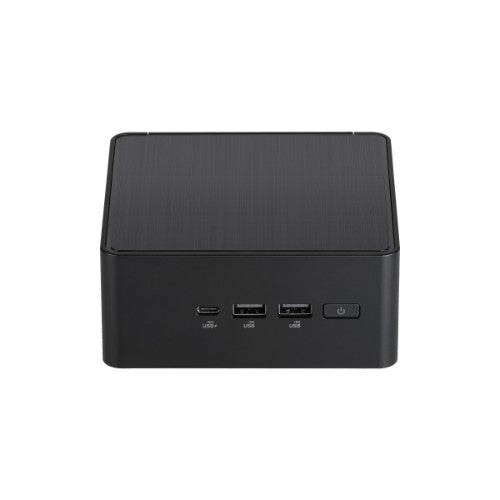

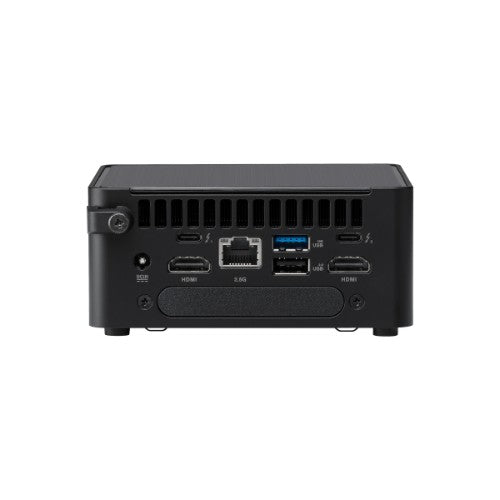

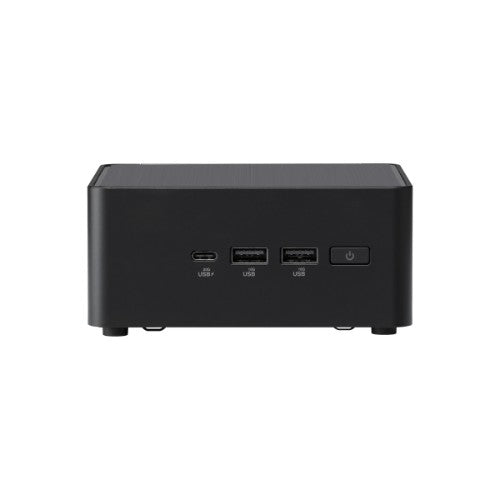

ASUS NUC 14 Pro RNUC14RVHV70000UI Black 165H

NUC 14 Pro Kit, Intel Core Ultra 7 165H processor, 117mm x 112mm

Key Features

• Performance: Delivers best-in-class performance among comparable mini-PC offerings
• Manageability: Most comprehensive mini-PC with Intel vPro® Enterprise for exceptional security, manageability, and stability
• AI Ready: Harnesses the prowess of Intel® Core™ Ultra processors’ three AI engines for high throughput, low power, and fast response
• Wi-Fi Sensing: Takes advantage of Wi-Fi sensing to deliver instant availability while reducing power consumption
• Wireless Connectivity: Delivers seamless connectivity for certified Bluetooth® dongle-free experiences
• Customizable: Designed for toolless chassis access making upgrades easier, safer, and faster

Description

Smaller, Faster, Better, AI Ready
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.

Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifes pan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.

With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.

Specifications

Processor
Built-in processor	Yes
Processor model	165H
Processor boost frequency	5 GHz
Processor threads	22
Processor cores	16
Processor family	Intel Core Ultra 7
Processor manufacturer	Intel
Processor cache	24 MB
Performance cores	6
Efficient cores	8
Performance-core Max Turbo Frequency	5 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Performance-core base frequency	1.4 GHz
Efficient-core base frequency	0.9 GHz
Low Power Efficient-cores	2
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor cache type	Smart Cache
Processor generation	Intel® Core™ Ultra (Series 1)
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Maximum internal memory	96 GB
Video
On-board graphics card	Yes
Graphics card family	Intel
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5,M.2
Maximum storage capacity	4 TB
Graphics
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel Arc Graphics
Audio
Built-in speaker(s)	No
Network
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Bluetooth version	5.3
Bluetooth	Yes
Ethernet LAN	Yes
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ports & interfaces
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
HDMI version	2.1
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
Thunderbolt 4 ports quantity	2
Design
Product type	Mini PC barebone
Cable lock slot type	Kensington
Cable lock slot	Yes
On/off switch	Yes
Cooling type	Active
Product colour	Black
Processor special features
Low Power Efficient-cores	2
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Low Power Efficient-core Base Frequency	700 MHz
Colour
Product colour	Black
Technical details
Cable lock slot type	Kensington
Cable lock slot	Yes
Processor cores	16
Cooling type	Active
Management features
On/off switch	Yes
Power
Power supply type	External AC adapter
Power supply	120 W
Weight & dimensions
Width	4.61" (117 mm)
Depth	4.41" (112 mm)
Height	2.13" (54 mm)
Weight	21.2 oz (600 g)
