APC SRT3000RMXLW-IEC uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 8 AC outlet(s)

Smart-UPS On-Line, 3kVA, Rackmount 2U, 208V/230V, 6x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/ rail kit

Description

Stay always online and prevent data loss
An APC Smart-UPS On-Line always supplies perfectly clean power to all connected equipment thanks to its double conversion technology. Even power failures do not affect this. The APC Smart-UPS On-Line then automatically supplies emergency power without having to switch. This prevents unwanted failure of, for example, a PC, server, storage or switch. With the included Powershute software, you can even have critical IT hardware shut down automatically and in a controlled manner. This prevents data loss, downtime and physical damage to hardware.

Extend the runtime
You can easily increase the number of minutes that the APC SRT3000RMXLW-IEC can supply emergency power independently by connecting external battery packs (SRT96RMBP). A runtime of several hours is even possible.

Availability
The Smart-UPS On-Line has an internal bypass and uses double conversion, which maximizes the availability and lifespan of connected hardware. It also makes the UPS compatible with an emergency generator. The On-Line double conversion technology ensures clean, uninterrupted power to protected equipment even when generator power is used.

Safety
In addition, a Smart-UPS On-Line protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for business use.

Easy to use

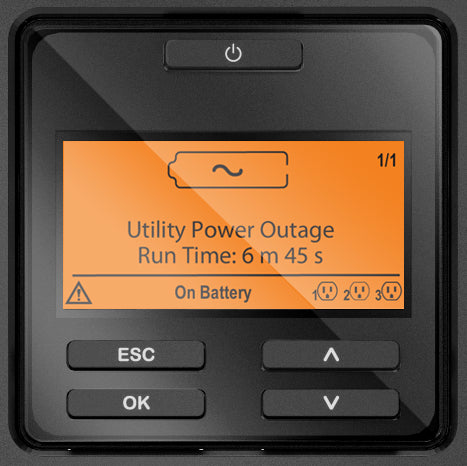

The APC Smart-UPS SRT is easy to operate thanks to a tiltable graphic LCD screen. You can also connect this UPS directly to your network with the optional APC Network Management Card (ap9640 or ap9641). This makes the APC UPS easy to manage remotely and it can send a shutdown signal to multiple physical and/or virtual servers via the network.

Extend the lifespan
The internal battery cartridge (APCRBC152) can be easily, safely and independently replaced by the user. This without having to switch off the APC SRT3000RMXLW-IEC or connected equipment. This way you can easily and cheaply extend the life of the APC Smart-UPS and your equipment will always remain online.

Worldwide
Because this UPS can handle 208 or 230 volts on both the incoming and outgoing side, this UPS can be used worldwide.

Warranty extension
The factory warranty of the SRT3000RMXWI-IEC is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-05).


This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 6x IEC 60320 C13, 2x IEC 60320 C19 outlets, and 2x IEC jumpers. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 6x IEC 60320 C13, 2x IEC 60320 C19 outlets, and 2x IEC jumpers. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It conforms to CE, CE Mark, CSA C22.2 No 107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR V2.0 (USA), FCC part 15 class A, OSHPD, RCM, UL 1778, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Specifications

Power
Output frequency	50/60 Hz
Output frequency regulation	50/60 Hz
Output power	2700 W
Input operation voltage (min)	100 V
Input operation voltage (max)	275 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	340 J
Efficiency	93.5%
Emergency Power Off (EPO)	Yes
Crest factor	3:1
Output power capacity	3 kVA
Input frequency	40/70 Hz
Ports & interfaces
Cable length	96.1" (2.44 m)
USB port	Yes
Serial interface	Yes
Serial interface type	RJ-45
SmartSlot	Yes
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
Number of output IEC jumpers	2
SmartConnect port	No
Performance
UPS topology	Double-conversion (Online)
Waveform	Sine
Auto-restart	Yes
LED indicators	Yes
Surge protection	Yes
Noise level	55 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Web-based management	Yes
UPS topology	Double-conversion (Online)
Waveform	Sine
Output frequency regulation	50/60 Hz
Auto-restart	Yes
Output power	2700 W
Input operation voltage (min)	100 V
Input operation voltage (max)	275 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	340 J
Efficiency	93.5%
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Noise level	55 dB
Crest factor	3:1
Audible alarm(s)	Yes
Output power capacity	3 kVA
Input frequency	40/70 Hz
Battery
Battery life (max)	5 year(s)
Battery capacity	505 VAh
Number of batteries supported	1
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h
Typical backup time at half load	11.8 min
Typical backup time at full load	4 min
Hot-swap battery	Yes
Cold start	Yes
Automatic battery test	Yes
Design
International Protection (IP) code	IP20
Rack capacity	2U
Form factor	Rackmount/Tower
LED indicators	Yes
Product colour	Black
Certification	CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Cable length	96.1" (2.44 m)
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)
Technical details
Output frequency	50/60 Hz
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	4983.65
Compliance certificates	RoHS
Certificates
Certification	CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Compliance certificates	RoHS
Management features
Web-based management	Yes
Packaging content
Rack mount kit	Yes
Quick installation guide	Yes
Cables included	USB cable
Management card included	No
Bracket	Yes
Warranty card	Yes
Software CD	Yes
Sustainability
Sustainability certificates	ENERGY STAR
Weight & dimensions
Package width	23.6" (599 mm)
Package depth	34.3" (871 mm)
Package height	9.69" (246 mm)
Weight	69 lbs (31.3 kg)
Width	17" (432 mm)
Package weight	88 lbs (39.9 kg)
Height	3.35" (85 mm)
Depth	25" (635 mm)
Packaging data
Rack mount kit	Yes
Quick installation guide	Yes
Cables included	USB cable
Bracket	Yes
Warranty card	Yes
Software CD	Yes
Package width	23.6" (599 mm)
Package depth	34.3" (871 mm)
Package height	9.69" (246 mm)
Package weight	88 lbs (39.9 kg)
Management card included	No
Logistics data
Products per pallet	6 pc(s)
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	4983.65
Other features
Nominal output voltage	230 V
Nominal input voltage	230 V
