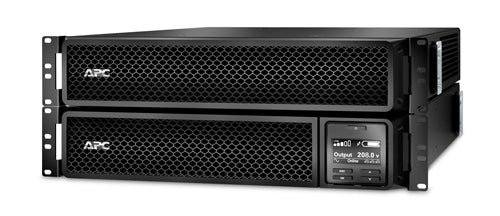

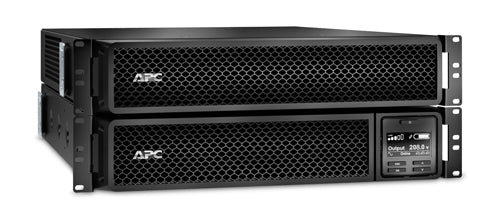

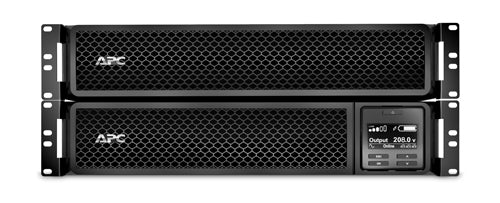

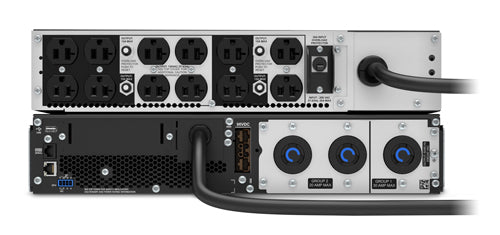

APC Smart-UPS uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 14 AC outlet(s)

27kW, 3kVA, 208V, 50/60Hz, 1.83m, Lead-Acid, RJ-45, SmartSlot, USB, LCD, 340J, 432x635x170mm, 4U, 74.39kg, Black

Description

Marketing Features

- Save time with easy and convenient remote accessibility.
Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
- Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
- Avoids costly power problems by keeping your IT equipment and data protected and available.
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
- Low operating and maintenance costs with proven reliability and intelligent battery management.
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.

Specifications

Power
Output frequency	50/60 Hz
Output power	2700 W
Input operation voltage (min)	100 V
Input operation voltage (max)	275 V
Output operation voltage (min)	120 V
Output operation voltage (max)	208 V
Surge energy rating	340 J
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	2%
Crest factor	3:1
Output power capacity	3 kVA
Input frequency	40 - 70 Hz
Ports & interfaces
Cable length	72" (1.83 m)
USB port	Yes
Serial interface	Yes
Serial interface type	RJ-45
SmartSlot	Yes
AC outlets quantity	14 AC outlet(s)
AC outlet types	NEMA L5-20R, NEMA L6-20R
Power plug	NEMA L6-20P
Ethernet LAN (RJ-45) ports	1
Performance
UPS topology	Double-conversion (Online)
Waveform	Sine
Auto-restart	Yes
Surge protection	Yes
Noise level	55 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Web-based management	Yes
UPS topology	Double-conversion (Online)
Waveform	Sine
Auto-restart	Yes
Output power	2700 W
Input operation voltage (min)	100 V
Input operation voltage (max)	275 V
Output operation voltage (min)	120 V
Output operation voltage (max)	208 V
Surge energy rating	340 J
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	2%
Noise level	55 dB
Crest factor	3:1
Audible alarm(s)	Yes
Output power capacity	3 kVA
Input frequency	40 - 70 Hz
Battery
Battery life (max)	5 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h
Hot-swap battery	Yes
Cold start	Yes
Automatic battery test	Yes
Replacement battery cartridge	APCRBC152
Design
International Protection (IP) code	IP20
Rack capacity	4U
Form factor	Rackmount/Tower
Product colour	Black
Certification	CSA C22.2 No.107.3-05, FCC Part 15 Class A, UL 1778, REACH
Cable length	72" (1.83 m)
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)
Technical details
Output frequency	50/60 Hz
Sustainability certificates	ENERGY STAR
Compliance certificates	RoHS
Certificates
Certification	CSA C22.2 No.107.3-05, FCC Part 15 Class A, UL 1778, REACH
Compliance certificates	RoHS
Management features
Web-based management	Yes
Packaging content
Rack mount kit	Yes
Quick installation guide	Yes
Cables included	USB cable
Resource CD	Yes
Warranty card	Yes
Software CD	Yes
Sustainability
Sustainability certificates	ENERGY STAR
Weight & dimensions
Package width	24.5" (622 mm)
Package depth	37.5" (952 mm)
Package height	19.7" (500 mm)
Weight	164 lbs (74.4 kg)
Width	17" (432 mm)
Package weight	198 lbs (89.8 kg)
Height	6.69" (170 mm)
Depth	25" (635 mm)
Packaging data
Resource CD	Yes
Rack mount kit	Yes
Quick installation guide	Yes
Cables included	USB cable
Warranty card	Yes
Software CD	Yes
Package width	24.5" (622 mm)
Package depth	37.5" (952 mm)
Package height	19.7" (500 mm)
Package weight	198 lbs (89.8 kg)
Logistics data
Products per pallet	3 pc(s)
