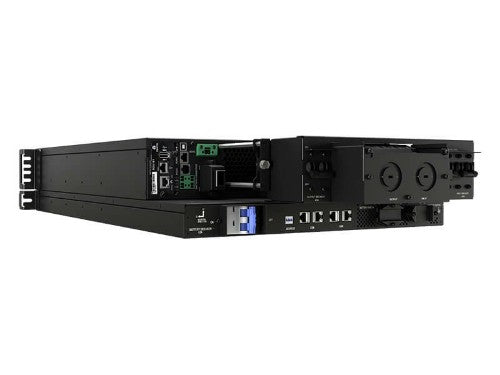

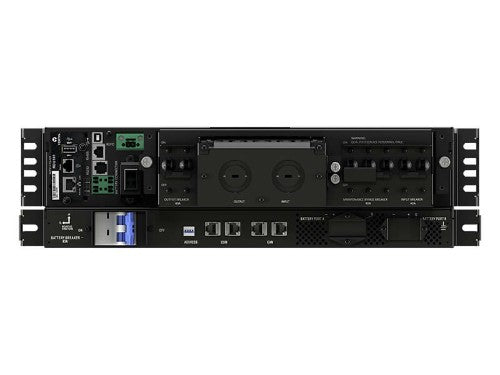

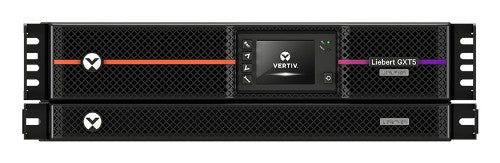

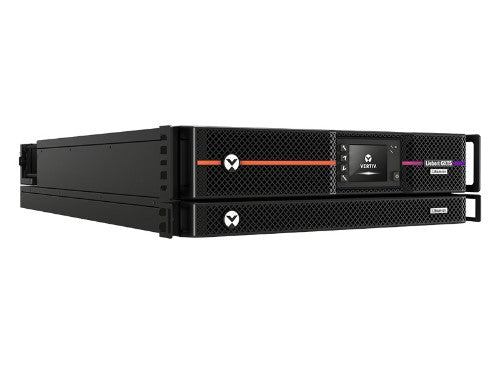

Vertiv Liebert GXT5LI-8000GVRT3UXLN uninterruptible power supply (UPS) Double-conversion (Online) 8 kVA 8000 W

Liebert GXT5 Lithium-Ion Online UPS 8000VA/8000W 200V-240V (Default: 230V) 3U Rack/Tower (GXT5LI-8000GVRT3UXLN)

Key Features

• Lithium-Ion UPS batteries last up to 3x longer than VRLA batteries
• Offers lowest total cost of ownership (TCO) with fewer or no battery replacements over its lifetime
• Environmentally friendly UPS reduces battery disposal and recycling with lower replacement rates
• Longer runtime, faster recharge time and scalable runtime with external battery cabinets
• Integrated MBC allows the user to power connected equipment even during UPS maintenance or replacement

Description

The Vertiv Liebert GXT5 Lithium-Ion UPS protects critical IT applications against outages and various power disturbances. This online UPS offers the highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations. Lithium-Ion batteries require fewer battery replacements and last up to 3x as long as traditional VRLA batteries reducing maintenance, labor, and replacement costs (resulting in the lowest TCO). The battery offers industry-leading runtime to protect critical equipment during an unexpected power loss. It also gives better performance at higher temperatures, supports up to 10 times more discharge cycles, and delivers faster recharge times. It is hot-swappable and user-replaceable, so you can easily replace it without disrupting power to connected equipment. The Integrated Maintenance Bypass Cabinet (MBC) allows the user to continue to power connected equipment even during UPS maintenance or replacement.

Specifications

Power
Output power factor	1
Output power	8000 W
Input operation voltage (min)	176 V
Input operation voltage (max)	288 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Efficiency	94%
Emergency Power Off (EPO)	Yes
Output power capacity	8 kVA
ECO mode	Yes
Input frequency	40 - 70 Hz
Performance
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Surge protection	Yes
Power protection features	Over voltage, Under voltage
Noise level	56 dB
Features
Country of origin	China
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Output power factor	1
Output power	8000 W
Input operation voltage (min)	176 V
Input operation voltage (max)	288 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Efficiency	94%
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Power protection features	Over voltage, Under voltage
Noise level	56 dB
Output power capacity	8 kVA
ECO mode	Yes
Input frequency	40 - 70 Hz
Ports & interfaces
USB port	Yes
AC outlet types	Hardwire
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery recharge time	2 h
Typical backup time at half load	15 min
Typical backup time at full load	5 min
Hot-swap battery	Yes
Design
Country of origin	China
Rack capacity	3U
Form factor	Rackmount/Tower
Product colour	Black
Safety	IEC 62040-1:2008+A1 2013, IEC 62619 1st Ed., UL 1642 (Li-Ion Battery Cells), UL 1973 (Li-Ion Battery Pack w/UPS), UL 1778, CSA 22.2 No. 107.3
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Sustainability certificates	ENERGY STAR
Compliance certificates	REACH, RoHS, WEEE
Certificates
Compliance certificates	REACH, RoHS, WEEE
Safety	IEC 62040-1:2008+A1 2013, IEC 62619 1st Ed., UL 1642 (Li-Ion Battery Cells), UL 1973 (Li-Ion Battery Pack w/UPS), UL 1778, CSA 22.2 No. 107.3
Packaging content
Batteries included	Yes
Sustainability
Sustainability certificates	ENERGY STAR
Safety regulation & standards
Safety	IEC 62040-1:2008+A1 2013, IEC 62619 1st Ed., UL 1642 (Li-Ion Battery Cells), UL 1973 (Li-Ion Battery Pack w/UPS), UL 1778, CSA 22.2 No. 107.3
Weight & dimensions
Package width	31.4" (798 mm)
Package depth	39.3" (998 mm)
Package height	20.9" (532 mm)
Weight	57.3 lbs (26 kg)
Width	16.9" (430 mm)
Package weight	165.3 lbs (75 kg)
Height	5.24" (133 mm)
Depth	35" (890 mm)
Packaging data
Package width	31.4" (798 mm)
Package depth	39.3" (998 mm)
Package height	20.9" (532 mm)
Package weight	165.3 lbs (75 kg)
Logistics data
Country of origin	China
