Tripp Lite PDUMV32HVNETLX power distribution unit (PDU) 24 AC outlet(s) 0U Black

7.7kW Single-Phase Switched PDU with LX Platform Interface, 230V Output, IEC 309 32A Blue, 10 ft. (3.05 m) Cord, 0U, TAA

Key Features

• 20 C13 and 4 C19 230V outlets distribute clean power to connected rack equipment
• Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
• Pre-installed WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature
• Remote power monitoring and control reduces on-site visits and maintenance costs

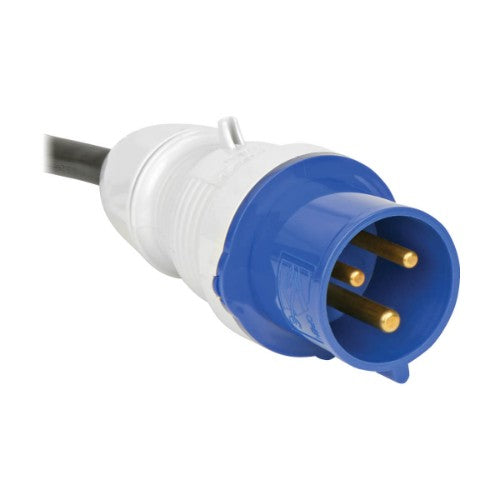

• 10 ft. (3.1 m) power cord with IEC 309 32A Blue (2P+E) input connects to compatible AC source
• Digital ammeter for on-site load monitoring helps prevent power overloads

Description

0U PDU Distributes, Monitors and Manages Network-Grade AC Power
Recommended for data centers, server rooms and network closets, this 0U vertical PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. You can more efficiently manage network power consumption and properly balance loads without having to visit the site. Reducing the number of on-site visits can help lower the cost of data center maintenance.

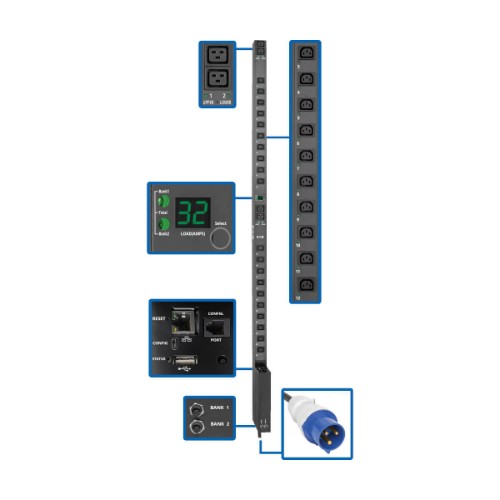

24 Outlets Dispense Clean Power
During normal operation, 24 individually controllable outlets—20 C13 and four C19—distribute AC power to connected equipment. Each 230V outlet is accompanied by an LED that illuminates when the outlet is ramped up and ready to be used. The outlets are split into two load banks, each protected by a circuit breaker that trips if the bank's connected load exceeds its maximum load rating. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.

Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the load for each outlet bank separately and the total connected load. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. The firmware can be easily upgraded to ensure the PDU continues to perform at its best as connected equipment adds new features.

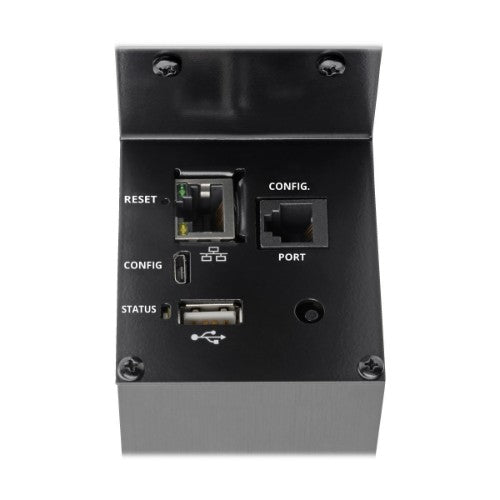

Built-In LX Platform Network Management Card Allows Remote Access 24/7
The built-in WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The PADM20 upgrade and PowerAlert Element Manager (PAEM) software form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations. PADM20’s Auto Probe feature allows a PDU with switched loads to automatically reboot devices if a network communication failure is detected. This preserves uptime and minimizes the time and expense associated with on-site support.

Easy to Install Vertically in an EIA-Standard 19 in. Rack
The 0U rack PDU (rPDU) mounts vertically using the included toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A 10-ft. (3.05 m) cord with IEC 309 32A Blue (2P+E) input plug connects the single-phase PDU to a compatible AC power source, generator or protected UPS system.

TAA-Compliant for GSA Schedule Purchases
The PDUMV32HVNETLX is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

2-Year Warranty
The PDUMV32HVNETLX is backed by a 2-year warranty, ensuring reliability and performance.

Specifications

Design
On/off switch	Yes
Type	Single-phase
PDU types	Switched
Mounting	Vertical
Product colour	Black
Certification	TAA
Rack capacity	0U
Ports & interfaces
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	IEC309
Features
Certification	TAA
Power
Nominal input voltage	230 V
Nominal output voltage	230 V
Maximum current	32 A
Certificates
Certification	TAA
Compliance certificates	RoHS
Weight & dimensions
Weight	12.5 lbs (5.67 kg)
Width	2.2" (56 mm)
Depth	4.25" (108 mm)
Height	69.9" (1776 mm)
Package width	6.57" (166.9 mm)
Package depth	73.3" (1862.1 mm)
Package height	5.43" (137.9 mm)
Package weight	16.7 lbs (7.58 kg)
Packaging data
Package width	6.57" (166.9 mm)
Package depth	73.3" (1862.1 mm)
Package height	5.43" (137.9 mm)
Package weight	16.7 lbs (7.58 kg)
Technical details
Compliance certificates	RoHS
Logistics data
Products per master (outer) case	1 pc(s)
Country of origin	Taiwan
