Tripp Lite

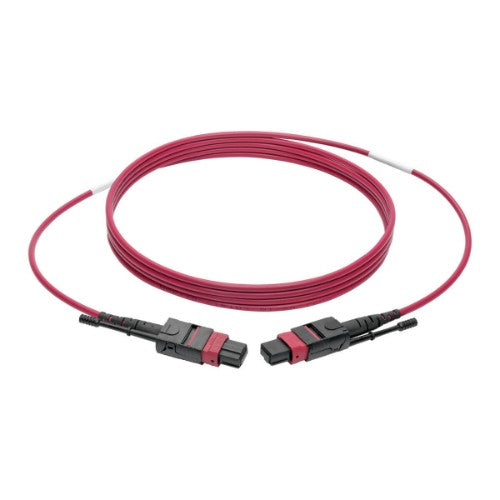

Tripp Lite N845-02M-12-MG InfiniBand/fibre optic cable 78.7" (2 m) MPO/MTP CMP Black, Magenta
SKU:
N845-02M-12-MG
Condition: New
$180.73 USD
Pickup currently not available
✔
Factory-Sealed
Sourced from authorized distributors
✔
Manufacturer Warranty
Terms set by the brand
✔
Enterprise Expertise
Business Procurement
Free standard shipping over $2,500
Delivery estimates are based on product availability, destination, fulfillment method, and qualifying order requirements. 30-day returns; 20% restocking fee on non-defective returns. Shipping policy · Return policy
Loading documents...
Need Help Before You Order?
Check compatibility, availability, or volume pricing with an IT procurement specialist.
Enterprise IT Procurement Built for Business
Source servers, networking, storage, workstations, and business technology through established distribution channels with dedicated procurement support.
1,700+
Business Accounts Supported
32,000+
Enterprise Hardware Products Available
Fast, Reliable Procurement Support
Reach out for responsive product availability, part numbers, pricing, and additional hardware needs.
4–8 Hrs
Typical RFQ Response Target
Multi-Vendor
Hardware Sourcing
Keep Your IT Projects Moving
For business hardware purchases and larger deployments, get shipment information, order coordination, and delivery support.
Manufacturer Warranty Coverage
Eligible products include warranty coverage provided by the original manufacturer according to applicable brand and product terms.
Brand Warranty TermsFactory-Sealed HardwareOEM Support Eligibility
A Trusted Source for Enterprise Hardware
Source factory-sealed IT hardware through established technology distribution channels, with support for individual purchases, BOM requests, and larger business requirements.
112+
Technology Brands
32,000+
Hardware Products Available
Key Features
100G MTP/MPO Multimode OM4 Plenum-Rated Fiber Optic Cable (F/F), 12 Fiber, 40/100GBASE-SR4, Push/Pull Tabs, Magenta, 2 m
The 12-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up circuit card and rack space for other cables. The cable is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards. Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. The plenum-rated jacket is perfect for connecting high-speed network components in ceilings, walls and ducts.
Key Features

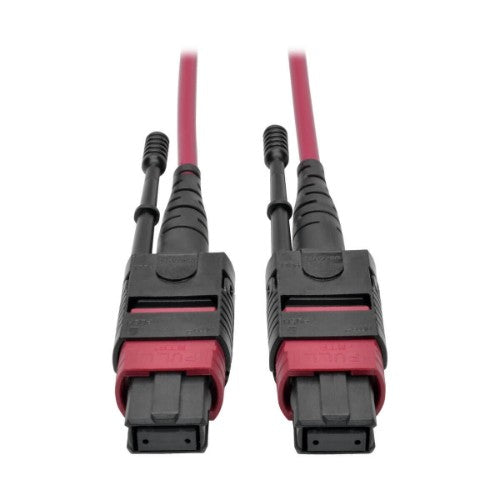

- Push/pull tab connectors install/remove with one hand

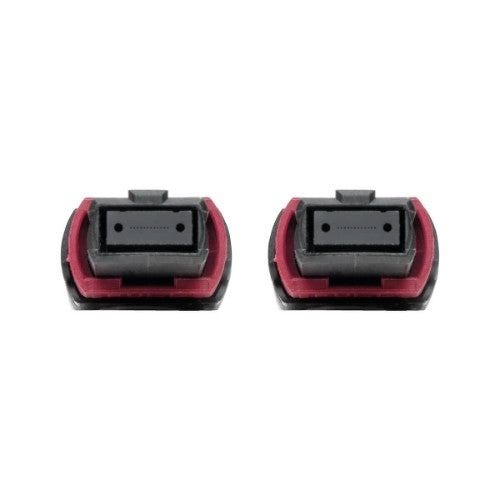

- 12-fiber MTP/MPO connectors with 12x density of SC connectors
- 100% tested for low insertion loss and back reflection
- Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections
- 50/125 OM4-rated multimode fiber
- Magenta color for easy OM4 identification
Description
The two-meter N845-02M-12-MG MTP/MPO Multimode Patch Cable supports 40/100 Gb Ethernet speeds and is designed for high-density connections between network equipment in telecommunication rooms and data centers. With two female MTP/MPO connectors, this OM4-rated multimode fiber optic cable is recommended for high-density fiber patching between data center MDFs (main distribution frames) and IDF (intermediate distribution frames). It’s colored magenta for instant identification as an OM4 cable. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections.The 12-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up circuit card and rack space for other cables. The cable is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards. Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. The plenum-rated jacket is perfect for connecting high-speed network components in ceilings, walls and ducts.
Specifications
| Features | |
|---|---|
| Fibre optic type | OM4 |
| Fiber mode structure | Multi-mode |
| Connector 1 | MPO/MTP |
| Connector 2 | MPO/MTP |
| Cable type | CMP |
| Cable length | 78.7" (2 m) |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Data transfer rate | 100 Gbit/s |
| Product colour | Black, Magenta |
| Connector 2 gender | Female |
| Connector 1 gender | Female |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Country of origin | China |
| Harmonized System (HS) code | 85447000 |
| Certificates | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Packaging data | |
| Package width | 7" (177.8 mm) |
| Package depth | 0.5" (12.7 mm) |
| Package height | 9" (228.6 mm) |
| Package weight | 1.06 oz (30 g) |
| Technical details | |
| Fiber mode structure | Multi-mode |
| Connector 1 | MPO/MTP |
| Connector 2 | MPO/MTP |
| Cable type | CMP |
| Cable length | 78.7" (2 m) |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Master (outer) case GTIN (EAN/UPC) | 10037332200270 |
| Compliance certificates | RoHS |
| Data transmission | |
| Data transfer rate | 100 Gbit/s |
| Weight & dimensions | |
| Cable length | 78.7" (2 m) |
| Package width | 7" (177.8 mm) |
| Package depth | 0.5" (12.7 mm) |
| Package height | 9" (228.6 mm) |
| Package weight | 1.06 oz (30 g) |
| Logistics data | |
| Master (outer) case width | 5.9" (149.9 mm) |
| Master (outer) case length | 4" (101.6 mm) |
| Master (outer) case height | 7.3" (185.4 mm) |
| Master (outer) case gross weight | 12.7 oz (360 g) |
| Products per master (outer) case | 10 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 85447000 |
| Master (outer) case GTIN (EAN/UPC) | 10037332200270 |
Product Specs
100G MTP/MPO Multimode OM4 Plenum-Rated Fiber Optic Cable (F/F), 12 Fiber, 40/100GBASE-SR4, Push/Pull Tabs, Magenta, 2 m
The 12-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up circuit card and rack space for other cables. The cable is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards. Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. The plenum-rated jacket is perfect for connecting high-speed network components in ceilings, walls and ducts.
Key Features
- Push/pull tab connectors install/remove with one hand
- 12-fiber MTP/MPO connectors with 12x density of SC connectors
- 100% tested for low insertion loss and back reflection
- Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections
- 50/125 OM4-rated multimode fiber
- Magenta color for easy OM4 identification
Description
The two-meter N845-02M-12-MG MTP/MPO Multimode Patch Cable supports 40/100 Gb Ethernet speeds and is designed for high-density connections between network equipment in telecommunication rooms and data centers. With two female MTP/MPO connectors, this OM4-rated multimode fiber optic cable is recommended for high-density fiber patching between data center MDFs (main distribution frames) and IDF (intermediate distribution frames). It’s colored magenta for instant identification as an OM4 cable. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections.The 12-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up circuit card and rack space for other cables. The cable is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards. Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. The plenum-rated jacket is perfect for connecting high-speed network components in ceilings, walls and ducts.
Specifications
| Features | |
|---|---|
| Fibre optic type | OM4 |
| Fiber mode structure | Multi-mode |
| Connector 1 | MPO/MTP |
| Connector 2 | MPO/MTP |
| Cable type | CMP |
| Cable length | 78.7" (2 m) |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Data transfer rate | 100 Gbit/s |
| Product colour | Black, Magenta |
| Connector 2 gender | Female |
| Connector 1 gender | Female |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Country of origin | China |
| Harmonized System (HS) code | 85447000 |
| Certificates | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Packaging data | |
| Package width | 7" (177.8 mm) |
| Package depth | 0.5" (12.7 mm) |
| Package height | 9" (228.6 mm) |
| Package weight | 1.06 oz (30 g) |
| Technical details | |
| Fiber mode structure | Multi-mode |
| Connector 1 | MPO/MTP |
| Connector 2 | MPO/MTP |
| Cable type | CMP |
| Cable length | 78.7" (2 m) |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Master (outer) case GTIN (EAN/UPC) | 10037332200270 |
| Compliance certificates | RoHS |
| Data transmission | |
| Data transfer rate | 100 Gbit/s |
| Weight & dimensions | |
| Cable length | 78.7" (2 m) |
| Package width | 7" (177.8 mm) |
| Package depth | 0.5" (12.7 mm) |
| Package height | 9" (228.6 mm) |
| Package weight | 1.06 oz (30 g) |
| Logistics data | |
| Master (outer) case width | 5.9" (149.9 mm) |
| Master (outer) case length | 4" (101.6 mm) |
| Master (outer) case height | 7.3" (185.4 mm) |
| Master (outer) case gross weight | 12.7 oz (360 g) |
| Products per master (outer) case | 10 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 85447000 |
| Master (outer) case GTIN (EAN/UPC) | 10037332200270 |
