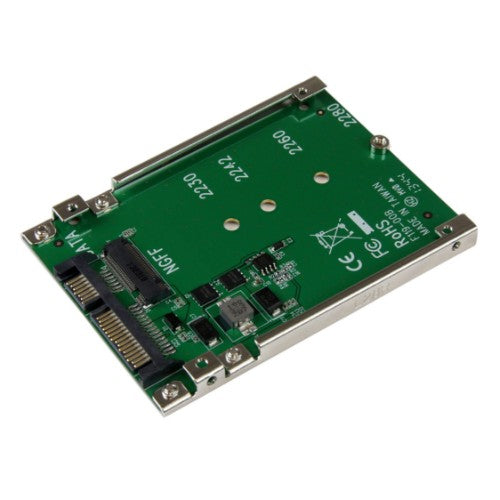

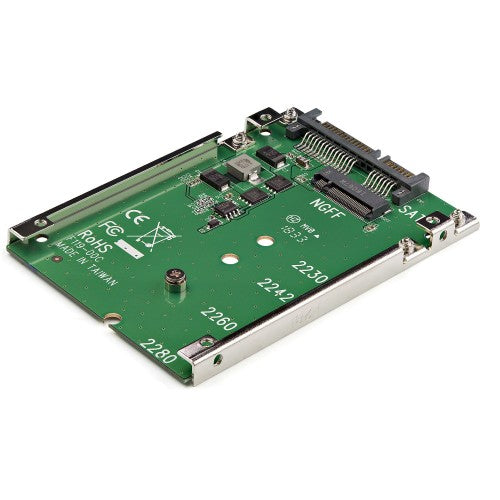

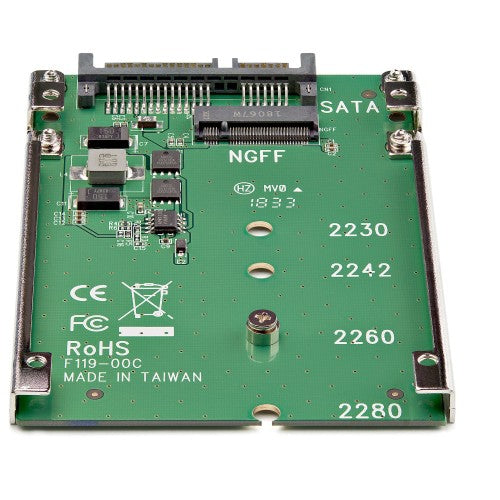

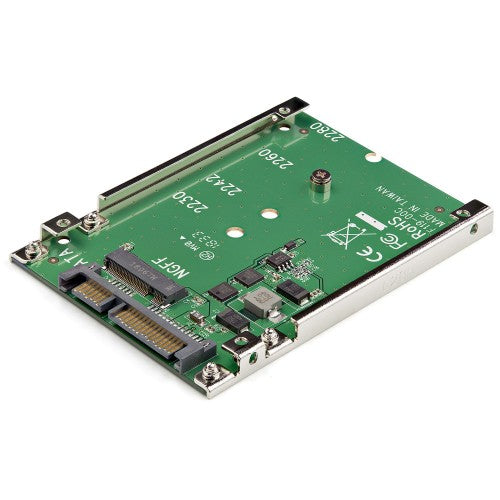

StarTech.com SAT32M225 interface cards/adapter Internal M.2

StarTech M.2 SATA SSD to 2.5" SATA Adapter [NOT NVMe], Open-Frame Bracket, 7mm High, M2 Hard Drive Adapter - TAA

Key Features

• BOOST SYSTEM PERFORMANCE: Increase system performance by adding the speed of an M2 SSD in any 2.5" SATA application with the M2 SSD to 2.5in SATA Adapter; Open design maximizes heat dissipation to protect the health of your drive

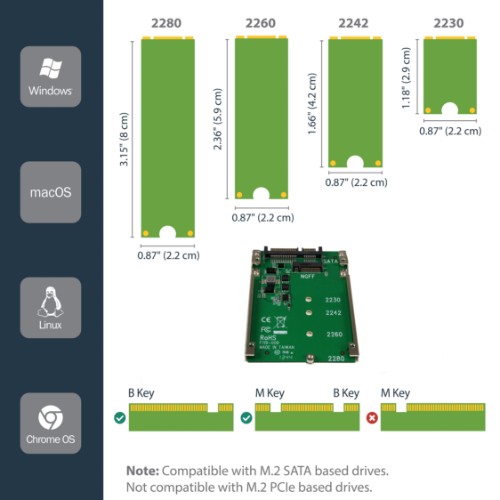

• BROAD COMPATIBILITY: The M2 to SATA converter supports full length M2 SDD solid state drives and is compatible with other sizes including: 2230, 2242, 2260, and 2280; NOTE: Not compatible with M.2 NVMe or AHCI PCI-Express SSDs
• INCREASED TRANSFER SPEEDS: Utilize the full potential of your SATA III controller with an M2 SSD, reducing your data transfer bottleneck with file transfer speeds up to 6Gbps; Operating Temperature: -40°F to 185°F; Supports B Key/M+B Key M2 SATA SSDs
• HASSLE-FREE SETUP: This M2 hard drive adapter offers fast and easy setup with no drivers to install; Mounting hardware included with M2 SSD to SATA adapter; Supports 7mm or larger 2.5in SATA bays
• THE IT PRO'S CHOICE: IT professionals choice for over 30 years, this TAA compliant 2.5in M.2 SATA adapter is backed for 2 years, including free 24/5 North America based multi-lingual assistance

Description

M.2 SATA NGFF to 2.5 in. SATA | 7mm High | SATA 6Gbps | Open Frame

Vastly increase the performance of your system by adding the speed of an M.2 SATA SSD in any 2.5" SATA application, with this M.2 SATA SSD to 2.5in SATA adapter.

Boost System Performance

Utilize the full potential of your SATA III controller, with an M.2 SATA SSD, reducing your data transfer bottleneck with file transfer speeds up to 6Gbps. This M.2 SATA NGFF to SATA adapter can also save you money by reducing your power consumption over regular platter drives.

Hassle-Free Setup

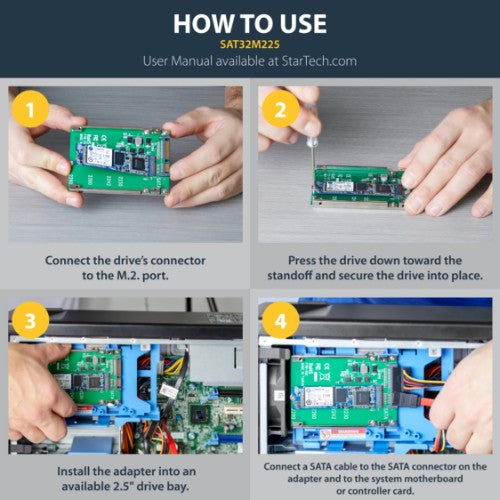

This M.2 SATA to 2.5 in. SATA adapter offers a fast an easy setup with no drivers to install. The mounting hardware is also included with the M.2 SATA SSD to SATA adapter for a quick installation.

Open-Frame Design

The M.2 SATA SSD to 2.5 in. SATA converter helps protect the health of your drive with an open-frame design that maximizes heat dissipation.

SAT32M225 is backed by a StarTech.com 2-year warranty, and lifetime technical support.

Specifications

Ports & interfaces
Internal	Yes
Output interface	M.2
SATA revision	3.0
Host interface	SATA
Technical details
Data transfer rate (max)	6 Gbit/s
Compliance certificates	RoHS
Performance
Hot-swap	No
Data transfer rate (max)	6 Gbit/s
Product colour	Green
Harmonized System (HS) code	84733020
Certificates
Certification	CE, FCC
Colour
Product colour	Green
Design
Hot-swap	No
Internal	Yes
Product colour	Green
Certification	CE, FCC
Features
Data transfer rate (max)	6 Gbit/s
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes

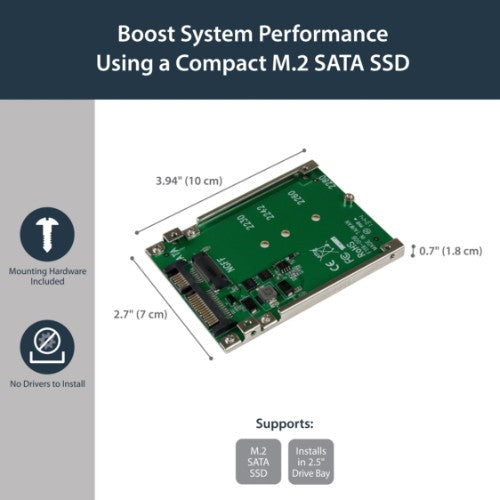

Weight & dimensions
Width	2.76" (70 mm)
Depth	3.94" (100 mm)
Height	0.276" (7 mm)
Weight	1.27 oz (36 g)
Package width	5.59" (142 mm)
Package depth	6.89" (175 mm)
Package height	1.3" (33 mm)
Package weight	3.6 oz (102 g)
Packaging data
Manual	Yes
Package width	5.59" (142 mm)
Package depth	6.89" (175 mm)
Package height	1.3" (33 mm)
Package weight	3.6 oz (102 g)
Screws included	Yes
Logistics data
Products per master (outer) case	60 pc(s)
Master (outer) case width	19.8" (502 mm)
Master (outer) case length	15.6" (397 mm)
Master (outer) case height	12.8" (326 mm)
Harmonized System (HS) code	84733020

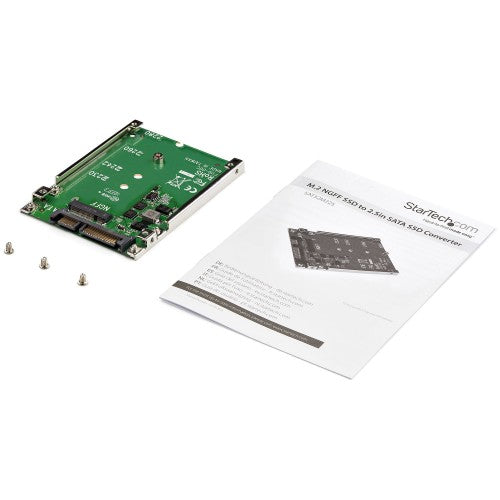

Packaging content
Manual	Yes
Screws included	Yes
