StarTech.com

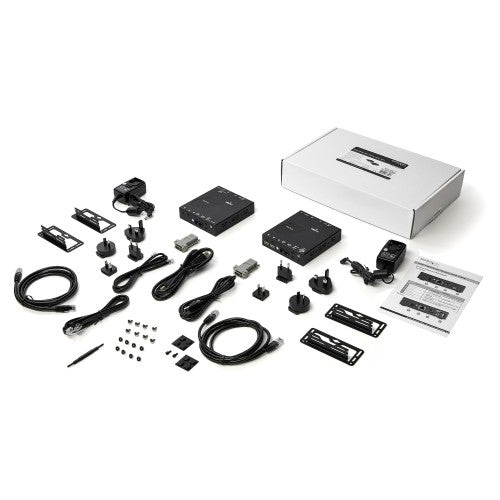

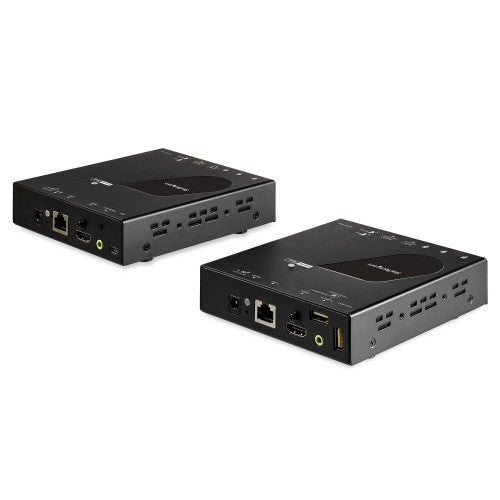

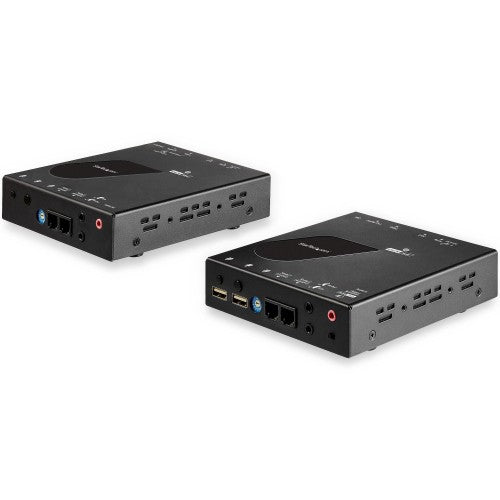

StarTech.com SV565HDIP KVM switch Black
SKU:
SV565HDIP
Condition: New
$702.16 USD
Pickup currently not available
✔
Factory-Sealed
Sourced from authorized distributors
✔
Manufacturer Warranty
Terms set by the brand
✔
Enterprise Expertise
Business Procurement
Free standard shipping over $2,500
Delivery estimates are based on product availability, destination, fulfillment method, and qualifying order requirements. 30-day returns; 20% restocking fee on non-defective returns. Shipping policy · Return policy
Loading documents...
Need Help Before You Order?
Check compatibility, availability, or volume pricing with an IT procurement specialist.
Enterprise IT Procurement Built for Business
Source servers, networking, storage, workstations, and business technology through established distribution channels with dedicated procurement support.
1,700+
Business Accounts Supported
32,000+
Enterprise Hardware Products Available
Fast, Reliable Procurement Support
Reach out for responsive product availability, part numbers, pricing, and additional hardware needs.
4–8 Hrs
Typical RFQ Response Target
Multi-Vendor
Hardware Sourcing
Keep Your IT Projects Moving
For business hardware purchases and larger deployments, get shipment information, order coordination, and delivery support.
Manufacturer Warranty Coverage
Eligible products include warranty coverage provided by the original manufacturer according to applicable brand and product terms.
Brand Warranty TermsFactory-Sealed HardwareOEM Support Eligibility
A Trusted Source for Enterprise Hardware
Source factory-sealed IT hardware through established technology distribution channels, with support for individual purchases, BOM requests, and larger business requirements.
112+
Technology Brands
32,000+
Hardware Products Available
Key Features
StarTech HDMI KVM Extender over IP - 4K 30Hz HDMI 2.0 & USB over IP LAN or CAT5e/CAT6 Ethernet (100m/330ft) - Remote KVM Switch/Console Transmitter/Receiver Extender Kit , TAA (SV565HDIP)
This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.
Supports UHD 4K 30Hz
The HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.
Hassle-Free Installation
With a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.
The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.
Versatile Configuration Options
The extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.
For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5e or CAT6 cabling up to 330 feet (100 meters).
SV565HDIP is backed by a 2-year warranty and free lifetime technical support.
Key Features
- REMOTE ACCESS: HDMI KVM extender over IP controls a KVM Switch/Console or PC from up to 328ft (100 m) away over Cat5e/6 Ethernet cable or over IP-enabled local area network (LAN) for unlimited range
- 4K VIDEO QUALITY: HDMI transmitter & extender kit achieves ultra HD resolutions up to 3840 x 2160 4K at 30Hz supports large video signage display at remote locations; Mounting hardware incl.
- HDMI / 4K 30Hz 3840 x 2160 / USB 2.0 HID / OS Independent / 2 x 3.5mm Analog Audio + Mic / Digital 7.1 Surround Audio / EDID Passthrough / IP Routable/Switchable / 100m Max Direct Connection / 2yr War
- ADVANCED AUDIO & VIDEO: EDID passthrough transfers display capabilities to the video source, maximizing compatibility between devices; Digital 7.1 surround audio over HDMI offers theatre-grade sound
- VIDEO WALL SUPPORT: Connect receivers (sold separately) to distribute HDMI signal to multiple displays at remote location or combine source to create a 9x9 video wall; Configure using an intuitive GUI
Description
KVM Console Extender Over IP | HDMI® | 4K @ 30Hz | 4x USB Ports | EDID Pass-ThroughThis HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.
Supports UHD 4K 30Hz
The HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.
Hassle-Free Installation
With a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.
The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.
Versatile Configuration Options
The extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.
For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5e or CAT6 cabling up to 330 feet (100 meters).
SV565HDIP is backed by a 2-year warranty and free lifetime technical support.
Specifications
| Ports & interfaces | |
|---|---|
| Number of microphone inputs | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Audio connections | Yes |
| Headphone outputs | 8 |
| HDMI ports quantity | 2 |
| DC-in jack | Yes |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Network | |
| Ethernet LAN (RJ-45) ports | 2 |
| Performance | |
| Daisy chain | No |
| Chipset | ASPEED - AST1520 |
| HD type | 4K Ultra HD |
| Video bandwidth | 30 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum operating distance | 3937" (100 m) |
| Audio channels | 7.1 |
| Technical details | |
| Product colour | Black |
| On Screen Display (OSD) | Yes |
| Maximum operating distance | 3937" (100 m) |
| LED indicators | Yes |
| Hot keys | No |
| IP control | No |
| USB hub | Yes |
| Compliance certificates | RoHS |
| Design | |
| Mean time between failures (MTBF) | 60000 h |
| Product colour | Black |
| LED indicators | Yes |
| Hot keys | No |
| Certification | CE, FCC, TAA, REACH |
| Housing material | Steel |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | Yes |
| Power | |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, JP, UK |
| Output voltage | 12 V |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Input voltage | 100 - 240 V |
| Video | |
| HD type | 4K Ultra HD |
| Video bandwidth | 30 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 4.61" (117 mm) |
| Depth | 5.12" (130 mm) |
| Height | 1.1" (28 mm) |
| Weight | 21.5 oz (610 g) |
| Package width | 13.9" (354 mm) |
| Package depth | 14.5" (368 mm) |
| Package height | 3.15" (80 mm) |
| Packaging data | |
| Package width | 13.9" (354 mm) |
| Package depth | 14.5" (368 mm) |
| Package height | 3.15" (80 mm) |
| Packaging content | |
| Rubber feet | Yes |
| Cables included | HDMI, LAN (RJ-45), Phone (RJ-11), USB |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Certificates | |
| Certification | CE, FCC, TAA, REACH |
| Other features | |
| IP control | No |
| Maximum operating distance | 3937" (100 m) |
| Hot keys | No |
| Logistics data | |
| Master (outer) case width | 15.5" (394 mm) |
| Master (outer) case length | 19.3" (490 mm) |
| Master (outer) case height | 10.7" (272 mm) |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 85176200 |
