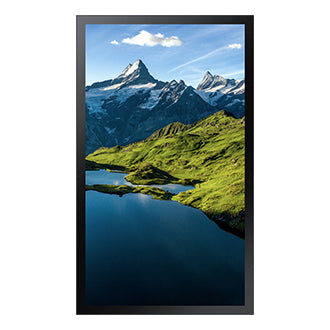

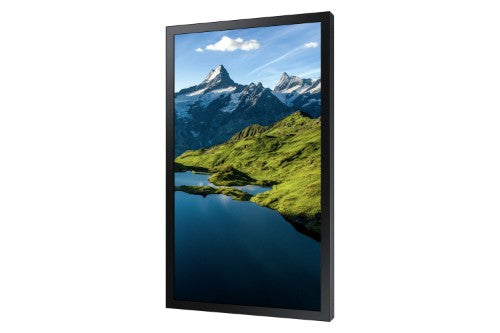

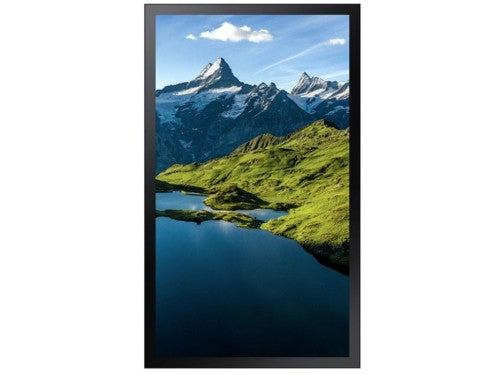

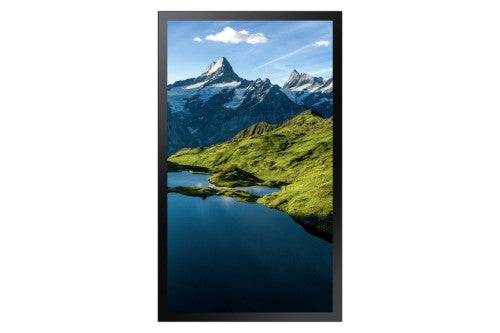

Samsung Oh75A 75" 4K Outdoor Commercial Display Taa Compliance

null

Key Features

• High visibility
• Water and dust resistant
• Magic Protection Glass

Description

Samsung OHA 75" 4K Outdoor Commercial Display When it comes to providing concise communication for customers, Samsung’s OH75A features a bright screen for high visibility in various weather conditions. Also, designed for businesses, the OH75A is packed with robust hardware, ensuring longevity and flexibility.The OHA is UL-verified for outdoor visibility, offering greater brightness than 3,500nit and 24/7 performance to deliver crisp vivid content anytime, anywhere. Plus, a built-in auto brightness sensor automatically adjusts brightness based on any external lighting, for a versatile, operationally efficient display.The OHA series delivers advanced color accuracy and brightness, creating vivid content through enhanced color reproduction of all red, green and blue shades. With crisp content being what customers now expect, the OHA’s uncompromised picture quality will be sure to capture customer attention.

Specifications

Display
Dynamic contrast ratio marketing name	Mega Contrast
Display number of colours	1.07 billion colors
Panel type	ADS
Active display area (W x H)	36.5 x 64.9" (927.9 x 1649.7 mm)
Colour gamut	72%
Display diagonal	75"
Display resolution	3840 x 2160 pixels
Display brightness	3500 cd/m²
HD type	4K Ultra HD
Response time	14 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	16.9 x 16.9" (429.6 x 429.6 mm)
Vertical scan range	30 - 75 Hz
Horizontal scan range	30 - 135 kHz
Haze rate	2.5%
Pixel frequency (max)	77 MHz
Glass thickness	0.197" (5 mm)
Glass film	SR Film

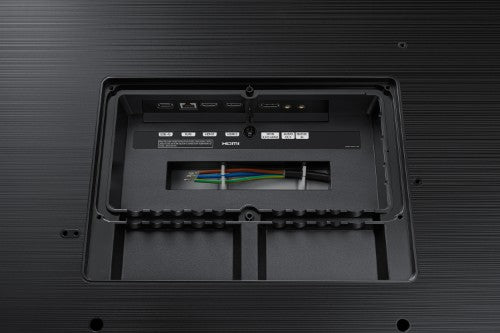

Ports & interfaces
DisplayPort version	1.2
USB port	Yes
DisplayPorts in	1
HDMI version	2.0
RS-232C	Yes
Infrared data port	No
Wi-Fi	No
PC Audio out	Yes
PC Audio in	No
DisplayPorts quantity	1
Ethernet LAN	Yes
HDMI ports quantity	2
DVI port	No
RS-232 interface	Yes
USB ports quantity	1
Power output	No
HDBaseT output ports	0
HDBaseT input ports	0
3G Dongle	No
Design
Product design	Digital signage flat panel
Housing material	Aluminum, Metal
Bezel width (bottom)	2.35" (5.98 cm)
Product colour	Black
VESA mounting	No
Bezel colour	Black
Wall mountable	No
Performance
Operating hours (hours/days)	24/7
HDCP	Yes
HDCP version	2.2
Wi-Fi	No
Power
Power consumption (sleep)	0.5 W
Power consumption (typical)	1200 W
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Computer system
Internal memory	8 GB
Weight & dimensions
Width	69.9" (1774.8 mm)
Depth	5.12" (130 mm)
Height	41.5" (1053.4 mm)
Weight	295.4 lbs (134 kg)
Display width	69.9" (1774.8 mm)
Display depth	5.12" (130 mm)
Display height	41.5" (1053.4 mm)
Display weight	295.4 lbs (134 kg)
Packaging data
Package width	76.1" (1932 mm)
Package depth	14.4" (367 mm)
Package height	49.3" (1251 mm)
Package weight	330.7 lbs (150 kg)
Remote control included	Yes
Cables included	AC
Packaging content
Stand included	No
Remote control included	Yes
Cables included	AC
Operational conditions
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	10 - 80%
Technical details
VESA mounting	No
Stand included	No
Panel type	ADS
DisplayPort version	1.2
Response time	14 s
Video out	No
DisplayPorts in	1
RS-232 output ports	0
Network
Wi-Fi	No
Ethernet LAN	Yes
Thin Client
Internal memory	8 GB
Logistics data
Harmonized System (HS) code	85285210
Features
Harmonized System (HS) code	85285210
Wall mountable	No
Other features
Stand included	No
Panel type	ADS
DisplayPort version	1.2
Response time	14 s
Housing material	Aluminum, Metal
Video out	No
DisplayPorts in	1
RS-232 output ports	0
Wi-Fi	No
PC Audio out	Yes
Bluetooth	No
Bezel width (bottom)	2.35" (5.98 cm)
Audio output	Yes
Audio input	No
Aspect ratio	16:9
