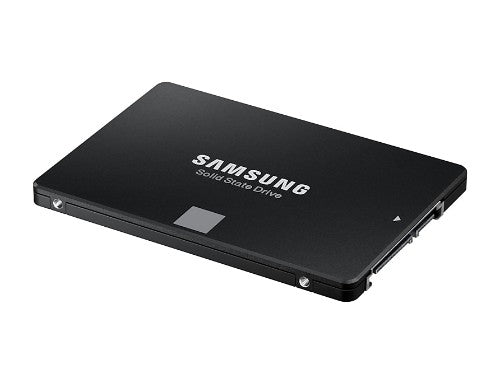

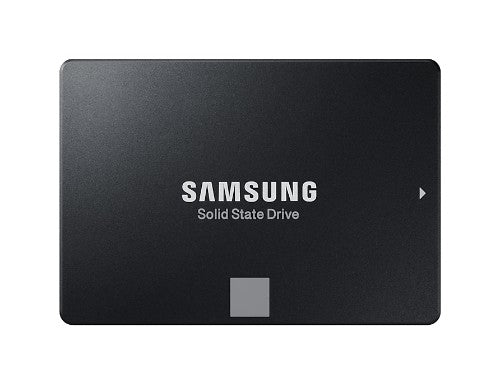

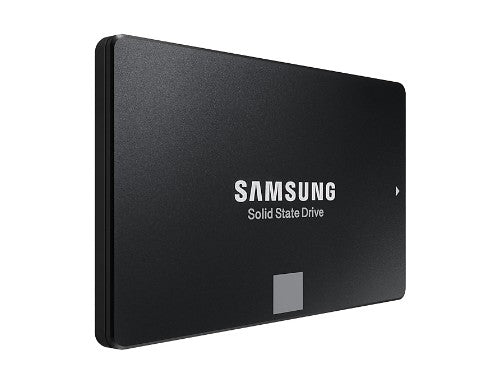

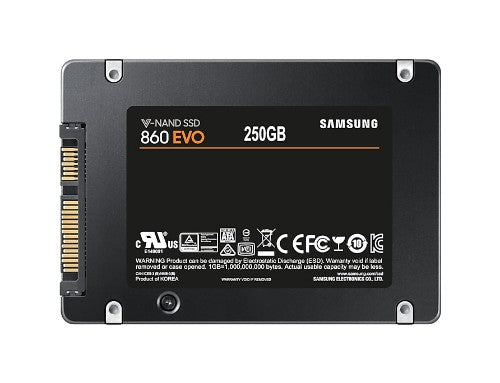

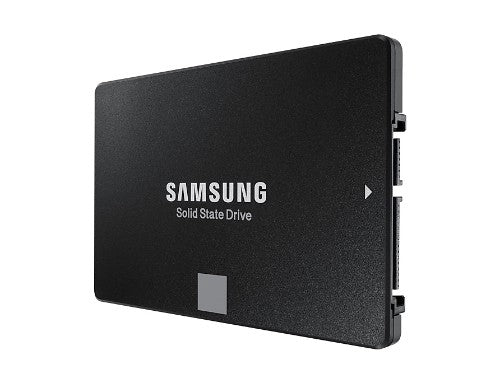

Samsung 860 EVO 250 GB 2.5" Serial ATA III V-NAND MLC

SSD, 860 EVO, SATA III 2.5'', 250 GB, 6 GB/S

Key Features

• Samsung Magician software is designed to help you manage your SSD with a simple and intuitive user interface
• Get notifications when new firmware is released, and easily install updates for enhanced performance, stability, and compatibility
• Check your SSD's sequential and random read/write speeds, so you can maintain optimal performance
• Better protect data by selecting security options. The 860 PRO supports AES 256-bit hardware-based encryption and is compliant with TCG Opal and IEEE 1667

Description

The SSD to trust
The newest edition to the world’s best-selling* SATA SSD series, the Samsung 860 EVO. Specially designed for mainstream PCs and laptops, with the latest V-NAND and a robust algorithm-based controller, this fast SSD comes in a wide range of compatible form factors and capacities.

Smart compatibility
Benefit from faster, more fluid communication with your host system. The refined ECC algorithm and a new MJX controller generate higher speeds, and the improved queued trim enhances Linux compatibility*. Our advanced engineering makes the 860 EVO more compatible with your computing system.

Multi form factors
Whatever size your computer needs, there is an 860 EVO for you. Choose among the 2.5-inch size for desktop PCs and laptops, and the SATA-based M.2 (2280) or the mSATA for ultra-slim computing devices.

Specifications

Hard drive
SSD capacity	250 GB
Memory type	V-NAND MLC
Data transmission
Read speed	550 MB/s
Write speed	520 MB/s
Data transfer rate	6 Gbit/s
Security
Security algorithms	256-bit AES
Endurance
Mean time between failures (MTBF)	1500000 h
Features
Interface	Serial ATA III
Component for	PC/Laptop
Controller type	Samsung MJX
DevSlp (device sleep) support	Yes
SSD capacity	250 GB
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
Read speed	550 MB/s
TRIM support	Yes
Write speed	520 MB/s
ECC	Yes
Memory type	V-NAND MLC
Mean time between failures (MTBF)	1500000 h
Hardware encryption	Yes
Data transfer rate	6 Gbit/s
SSD form factor	2.5"
Power
Power consumption (average)	2.2 W
Power consumption (max)	4 W
Performance
Interface	Serial ATA III
Component for	PC/Laptop
Controller type	Samsung MJX
DevSlp (device sleep) support	Yes
SSD capacity	250 GB
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
Read speed	550 MB/s
TRIM support	Yes
Write speed	520 MB/s
ECC	Yes
Memory type	V-NAND MLC
Mean time between failures (MTBF)	1500000 h
Hardware encryption	Yes
Data transfer rate	6 Gbit/s
Design
Component for	PC/Laptop
SSD form factor	2.5"
Weight & dimensions
Width	3.94" (100 mm)
Weight	1.76 oz (50 g)
Height	2.75" (69.8 mm)
Depth	0.268" (6.8 mm)
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Storage relative humidity (H-H)	5 - 95%
Operating shock	1500 G
Technical details
Interface	Serial ATA III
S.M.A.R.T. support	Yes
Operating temperature (T-T)	0 - 70 °C
TRIM support	Yes
Storage temperature (T-T)	-40 - 85 °C
ECC	Yes
Storage relative humidity (H-H)	5 - 95%
Operating shock	1500 G
Hardware encryption	Yes
SSD form factor	2.5"
