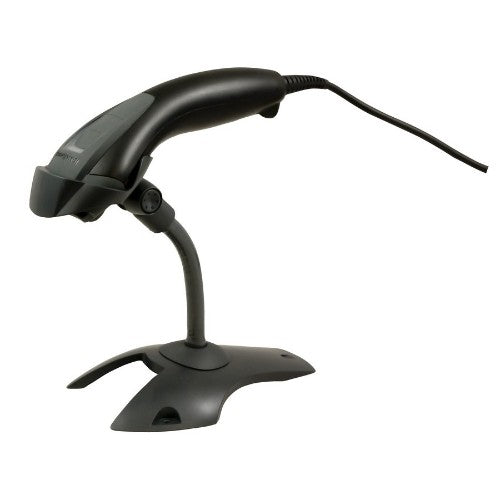

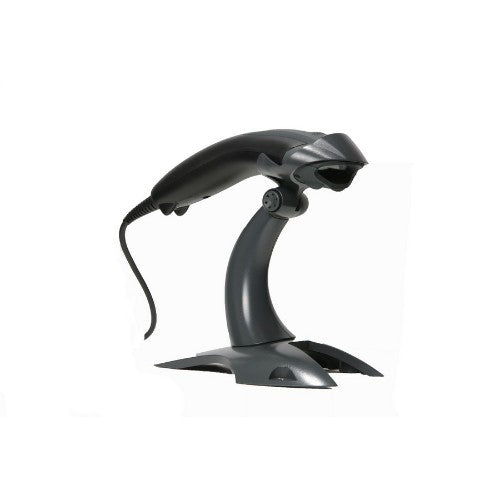

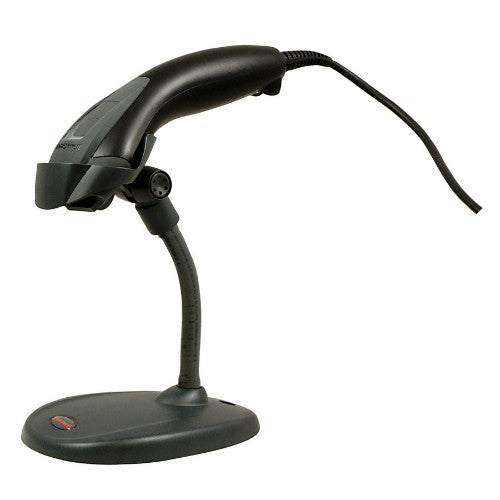

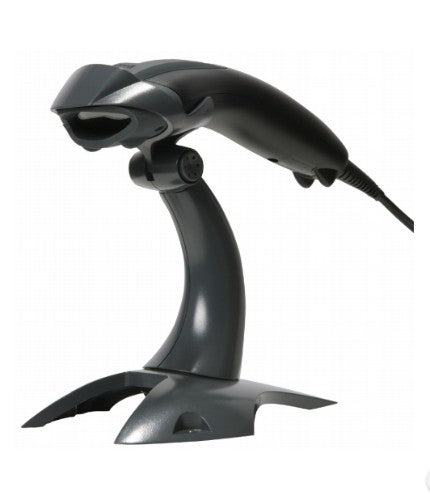

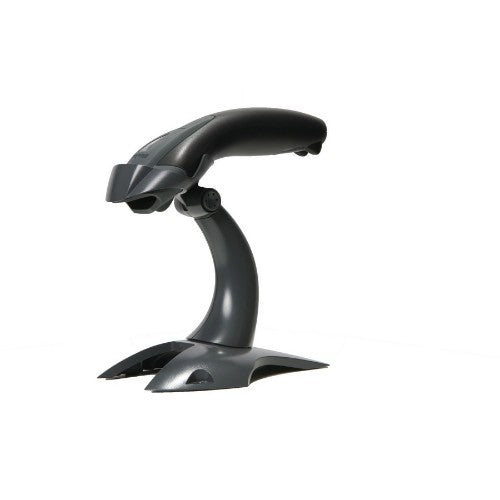

Honeywell Voyager 1200g Handheld bar code reader 1D Laser Black

RS232, KBW, USB, RS485, 0 - 70000 lux, IP42

Description

Built on the platform of the world’s best-selling single-line laser scanner, Honeywell’s Voyager® 1200g delivers aggressive scan performance on virtually all linear bar codes, including poor quality and damaged codes. Updated object detection, and automatic in-stand detection and configuration enable class-leading presentation scanning that maximizes throughput. Superior scan performance matched with a reliable design combine to provide a versatile linear scanning solution.

Outstanding scan performance on poor quality and damaged bar codes maintains productivity by providing a worry-free linear scanning solution that minimizes the need for manual data entry

Class-leading presentation scanning increases throughput by providing object detection and automatic in-stand detection and configuration

Superior out-of-box experience simplifies set up with tool-free stand assembly; automatic in-stand detection and configuration; and automatic interface detection and configuration

Contemporary, ergonomic design ensures operator comfort and productivity by incorporating an integrated finger groove in a sleek, lightweight industrial design that fits well in most hands

CodeGate® technology enables users to ensure that the desired bar code is scanned before transmitting data, making the scanner ideal for use in menu scanning applications

Multi-interface design minimizes costs by delivering support for USB, keyboard wedge, and RS232 interfaces in a single scanner

Specifications

Scanning
Type	Handheld bar code reader
2D (matrix & stacked) barcodes supported	Not supported
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128)
Sensor type	Laser
Scanner type	1D
Read rate (max)	100 reads/s
Pitch reading angle	60 - 60°
Light levels (direct sunlight)	0 - 70000 lx
Ports & interfaces
Connectivity technology	Wired
Standard interfaces	RS-232, USB, Keyboard wedge
Performance
LED indicators	Power
Housing material	Plastic
Product colour	Black
Certification	CE DoC
Light levels (direct sunlight)	0 - 70000 lx
Design
Type	Handheld bar code reader
LED indicators	Power
Housing material	Plastic
Product colour	Black
Certification	CE DoC
Power
Power source type	USB
Power consumption (typical)	0.7 W
Power consumption (standby)	0.35 W
Input voltage	5 V
Weight & dimensions
Width	7.09" (180 mm)
Depth	2.6" (66 mm)
Height	3.82" (97 mm)
Weight	4.41 oz (125 g)
Technical details
Type	Handheld bar code reader
LED indicators	Power
Housing material	Plastic
Shockproof	Yes
Product colour	Black
Certification	CE DoC
Harmonized System (HS) code	84716070
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Light levels (direct sunlight)	0 - 70000 lx
Logistics data
Harmonized System (HS) code	84716070
Other features
Shockproof	Yes
