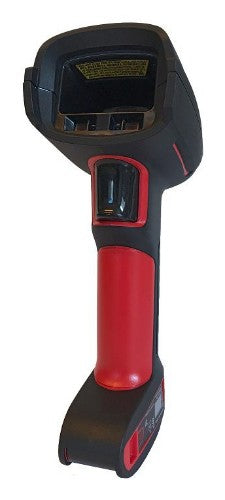

Honeywell Granit XP 1991iXLR Handheld bar code reader 1D/2D LED Black, Red

Wireless, 1D/2D, XLR focus, Black/Red, RS-232, Bluetooth

Key Features

• The Granit™ XP XLR model is ideally suited to normal, near-field scanning operations on 1D and 2D barcodes, plus maximum range scanning of UPC up to 2 m (6.6 ft) and 100 mil codes up to 24 m (79 ft)
• Granit™ XP provides premium performance scanning, even on damaged and low-quality barcodes. High-quality barcodes scan and transmit quickly
• The XLR model provides superior indoor and outdoor aiming visibility. The brighter, more visible aimer offers more accurate, intuitive aiming across the typical range of lighting conditions. The daylight aiming system offers accurate aiming in bright sunlight
• Built to survive harsh treatment including 3 m (10 ft) drops, 7,000 1 m (3.3 ft) tumbles, operating temperatures from -30°C to 50°C (-22°F to 122°F) and IP67 sealing, Granit XLR helps reduce service costs and increases device uptime

Description

The Granit™ XP 1990iXLR is designed to offer premium scanning performance and full range scanning depth to drive efficiency and reliability in mission-critical applications. Its high durability supports low TCO. The new Granit™ XLR is form-fit for a variety of workflow applications from no-sacrifice near field scanning to extreme long range scanning operations enhancing workflow productivity.

This generation of Granit™ XP scanners continue to expand capabilities and redefine ultra-rugged scanning. With a 10’ drop spec, Granit™ XP is engineered to keep on working after the impact of drops from loading docks, fork trucks, and picking trucks. The 1 m (3.3 foot) tumble test indicates long term durability with daily knocks and drops from workstation or waist height.
A best-in-class 7,000 tumble specification helps ensure Granit™ scanners will be ready to work for the long term. And IP67 dust and moisture sealing protect scanning performance under harsh treatment. Granit™ 1990iXLR model begins with no-sacrifice near field scanning and expand to read UPC codes to 2 m (6.6 ft) and 100 mil (2.54mm) rack labels at 24 m (79 ft). Packed with essential reliable aiming features, the XLR laser aimer is visible in multiple lighting conditions. The daylight aiming system offers accurate aiming in bright sunlight with an easy to view green aiming solution. Created for applications where far range high speed scanning is needed to maximize productivity, and where durability is non-negotiable to help lower total cost of ownership, the Granit™ XP 1990iXLR scanner offers the optimal solution.

Specifications

Scanning
Type	Handheld bar code reader
2D (matrix & stacked) barcodes supported	Data Matrix, PDF417, QR Code
Linear (1D) barcodes supported	Code 128, Code 39, PDF417, U.P.C.
Sensor type	LED
Scanner type	1D/2D
Ports & interfaces
Connectivity technology	Wireless
Cable length	118.1" (3 m)
Standard interfaces	Bluetooth, RS-232
Performance
LED indicators	Yes
International Protection (IP) code	IP67
Product colour	Black, Red
Print contrast	20%
Design
Type	Handheld bar code reader
LED indicators	Yes
International Protection (IP) code	IP67
Product colour	Black, Red
Power
Power source type	Battery
Input voltage	4-5 DC
Weight & dimensions
Width	2.99" (76 mm)
Depth	7.56" (192 mm)
Height	3.94" (100 mm)
Weight	11.3 oz (320 g)
Technical details
Type	Handheld bar code reader
LED indicators	Yes
International Protection (IP) code	IP67
Product colour	Black, Red
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
