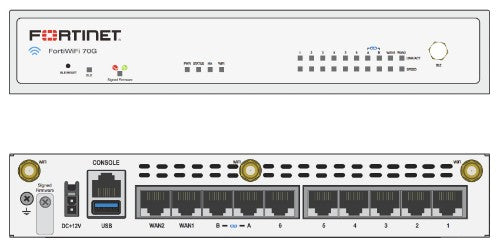

Fortinet FortiWiFі 70G hardware firewall Desktop 10 Gbit/s

6x GE RJ45, 2x GE RJ45 FortiLink, 2x GE RJ45 WAN, USB, 2.4 / 5 GHz, 802.11ax, 64GB SSD, Reg. A, 40.5 x 216 x 160 mm + 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)

Key Features

• Gartner Magic Quadrant Leaders for both Network Firewalls and SD‑WAN
• Unparalleled performance enabled by Fortinet’s patented ASIC and the FortiOS operating system
• Enterprise-grade protection with FortiGuard AIPowered Security Services
• Simplified operations with centralized management for networking and security, automated workflows, deep analytics, and self-healing
• Inclusive SD-WAN and wireless controller in every FortiGate appliance at no extra cost
• Rich portfolio for any business budget and need

Description

Converged Next-Generation Firewall and SD-WAN
The FortiGate FortiWiFi 70G series integrate firewalling, SDWAN, and security in one appliance, making them perfect for building secure networks at distributed enterprise sites and transforming WAN architecture at any scale.

The 70G series is powered by FortiOS, the industry’s first converged networking and security operating system. This convergence enables businesses to efficiently and optimally secure today’s dynamic digital infrastructures.

As a cornerstone of the Fortinet Security Fabric platform, the FortiGate NGFW works seamlessly with FortiGuard AIPowered Security Services to deliver coordinated, automated, end-to-end threat protection in real time.

The 70G family is built on the patented SDWAN-based ASIC, which delivers unmatched performance over traditional CPUs with lower cost and reduced power consumption. This application-specific design and embedded multi-core processor further accelerate the convergence of networking and security functions in the 70G family to optimize secure connections and deliver a robust user experience at branch locations.

Specifications

Data transmission
IPS/IDS throughput	2500 Mbit/s
SSL inspection throughput	1400 Mbit/s
Security policies (max)	5000
Firewall latency	2.46 µs
Firewall (UDP 1518) throughput	10 Gbit/s
Threat protection throughput	1300 Mbit/s
Firewall throughput	10 Gbit/s
Performance
Reset button	Yes
Antennas quantity	3
Antenna design	External
Certification	USGv6/IPv6
Network
Active TCP connections (max)	1400000
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Security
Domains quantity	10
Management features
LED indicators	Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Connectivity technology	Wired & Wireless
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	8
Number of console ports	1
DC-in jack	Yes
Storage
Storage media type	SSD
Total storage capacity	64 GB
SSD capacity	64 GB
Number of SSDs installed	1
Design
Form factor	Desktop
Certificates
Certification	USGv6/IPv6
Compliance certificates	BSMI, CB, CE, Federal Communications Commission (FCC), RCM, UL, cUL
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-35 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Operating altitude	0 - 120000" (0 - 3048 m)
Weight & dimensions
Weight	2.23 lbs (1.01 kg)
Width	8.5" (216 mm)
Depth	1.59" (40.5 mm)
Height	6.3" (160 mm)
Technical details
Form factor	Desktop
Compliance certificates	BSMI, CB, CE, Federal Communications Commission (FCC), RCM, UL, cUL
Hard drive
Storage media type	SSD
Total storage capacity	64 GB
SSD capacity	64 GB
Antenna
Antennas quantity	3
Features
SSL inspection throughput	1400 Mbit/s
