Tripp Lite B302-4HX4H-4K video switch HDMI

4x4 HDMI Matrix Switch/Splitter with Audio Extractor, Remote Access and Multi-Resolution Support, 4K 60 Hz, HDR

Key Features

• Supports UHD resolutions up to 4K @ 60 Hz (4:4:4) for crystal-clear video quality
• Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
• Allows storage and instant recall of saved or pre-programmed display combinations
• Supports multi-resolution output for mixing and matching displays of various resolutions
• Permits easy network configuration to match the unit’s pre-assigned IP address

Description

HDMI Matrix Switch for Digital Signage or Other Applications with Multiple Video Displays
This matrix switch/splitter features four HDMI inputs and four HDMI outputs. This allows you to connect as many as four high-definition video sources, such as laptops, Blu-ray players, video game systems, Roku boxes, media servers or cable/satellite boxes, and transmit them to four high-definition televisions, projectors or monitors. The B302-4HX4H-4K is recommended for home theaters (transmit to HDTVs located in different rooms) or digital signage applications in showrooms, restaurants, trade shows, schools, training rooms and retail settings.

Enjoy Great Flexibility in Transmitting Video to Different Displays or Even Different Rooms
Send the same video image to all displays or transmit different videos to different displays and switch between them. Convenient push buttons on the front of the unit let you instantly choose which sources and displays to highlight. You can also use the included IR hardware, RS-232 serial commands (cable sold separately) or the included GUI software to pick and choose. Remote access of the matrix switch/splitter is possible by configuring your network to match its pre-assigned IP address.

Transmits Crystal-Clear True 4K Video with HDR and 4:4:4 Color
The B302-4HX4H-4K supports Ultra HD resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz, as well as HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions
Say you have a brand new 4K (at 60 Hz) HDTV in the living room, but want to also connect your Blu-ray player or satellite box to the older 1080p TV in the bedroom. The B302-4HX4H-4K is backward compatible with 4K (at 30 Hz) and 1080p (at 60 Hz) resolutions via automatic switching. This matrix switch/splitter allows each connected monitor to display video at its maximum resolution. Most other splitters default each monitor to the lowest common resolution (meaning you would only get a 1080p image on that new 4K TV).

Convenient Scene Storage and Instant Recall
You can store as many as 12 different display or scene combinations in the matrix switch’s internal memory. Mix and match any sources you want with the displays you want and save it to memory. Forgot which source/display combination you used last week or accidentally changed one of the sources or displays? Don’t worry – use the recall feature to bring back the combination you had last.

Built-In Audio Extractor Lets You Control Sound, as Well as Picture
The 3.5 mm audio jacks located above each HDMI output allow you to connect an amplifier, receiver or soundbar for digital stereo sound.

Designed for Quick Setup and Immediate Use

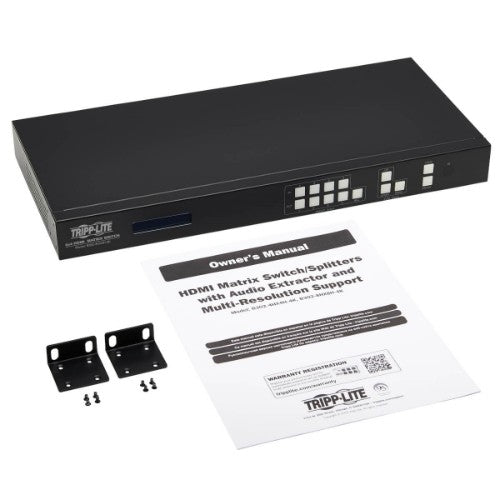

Connect your devices to the HDMI ports with user-supplied HDMI cables (such as P569-Series), and plug the included external power supply (with four international plug adapters to ensure use all over the world) into an AC power source to get started. Use the included hardware to install the unit on a wall or 19-inch rack. A CD is included for downloading the optional GUI control software (not compatible with macOS).

Specifications

Ports & interfaces
RJ-45 output ports	1
Video port type	HDMI
RS-232 ports	1
HDMI version	2.0
HDMI ports quantity	8
Number of HDMI outputs	4
HDMI in	4
DC-in jack	Yes
3.5 mm (1/8-inch) out	Yes
3.5 mm (1/8-inch) in	Yes
Features
Audio output channels	2.0 channels
HD type	4K Ultra HD
3D	Yes
Colour depth	36 bit
Product colour	Black
Rack mounting	Yes
Maximum resolution	4096 x 2160 pixels
Maximum refresh rate	60 Hz
Material	Steel
LED indicators	Yes
HDCP	Yes
Country of origin	China
HDCP version	2.2
Extended display identification data (EDID)	Yes
Power
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
AC adapter input current	0.9 A
AC adapter output voltage	12 V
AC adapter output current	3 A
Weight & dimensions
Weight	5.47 lbs (2.48 kg)
Packaging data
Package width	9.84" (249.9 mm)
Package height	21.6" (549.9 mm)
Package depth	3.54" (89.9 mm)
Package weight	7.05 lbs (3.2 kg)
Packaging content
Software CD	Yes
Manual	Yes
Remote control included	Yes
Cables included	IR
AC adapter included	Yes
Mounting kit	Yes
Power cord included	Yes
Quantity per pack	1 pc(s)
Operational conditions
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-10 - 80 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 85%
Sustainability
Sustainability compliance	Yes
Technical details
Sustainability compliance	Yes
Harmonized System (HS) code	85176990
Compliance certificates	CE, REACH, RoHS
Logistics data
Master (outer) case gross weight	16.3 lbs (7.4 kg)
Products per master (outer) case	2 pc(s)
Master (outer) case width	10.6" (270 mm)
Master (outer) case length	7.87" (199.9 mm)
Master (outer) case height	22.4" (570 mm)
Country of origin	China
Master (outer) case GTIN (EAN/UPC)	10037332256567
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
