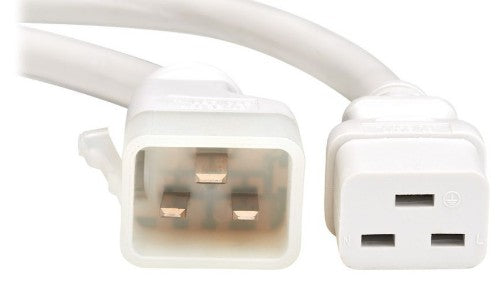

Eaton P036-EN6-AWH-6 power cable White 70.9" (1.8 m) C20 coupler C19 coupler

PDU Power Cord, C19 to P-Lock Lite C20 - 20A, 250V, 12 AWG, 6 ft. (1.8 m), White, 6 Pack

Key Features

• ecommended for powering servers, routers and other high-output network devices
• P-Lock Lite C20 connectors eliminate accidental cable disconnections in a crowded PDU
• Thick 12 AWG wire gauge manages high power levels required for larger equipment
• White cable jackets allow quick identification of devices in a crowded rack enclosure
• Includes 6 PDU power cables, ideal for large-scale rack equipment rollouts

Description

C20-to-C19 Power Cables for Network Devices That Require a Heavy-Gauge Connection. These UL-certified power extension cords feature 12 AWG wire suitable for high power connections, making them a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. The P036-EN6-AWH-6 can be used to connect servers, routers, network switches or blade server enclosures to a UPS system or PDU. The six-foot (1.8-meter) length helps reduce cable clutter by providing a tailor-made fit between the devices and the PDU in a crowded rack enclosure. Forms a Special Locking Connection with a P-Lock Outlet. The P-Lock Lite C20 power connectors with locking tab form a secure connection with a PDU with P-Lock outlets, including Eaton G4 and newer PDUs with C19 and C39 outlets. The P-Lock Lite connection helps reduce the risk of accidental cable disconnects that can cause costly equipment downtime. The P036-EN6-AWH-6 lets you replace non-locking C19/C20 cables or upgrade an entire PDU application by pairing them with a high-density Eaton PDU or other PDU with P-Lock outlets. White Jackets Help Avoid Misidentification That Can Cause Costly Downtime. The cables have a white PVC jacket with fully molded white ends, which is easy to identify quickly in a crowded PDU or UPS system and helps prevent the cables from becoming accidentally disconnected.

Specifications

Ports & interfaces
Connector 2	C19 coupler
Connector 1	C20 coupler
Cable length	70.9" (1.8 m)
Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Number of conductors	3
Cable type	SJT
AWG wire size	12
Certification	CAN/CSA C22.2, UL Listed, cUL Listed, CSA C22.2.
Jacket material	Polyvinyl chloride (PVC)
Connector 2	C19 coupler
Connector 1	C20 coupler
Cable length	70.9" (1.8 m)
Connector 1 lockable	Yes
Connector 2 lockable	No
Connector 2 gender	Female
Connector 1 gender	Male
Product colour	White
Plug and Play	Yes
Power
Input voltage	250 V
Input current	20 A
Colour
Product colour	White
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-5 - 70 °C
Operating relative humidity (H-H)	35 - 85%
Storage relative humidity (H-H)	35 - 85%
Certificates
Certification	CAN/CSA C22.2, UL Listed, cUL Listed, CSA C22.2.
Compliance certificates	REACH, RoHS
Weight & dimensions
Diameter	0.441" (1.12 cm)
Package width	14.2" (360 mm)
Package depth	0.5" (12.7 mm)
Package height	18.1" (460 mm)
Package weight	6.55 lbs (2.97 kg)
Packaging data
Package width	14.2" (360 mm)
Package depth	0.5" (12.7 mm)
Package height	18.1" (460 mm)
Package weight	6.55 lbs (2.97 kg)
Quantity per pack	6 pc(s)
Technical details
Jacket material	Polyvinyl chloride (PVC)
Compliance certificates	REACH, RoHS
