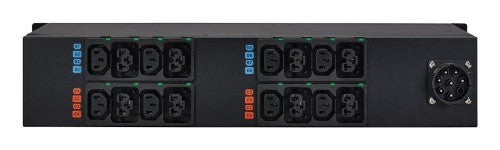

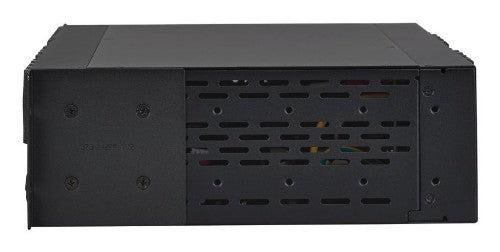

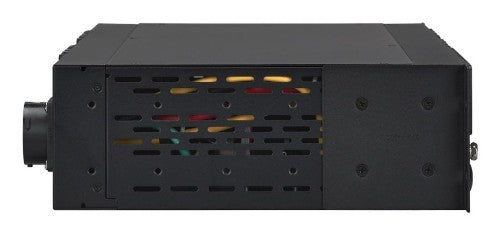

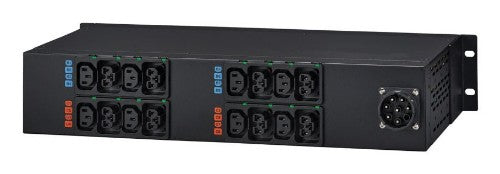

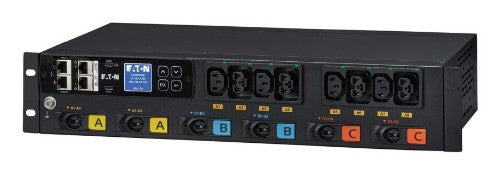

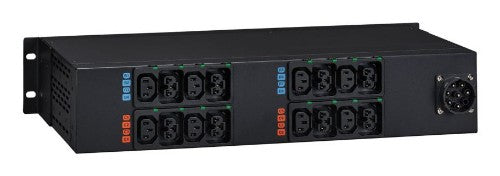

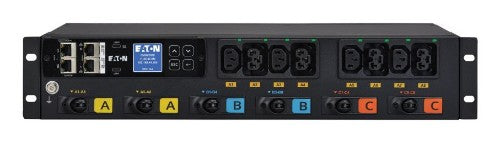

Eaton EHMAGU23A power distribution unit (PDU) 24 AC outlet(s) 2U Black

Universal-Input Managed Rack PDU G4, 200-415V, 12 C13 and 12 C39 Outlets, Input Cable Sold Separately, 2U

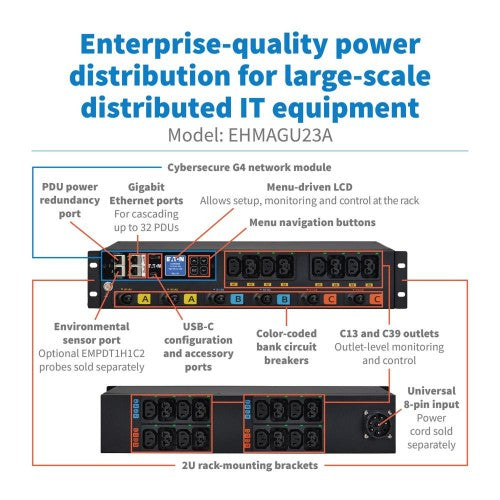

Key Features

• Universal power input accommodates 5kVA single-phase to 23kVA 3-phase levels
• 24 outlets include 12 C13 and 12 universal C39, which accepts C14 and C20 plugs
• Power metering, monitoring and switching available at the outlet level
• Embedded gigabit network module offers market-leading cybersecurity
• Mounts in 2U of space in a standard 19 in. rack using the included brackets

Description

17 Removable Power Cables with 15 Different Plugs Support Universal Input This universal-input PDU (UPDU) G4 meets your most diverse rack-power needs. Fully managed with 24 outlets and sophisticated management capabilities, the EHMAGU23A accommodates power needs ranging from 5kVA single-phase to 23kVA three-phase. Pair the UPDU with any one of 17 removable power cables with 15 different plug options (all sold separately). This UPDU alleviates the cost and complexity of mixing and matching different PDUs for different installations. It also ensures you won’t outgrow your PDU as your power needs evolve. Market-Leading Cybersecurity Ensures Your Data Is Kept Safe Chain-of-trust encryption, a user-configurable firewall and secure firmware boot capability prevent the EHMAGU23A from being a cyberattack vulnerability point on a network. An embedded, hot-swappable gigabit network module (GNM) offers enhanced management and cybersecurity, including zero-trust architecture and zero-touch provisioning. The EHMAGU23A is compatible with select Eaton Brightlayer Data Centers suite software solutions that enable extensive automation and remote management to shorten response times to power issues and ensure timely updates for stronger cybersecurity.  Remote Management Saves Time and Money The GNM with multi-color screen supports performance management software for real-time reports, trend charts, dashboards and alerts that are prioritized by severity, as well as remote troubleshooting and automated responses during power events. The EHMAGU23A is compatible with optional environmental sensors (sold separately) that provide alerts about temperature, humidity and dry-contact device connections. 24 Outlets Give You Plenty of Power Options The EHMAGU23A features 12 C13 outlets, which accept C14 connectors, and 12 high-retention C39 combo outlets, which accept both C14 and C20 connectors, adding flexibility to deployments and reducing the quantity of PDUs you will need to purchase and install. Outlets are compatible with Eaton Tripp Lite series P-Lock power cords to simplify deployment and enhance reliability. Outlet-Level Control Boosts Performance and Efficiency All outlets provide metering, monitoring and switching for granular power data and precision control of power delivery. The outlets are evenly distributed into color-coded load banks, each with its own circuit breaker, to improve load balancing and organize connections in a crowded rack Horizontal Form Factor Puts Power Next to Your Gear The all-metal housing comes with hardware for horizontal mounting in 2U of space in an EIA-standard 19-inch rack. Choose from a collection of 17 power cables and 15 plug options (all power cables sold separately). The horizontal installation creates space in the back of the rack for vertical cooling manifolds.

Specifications

Design
Type	Three-phase
PDU types	Managed
Mounting	Horizontal
Display	LCD
Product colour	Black
Rack capacity	2U
Ports & interfaces
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C39 coupler
Ergonomics
Display	LCD
Power
Nominal input voltage	200 - 415 V
Maximum current	55 A
AC input frequency	50/60 Hz
