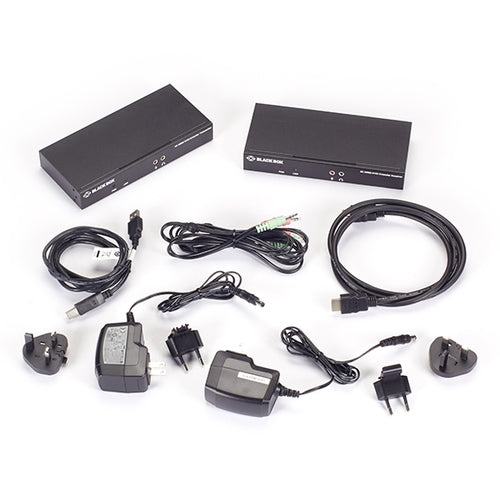

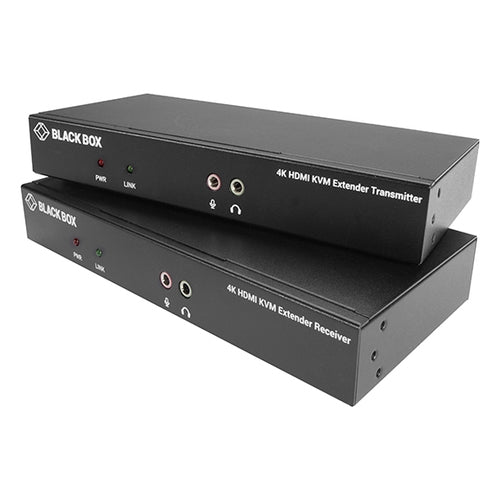

Black Box KVXLCHF-100 KVM extender Transmitter & receiver

KVX Series KVM Extender over Fiber - 4K, Single-Head, HDMI, USB 2.0, Serial, SFP, Audio, Local Video

Key Features

• HDMI video resolution up to UHD 4K
• Remote access up to 30 km
• Transparent USB 2.0 extension supports HID devices, mass storage devices
• Bi-directional audio via speaker / mic connection
• Local Video port supports additional external monitor at server / remote PC side
• Supports EDID pass-through
• Supports RS232 peripheral (serial) devices such as scanners or terminals

Description

The KVXLCHF-100 HDMI KVM Console Extender lets you control a server, or computer over single-mode fiber at distances of up to 30 km or multimode fiber up to 550 meters. PC connection cables are included with this product making it a solution that is ready right out of the box. You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations. KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs. KVX Series Extenders are TAA compliant, backed by a 2-year warranty and free lifetime technical support. KVX Series Extenders are a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or, customers who require control of systems that are physically inaccessible, placed in secure locations, or in otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers.

Specifications

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	1181102.4" (30000 m)
Cable types supported	Fiber
Rack mounting	Yes
Maximum digital resolution	3840 x 2160 pixels
Product colour	Black
USB 2.0 ports quantity	4
LED indicators	Power
Transmitter
Transmitter video port type	HDMI
Transmitter local video port	Yes
Transmitter local video port type	HDMI
Receiver
Receiver local video port type	HDMI
Power
AC adapter output voltage	5 V
AC adapter output current	2 A
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Transmitter width	3.27" (8.3 cm)
Transmitter depth	7.09" (18 cm)
Transmitter height	0.827" (2.1 cm)
Transmitter weight	13.1 oz (372 g)
Receiver width	3.27" (8.3 cm)
Receiver depth	7.09" (18 cm)
Receiver height	0.827" (2.1 cm)
Receiver weight	13.3 oz (378 g)
Technical details
Harmonized System (HS) code	84733080
Ports & interfaces
USB port type	USB Type-A
RS-232 ports	1
PC Audio in	Yes
PC Audio out	Yes
Packaging data
AC adapter included	Yes
Cables included	Audio (3.5mm), HDMI, USB Type-A to USB Type-B
Packaging content
AC adapter included	Yes
Cables included	Audio (3.5mm), HDMI, USB Type-A to USB Type-B
Included power plug types	AU, EU, UK, US
Logistics data
Harmonized System (HS) code	84733080
