Black Box

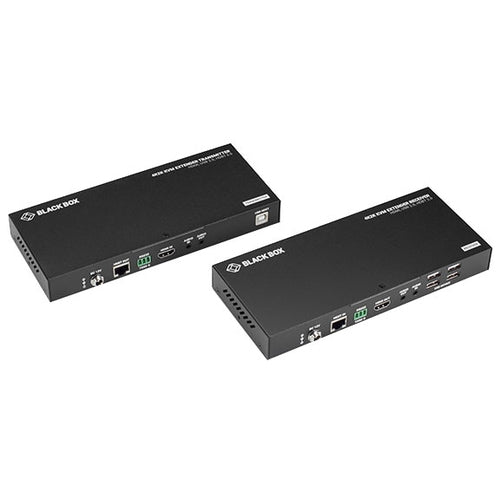

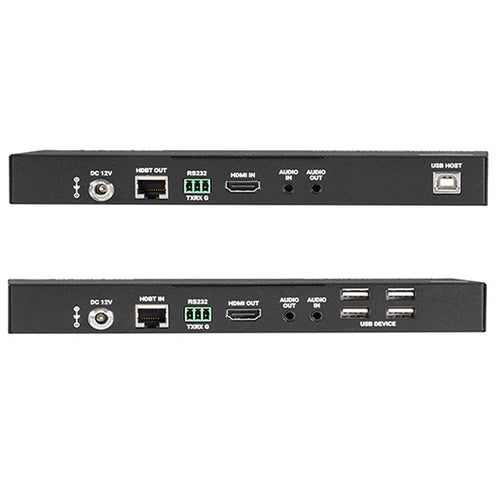

Black Box ACU1700A KVM extender Transmitter & receiver
SKU:
ACU1700A
Condition: New
$641.18 USD
Pickup currently not available
✔
Factory-Sealed
Sourced from authorized distributors
✔
Manufacturer Warranty
Terms set by the brand
✔
Enterprise Expertise
Business Procurement
Free standard shipping over $2,500
Delivery estimates are based on product availability, destination, fulfillment method, and qualifying order requirements. 30-day returns; 20% restocking fee on non-defective returns. Shipping policy · Return policy
Loading documents...
Need Help Before You Order?
Check compatibility, availability, or volume pricing with an IT procurement specialist.
Enterprise IT Procurement Built for Business
Source servers, networking, storage, workstations, and business technology through established distribution channels with dedicated procurement support.
1,700+
Business Accounts Supported
32,000+
Enterprise Hardware Products Available
Fast, Reliable Procurement Support
Reach out for responsive product availability, part numbers, pricing, and additional hardware needs.
4–8 Hrs
Typical RFQ Response Target
Multi-Vendor
Hardware Sourcing
Keep Your IT Projects Moving
For business hardware purchases and larger deployments, get shipment information, order coordination, and delivery support.
Manufacturer Warranty Coverage
Eligible products include warranty coverage provided by the original manufacturer according to applicable brand and product terms.
Brand Warranty TermsFactory-Sealed HardwareOEM Support Eligibility
A Trusted Source for Enterprise Hardware
Source factory-sealed IT hardware through established technology distribution channels, with support for individual purchases, BOM requests, and larger business requirements.
112+
Technology Brands
32,000+
Hardware Products Available
Key Features
KVM Extender – 4K@60Hz, HDMI 1.4, USB 2.0, HDBT 2.0, CAT5e/6/6A
The extender includes a local unit that attaches to the CPU and a remote unit that connects the user's KVM console. But you can also plug in a monitor on the local side—which is great for monitoring and administration right at the computer.
HDMI video
Use the KVM 4K HDBT Extender to send high-resolution 4K@60Hz HDMI video over existing standard CATx cables. Using CAT6/6a/7 cables, the KVM Extender supports distances up to 100m, using CAT5e cabling, distances up to 90m are possible. HDMI 1.4 compliant, the extender transmits 4K60 resolutions with a color spectrum (Chroma subsampling rate) of 4:2:0, 8-bit color, with a bandwidth throughput of 10.2Gbps max.
USB HID and high-speed USB 2.0
The KVM 4K HDBT Extender features an USB-Host with USB 2.0 throughput built into the transmitter unit and a 4-Port USB Hub built into the receiver unit. Connect USB HID devices such as keyboard and mouse as well as up to two high-speed USB 2.0 devices at speeds up to 480Mbps with pass through over HDBaseT up to 100m.
Stereo Audio and Serial
In addition, this KVM Extender is able to pass-through bi-directional analogue stereo audio and RS232. Connect and control two-way analog stereo audio. Perfect if you have audio files on a workstation far away from your desk.
Power over HDBaseT (PoH)
With integrated 48V PoH, you only need one power supply on one side (either transmitter/workstation or console/receiver side) to power both units. This is a perfect solution for situations where all plugs are used by other devices. Even better, the screwed in 12V power supply prevents the power from being accidentally disconnected.
HDBaseT 2.0 technology
This KVM Extender is using HDBaseT 2.0 technology. Therefore data, high quality uncompressed video, USB, audio, and power can all run together over one single existing CAT5e/6/6a/7 network cable. You can easily use your existing CATx infrastructure so there is no need for additional runs and unnecessary cable costs.
Key Features
- Extend uncompressed 4Kx2K@60Hz/1080p@60Hz video up to 100m using Cat 6/6a/7 cables, or up to 90m using CAT5e cables
- Supports HDMI 1.4 with 4k@60Hz chroma sub-sampling 4:2:0, 8-bit
- HDBaseT 2.0 technology carries video, analog stereo audio, power, RS-232 and USB 2.0 signals
- With integrated 48V PoH (Power over HDBT), only one power supply is required to power both transmitter and receiver
- USB 2.0 pass-through: Connect keyboard, mouse, and two additional USB peripherals such as cameras at speeds up to 480 Mbps over the full distance of 100m
- Bi-directional Analog Stereo and RS232 pass-through over HDBaseT
Description
The KVM 4K Extender with HDBaseT 2.0 Technology offers an affordable solution with rich features that address the ever increasing demands of high resolution video extension making it the perfect choice for advanced users. Quick set up, ease of use, and space saving size makes it the perfect choice also for the most novice user. As an added benefit, the KVM 4K Extender can operate using existing CATx cable infrastructur.The extender includes a local unit that attaches to the CPU and a remote unit that connects the user's KVM console. But you can also plug in a monitor on the local side—which is great for monitoring and administration right at the computer.
HDMI video
Use the KVM 4K HDBT Extender to send high-resolution 4K@60Hz HDMI video over existing standard CATx cables. Using CAT6/6a/7 cables, the KVM Extender supports distances up to 100m, using CAT5e cabling, distances up to 90m are possible. HDMI 1.4 compliant, the extender transmits 4K60 resolutions with a color spectrum (Chroma subsampling rate) of 4:2:0, 8-bit color, with a bandwidth throughput of 10.2Gbps max.
USB HID and high-speed USB 2.0
The KVM 4K HDBT Extender features an USB-Host with USB 2.0 throughput built into the transmitter unit and a 4-Port USB Hub built into the receiver unit. Connect USB HID devices such as keyboard and mouse as well as up to two high-speed USB 2.0 devices at speeds up to 480Mbps with pass through over HDBaseT up to 100m.
Stereo Audio and Serial
In addition, this KVM Extender is able to pass-through bi-directional analogue stereo audio and RS232. Connect and control two-way analog stereo audio. Perfect if you have audio files on a workstation far away from your desk.
Power over HDBaseT (PoH)
With integrated 48V PoH, you only need one power supply on one side (either transmitter/workstation or console/receiver side) to power both units. This is a perfect solution for situations where all plugs are used by other devices. Even better, the screwed in 12V power supply prevents the power from being accidentally disconnected.
HDBaseT 2.0 technology
This KVM Extender is using HDBaseT 2.0 technology. Therefore data, high quality uncompressed video, USB, audio, and power can all run together over one single existing CAT5e/6/6a/7 network cable. You can easily use your existing CATx infrastructure so there is no need for additional runs and unnecessary cable costs.
Specifications
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 3937" (100 m) |
| Cable types supported | Cat6, Cat6a, Cat7 |
| Maximum digital resolution | 4096 x 2160 pixels |
| Easy to install | Yes |
| Plug and Play | Yes |
| USB 2.0 ports quantity | 5 |
| Transmitter | |
| Transmitter video port type | HDMI |
| Transmitter local video port | Yes |
| Number of displays supported | 1 |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | HDMI |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 5 |
| Power | |
| AC adapter output voltage | 12 V |
| Weight & dimensions | |
| Transmitter width | 8.19" (20.8 cm) |
| Transmitter depth | 3.54" (9 cm) |
| Transmitter height | 0.984" (2.5 cm) |
| Transmitter weight | 5.64 oz (160 g) |
| Receiver width | 8.19" (20.8 cm) |
| Receiver depth | 3.54" (9 cm) |
| Receiver height | 0.984" (2.5 cm) |
| Receiver weight | 5.64 oz (160 g) |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
Product Specs
KVM Extender – 4K@60Hz, HDMI 1.4, USB 2.0, HDBT 2.0, CAT5e/6/6A
The extender includes a local unit that attaches to the CPU and a remote unit that connects the user's KVM console. But you can also plug in a monitor on the local side—which is great for monitoring and administration right at the computer.
HDMI video
Use the KVM 4K HDBT Extender to send high-resolution 4K@60Hz HDMI video over existing standard CATx cables. Using CAT6/6a/7 cables, the KVM Extender supports distances up to 100m, using CAT5e cabling, distances up to 90m are possible. HDMI 1.4 compliant, the extender transmits 4K60 resolutions with a color spectrum (Chroma subsampling rate) of 4:2:0, 8-bit color, with a bandwidth throughput of 10.2Gbps max.
USB HID and high-speed USB 2.0
The KVM 4K HDBT Extender features an USB-Host with USB 2.0 throughput built into the transmitter unit and a 4-Port USB Hub built into the receiver unit. Connect USB HID devices such as keyboard and mouse as well as up to two high-speed USB 2.0 devices at speeds up to 480Mbps with pass through over HDBaseT up to 100m.
Stereo Audio and Serial
In addition, this KVM Extender is able to pass-through bi-directional analogue stereo audio and RS232. Connect and control two-way analog stereo audio. Perfect if you have audio files on a workstation far away from your desk.
Power over HDBaseT (PoH)
With integrated 48V PoH, you only need one power supply on one side (either transmitter/workstation or console/receiver side) to power both units. This is a perfect solution for situations where all plugs are used by other devices. Even better, the screwed in 12V power supply prevents the power from being accidentally disconnected.
HDBaseT 2.0 technology
This KVM Extender is using HDBaseT 2.0 technology. Therefore data, high quality uncompressed video, USB, audio, and power can all run together over one single existing CAT5e/6/6a/7 network cable. You can easily use your existing CATx infrastructure so there is no need for additional runs and unnecessary cable costs.
Key Features
- Extend uncompressed 4Kx2K@60Hz/1080p@60Hz video up to 100m using Cat 6/6a/7 cables, or up to 90m using CAT5e cables
- Supports HDMI 1.4 with 4k@60Hz chroma sub-sampling 4:2:0, 8-bit
- HDBaseT 2.0 technology carries video, analog stereo audio, power, RS-232 and USB 2.0 signals
- With integrated 48V PoH (Power over HDBT), only one power supply is required to power both transmitter and receiver
- USB 2.0 pass-through: Connect keyboard, mouse, and two additional USB peripherals such as cameras at speeds up to 480 Mbps over the full distance of 100m
- Bi-directional Analog Stereo and RS232 pass-through over HDBaseT
Description
The KVM 4K Extender with HDBaseT 2.0 Technology offers an affordable solution with rich features that address the ever increasing demands of high resolution video extension making it the perfect choice for advanced users. Quick set up, ease of use, and space saving size makes it the perfect choice also for the most novice user. As an added benefit, the KVM 4K Extender can operate using existing CATx cable infrastructur.The extender includes a local unit that attaches to the CPU and a remote unit that connects the user's KVM console. But you can also plug in a monitor on the local side—which is great for monitoring and administration right at the computer.
HDMI video
Use the KVM 4K HDBT Extender to send high-resolution 4K@60Hz HDMI video over existing standard CATx cables. Using CAT6/6a/7 cables, the KVM Extender supports distances up to 100m, using CAT5e cabling, distances up to 90m are possible. HDMI 1.4 compliant, the extender transmits 4K60 resolutions with a color spectrum (Chroma subsampling rate) of 4:2:0, 8-bit color, with a bandwidth throughput of 10.2Gbps max.
USB HID and high-speed USB 2.0
The KVM 4K HDBT Extender features an USB-Host with USB 2.0 throughput built into the transmitter unit and a 4-Port USB Hub built into the receiver unit. Connect USB HID devices such as keyboard and mouse as well as up to two high-speed USB 2.0 devices at speeds up to 480Mbps with pass through over HDBaseT up to 100m.
Stereo Audio and Serial
In addition, this KVM Extender is able to pass-through bi-directional analogue stereo audio and RS232. Connect and control two-way analog stereo audio. Perfect if you have audio files on a workstation far away from your desk.
Power over HDBaseT (PoH)
With integrated 48V PoH, you only need one power supply on one side (either transmitter/workstation or console/receiver side) to power both units. This is a perfect solution for situations where all plugs are used by other devices. Even better, the screwed in 12V power supply prevents the power from being accidentally disconnected.
HDBaseT 2.0 technology
This KVM Extender is using HDBaseT 2.0 technology. Therefore data, high quality uncompressed video, USB, audio, and power can all run together over one single existing CAT5e/6/6a/7 network cable. You can easily use your existing CATx infrastructure so there is no need for additional runs and unnecessary cable costs.
Specifications
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 3937" (100 m) |
| Cable types supported | Cat6, Cat6a, Cat7 |
| Maximum digital resolution | 4096 x 2160 pixels |
| Easy to install | Yes |
| Plug and Play | Yes |
| USB 2.0 ports quantity | 5 |
| Transmitter | |
| Transmitter video port type | HDMI |
| Transmitter local video port | Yes |
| Number of displays supported | 1 |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | HDMI |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 5 |
| Power | |
| AC adapter output voltage | 12 V |
| Weight & dimensions | |
| Transmitter width | 8.19" (20.8 cm) |
| Transmitter depth | 3.54" (9 cm) |
| Transmitter height | 0.984" (2.5 cm) |
| Transmitter weight | 5.64 oz (160 g) |
| Receiver width | 8.19" (20.8 cm) |
| Receiver depth | 3.54" (9 cm) |
| Receiver height | 0.984" (2.5 cm) |
| Receiver weight | 5.64 oz (160 g) |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
