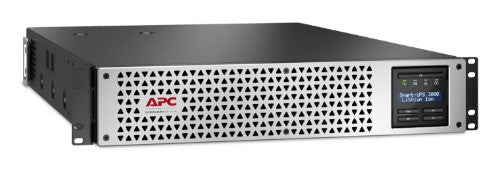

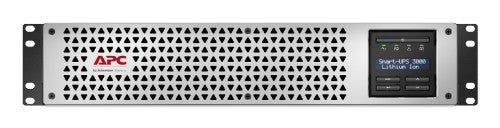

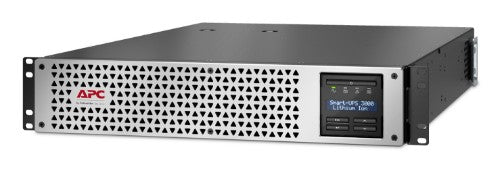

APC SMTL3KRM2UCLNC uninterruptible power supply (UPS) Line-Interactive 3 kVA 2700 W 7 AC outlet(s)

Line Interactive, 3kVA, Lithium-ion, Rackmount 2U, 120V, 1x NEMA L5-30R+6x NEMA 5-20R outlets, SmartConnect Port+Network Card, AVR, LCD

Key Features

• 2880VA/2700W line interactive pure sine wave 2U rackmount UPS
• Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
• Lithium-ion battery minimizes the need to replace battery during the life time of UPS
• Cloud-based remote power monitoring via SmartConnect Ethernet Port
• 1-Year Secure Network Management Card subscription included

Description

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2880VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA L5-30 input, 6 NEMA 5-20R and 1 NEMA L5-30R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.

Specifications

Power
Output frequency	50/60 Hz
Output power	2700 W
Input operation voltage (min)	110 V
Input operation voltage (max)	125 V
Output operation voltage (min)	110 V
Output operation voltage (max)	125 V
Surge energy rating	459 J
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	5%
Crest factor	3:1
Output power capacity	3 kVA
Input frequency	50/60 Hz

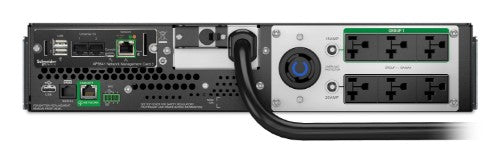

Ports & interfaces
Cable length	96" (2.44 m)
USB port	Yes
Serial interface	Yes
SmartSlot	Yes
AC outlets quantity	7 AC outlet(s)
AC outlet types	NEMA 5-20R, NEMA L5-30R
Power plug	NEMA L5-30P
SmartConnect port	Yes
Performance
Audible alarm modes	Alarm when on battery, Low battery alarm
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1
Response time	6 ms
Noise level	55 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Audible alarm modes	Alarm when on battery, Low battery alarm
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1
Response time	6 ms
Output power	2700 W
Input operation voltage (min)	110 V
Input operation voltage (max)	125 V
Output operation voltage (min)	110 V
Output operation voltage (max)	125 V
Surge energy rating	459 J
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	5%
Noise level	55 dB
Crest factor	3:1
Audible alarm(s)	Yes
Output power capacity	3 kVA
Input frequency	50/60 Hz
Heat dissipation	348 BTU/h
Battery
Battery life (max)	10 year(s)
Battery technology	Lithium-Ion (Li-Ion)
Battery recharge time	2 h
Hot-swap battery	Yes
Replacement battery cartridge	APCRBC174-LI
Number of batteries included	1 pc(s)
Design
International Protection (IP) code	IP20
Rack capacity	2U
Form factor	Rackmount
Product colour	Black
Certification	CSA C22.2 NO. 107.3, FCC Part 15 Class A, NOM, UL 1778, UL 1973
Cable length	96" (2.44 m)
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Non-operating altitude	0 - 300000" (0 - 7620 m)
Technical details
Output frequency	50/60 Hz
Compliance certificates	RoHS
Certificates
Certification	CSA C22.2 NO. 107.3, FCC Part 15 Class A, NOM, UL 1778, UL 1973
Compliance certificates	RoHS
Packaging content
Rack mount kit	Yes
Cables included	USB cable
Batteries included	Yes
Weight & dimensions
Package width	38.6" (980 mm)
Package depth	24.4" (620 mm)
Package height	10" (254 mm)
Weight	75.4 lbs (34.2 kg)
Width	17" (432 mm)
Package weight	94.1 lbs (42.7 kg)
Height	3.39" (86 mm)
Depth	26.9" (683 mm)
Packaging data
Rack mount kit	Yes
Cables included	USB cable
Package width	38.6" (980 mm)
Package depth	24.4" (620 mm)
Package height	10" (254 mm)
Package weight	94.1 lbs (42.7 kg)
