Tripp Lite

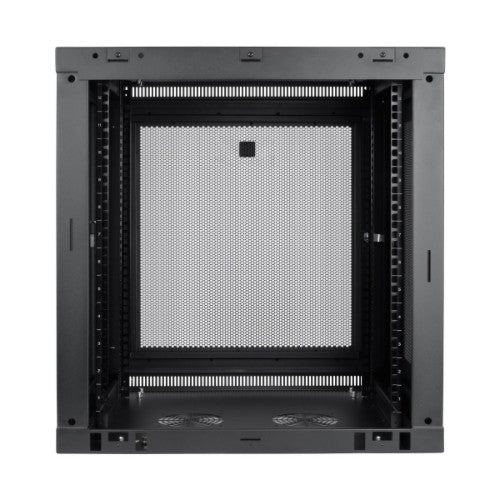

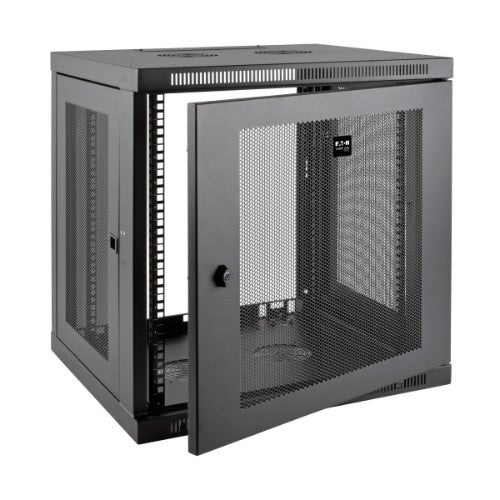

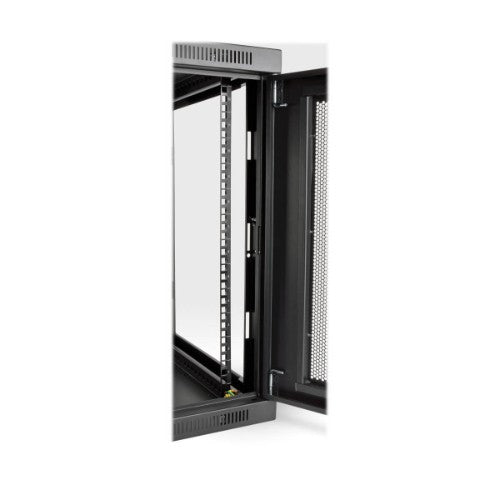

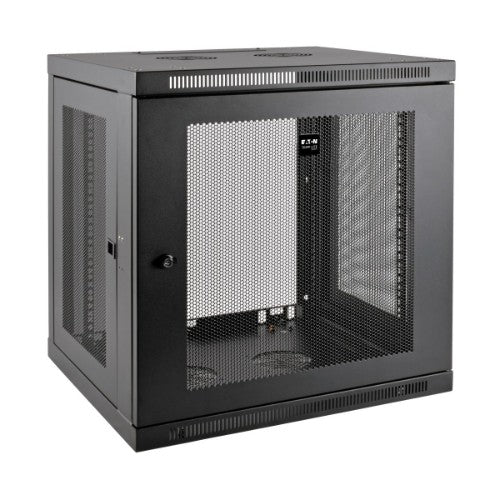

Tripp Lite SRW12UDP rack cabinet 12U Wall mounted rack Black
SKU:
SRW12UDP
Condition: New
$510.43 USD
Pickup currently not available
✔
Factory-Sealed
Sourced from authorized distributors
✔
Manufacturer Warranty
Terms set by the brand
✔
Enterprise Expertise
Business Procurement
Free standard shipping over $2,500
Delivery estimates are based on product availability, destination, fulfillment method, and qualifying order requirements. 30-day returns; 20% restocking fee on non-defective returns. Shipping policy · Return policy
Loading documents...
Need Help Before You Order?
Check compatibility, availability, or volume pricing with an IT procurement specialist.
Enterprise IT Procurement Built for Business
Source servers, networking, storage, workstations, and business technology through established distribution channels with dedicated procurement support.
1,700+
Business Accounts Supported
32,000+
Enterprise Hardware Products Available
Fast, Reliable Procurement Support
Reach out for responsive product availability, part numbers, pricing, and additional hardware needs.
4–8 Hrs
Typical RFQ Response Target
Multi-Vendor
Hardware Sourcing
Keep Your IT Projects Moving
For business hardware purchases and larger deployments, get shipment information, order coordination, and delivery support.
Manufacturer Warranty Coverage
Eligible products include warranty coverage provided by the original manufacturer according to applicable brand and product terms.
Brand Warranty TermsFactory-Sealed HardwareOEM Support Eligibility
A Trusted Source for Enterprise Hardware
Source factory-sealed IT hardware through established technology distribution channels, with support for individual purchases, BOM requests, and larger business requirements.
112+
Technology Brands
32,000+
Hardware Products Available
Key Features
SmartRack 12U Low-Profile Switch-Depth-Plus Wall-Mount Small Rack Enclosure
To ensure your valuable equipment stays secure, the side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely through the cabinet toand keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.
The SRW12UDP comes fully assembled and ready to mount to the wall, or use an optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as such as network switches and patch panels.
Key Features
- Maximum load capacity of 200 lbs (90.7 kgs)
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 12U of 19 in. rack equipment up to 20.5 in. deep
- Mounts to wall or rolls on floor (with optional SRCASTER)
Description
The SRW12UDP SmartRack® 12U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).To ensure your valuable equipment stays secure, the side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely through the cabinet toand keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.
The SRW12UDP comes fully assembled and ready to mount to the wall, or use an optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as such as network switches and patch panels.
Specifications
| Features | |
|---|---|
| Size (imperial) | 19" |
| Key lock | Yes |
| Frame type | Closed |
| Rack capacity | 12U |
| Type | Wall mounted rack |
| Maximum weight capacity | 200 lbs (90.7 kg) |
| Material | Steel |
| Product colour | Black |
| Certification | EIA-310-E RoHS |
| Weight & dimensions | |
| Package depth | 26.6" (674.9 mm) |
| Package width | 28.7" (730.2 mm) |
| Package height | 29.7" (754.9 mm) |
| Package weight | 57.1 lbs (25.9 kg) |
| Width | 23.6" (599.9 mm) |
| Depth | 21.7" (552.4 mm) |
| Height | 25.1" (637 mm) |
| Weight | 57.1 lbs (25.9 kg) |
| Size (imperial) | 19" |
| Maximum weight capacity | 200 lbs (90.7 kg) |
| Packaging content | |
| Wall mounting kit | Yes |
| Manual | Yes |

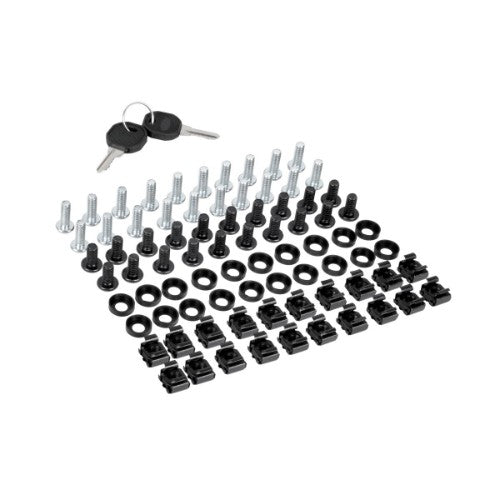

| Mounting kit | Yes |
| Packaging data | |
| Wall mounting kit | Yes |
| Manual | Yes |
| Mounting kit | Yes |
| Package depth | 26.6" (674.9 mm) |
| Package width | 28.7" (730.2 mm) |
| Package height | 29.7" (754.9 mm) |
| Package weight | 57.1 lbs (25.9 kg) |
| Technical details | |
| Package width | 28.7" (730.2 mm) |
| Package height | 29.7" (754.9 mm) |
| Type | Wall mounted rack |
| Size (imperial) | 19" |
| Harmonized System (HS) code | 8517.79.0000 |
| Rack capacity | 12U |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | EIA-310-E RoHS |
| Material | |
| Material | Steel |
| Logistics data | |
| Master (outer) case width | 28.7" (730.2 mm) |
| Master (outer) case length | 26.6" (674.9 mm) |
| Master (outer) case height | 29.7" (754.9 mm) |
| Master (outer) case gross weight | 57.1 lbs (25.9 kg) |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
Product Specs
SmartRack 12U Low-Profile Switch-Depth-Plus Wall-Mount Small Rack Enclosure
To ensure your valuable equipment stays secure, the side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely through the cabinet toand keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.
The SRW12UDP comes fully assembled and ready to mount to the wall, or use an optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as such as network switches and patch panels.
Key Features
- Maximum load capacity of 200 lbs (90.7 kgs)
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 12U of 19 in. rack equipment up to 20.5 in. deep
- Mounts to wall or rolls on floor (with optional SRCASTER)
Description
The SRW12UDP SmartRack® 12U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).To ensure your valuable equipment stays secure, the side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely through the cabinet toand keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.
The SRW12UDP comes fully assembled and ready to mount to the wall, or use an optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as such as network switches and patch panels.
Specifications
| Features | |
|---|---|
| Size (imperial) | 19" |
| Key lock | Yes |
| Frame type | Closed |
| Rack capacity | 12U |
| Type | Wall mounted rack |
| Maximum weight capacity | 200 lbs (90.7 kg) |
| Material | Steel |
| Product colour | Black |
| Certification | EIA-310-E RoHS |
| Weight & dimensions | |
| Package depth | 26.6" (674.9 mm) |
| Package width | 28.7" (730.2 mm) |
| Package height | 29.7" (754.9 mm) |
| Package weight | 57.1 lbs (25.9 kg) |
| Width | 23.6" (599.9 mm) |
| Depth | 21.7" (552.4 mm) |
| Height | 25.1" (637 mm) |
| Weight | 57.1 lbs (25.9 kg) |
| Size (imperial) | 19" |
| Maximum weight capacity | 200 lbs (90.7 kg) |
| Packaging content | |
| Wall mounting kit | Yes |
| Manual | Yes |
| Mounting kit | Yes |
| Packaging data | |
| Wall mounting kit | Yes |
| Manual | Yes |
| Mounting kit | Yes |
| Package depth | 26.6" (674.9 mm) |
| Package width | 28.7" (730.2 mm) |
| Package height | 29.7" (754.9 mm) |
| Package weight | 57.1 lbs (25.9 kg) |
| Technical details | |
| Package width | 28.7" (730.2 mm) |
| Package height | 29.7" (754.9 mm) |
| Type | Wall mounted rack |
| Size (imperial) | 19" |
| Harmonized System (HS) code | 8517.79.0000 |
| Rack capacity | 12U |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | EIA-310-E RoHS |
| Material | |
| Material | Steel |
| Logistics data | |
| Master (outer) case width | 28.7" (730.2 mm) |
| Master (outer) case length | 26.6" (674.9 mm) |
| Master (outer) case height | 29.7" (754.9 mm) |
| Master (outer) case gross weight | 57.1 lbs (25.9 kg) |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
