Tripp Lite

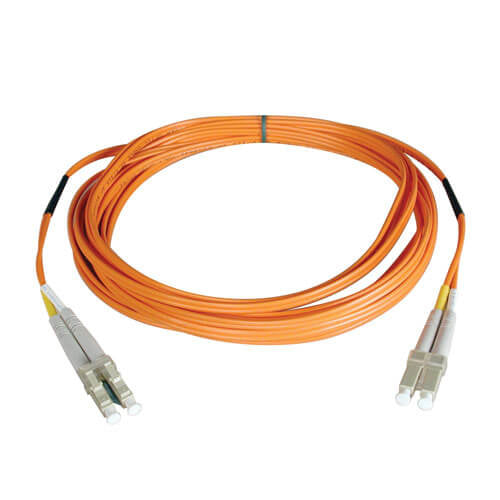

Tripp Lite N520-20M InfiniBand/fibre optic cable 787.4" (20 m) LC Orange
SKU:
N520-20M
Condition: New
$29.85 USD
Pickup currently not available
✔
Factory-Sealed
Sourced from authorized distributors
✔
Manufacturer Warranty
Terms set by the brand
✔
Enterprise Expertise
Business Procurement
Free standard shipping over $2,500
Delivery estimates are based on product availability, destination, fulfillment method, and qualifying order requirements. 30-day returns; 20% restocking fee on non-defective returns. Shipping policy · Return policy
Loading documents...
Need Help Before You Order?
Check compatibility, availability, or volume pricing with an IT procurement specialist.
Enterprise IT Procurement Built for Business
Source servers, networking, storage, workstations, and business technology through established distribution channels with dedicated procurement support.
1,700+
Business Accounts Supported
32,000+
Enterprise Hardware Products Available
Fast, Reliable Procurement Support
Reach out for responsive product availability, part numbers, pricing, and additional hardware needs.
4–8 Hrs
Typical RFQ Response Target
Multi-Vendor
Hardware Sourcing
Keep Your IT Projects Moving
For business hardware purchases and larger deployments, get shipment information, order coordination, and delivery support.
Manufacturer Warranty Coverage
Eligible products include warranty coverage provided by the original manufacturer according to applicable brand and product terms.
Brand Warranty TermsFactory-Sealed HardwareOEM Support Eligibility
A Trusted Source for Enterprise Hardware
Source factory-sealed IT hardware through established technology distribution channels, with support for individual purchases, BOM requests, and larger business requirements.
112+
Technology Brands
32,000+
Hardware Products Available
Key Features
Duplex Multimode 50/125 Fiber Patch Cable (LC/LC), 20M (65 ft.)
Length - 20M
Use on fiber and fibre channel installations
LC male to LC male connectors
Higher bandwidth optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications
Number of fibers: 2
Fiber type: all glass graded index
Core diameter: Two 50+/-3 microns
CLAD diameter: 125+/-2 microns
Primary coating diameter: 245+/-15 microns
Primary coating material: acrylate
Secondary coating diameter: 900+/-50 microns
Secondary coating material: PVC
Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Proof test level: 100,000 PSI
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
Key Features
- Perfect for use with Fibre Channel Controller Cards and Switches
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth, optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- Premium PVC multimode patch cables
Description
Constructed with 50/125 micron cableLength - 20M
Use on fiber and fibre channel installations
LC male to LC male connectors
Higher bandwidth optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications
Number of fibers: 2
Fiber type: all glass graded index
Core diameter: Two 50+/-3 microns
CLAD diameter: 125+/-2 microns
Primary coating diameter: 245+/-15 microns
Primary coating material: acrylate
Secondary coating diameter: 900+/-50 microns
Secondary coating material: PVC
Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Proof test level: 100,000 PSI
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
Specifications
| Features | |
|---|---|
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 787.4" (20 m) |
| Full duplex | Yes |
| Product colour | Orange |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Country of origin | China |
| Harmonized System (HS) code | 8544.70.0000 |
| Weight & dimensions | |
| Weight | 4.94 oz (140 g) |
| Cable length | 787.4" (20 m) |
| Package width | 6" (152.4 mm) |
| Package depth | 6.6" (167.6 mm) |
| Package height | 0.5" (12.7 mm) |
| Package weight | 4.94 oz (140 g) |
| Packaging data | |
| Package width | 6" (152.4 mm) |
| Package depth | 6.6" (167.6 mm) |
| Package height | 0.5" (12.7 mm) |
| Package weight | 4.94 oz (140 g) |
| Technical details | |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 787.4" (20 m) |
| Full duplex | Yes |
| Master (outer) case GTIN (EAN/UPC) | 10037332123616 |
| Other features | |
| Core / cladding diameter | 50/125 µm |
| Logistics data | |
| Master (outer) case width | 7.2" (182.9 mm) |
| Master (outer) case length | 13.7" (348 mm) |
| Master (outer) case height | 5.5" (139.7 mm) |
| Master (outer) case gross weight | 3.51 lbs (1.59 kg) |
| Products per master (outer) case | 10 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 8544.70.0000 |
| Master (outer) case GTIN (EAN/UPC) | 10037332123616 |
Product Specs
Duplex Multimode 50/125 Fiber Patch Cable (LC/LC), 20M (65 ft.)
Length - 20M
Use on fiber and fibre channel installations
LC male to LC male connectors
Higher bandwidth optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications
Number of fibers: 2
Fiber type: all glass graded index
Core diameter: Two 50+/-3 microns
CLAD diameter: 125+/-2 microns
Primary coating diameter: 245+/-15 microns
Primary coating material: acrylate
Secondary coating diameter: 900+/-50 microns
Secondary coating material: PVC
Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Proof test level: 100,000 PSI
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
Key Features
- Perfect for use with Fibre Channel Controller Cards and Switches
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth, optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- Premium PVC multimode patch cables
Description
Constructed with 50/125 micron cableLength - 20M
Use on fiber and fibre channel installations
LC male to LC male connectors
Higher bandwidth optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications
Number of fibers: 2
Fiber type: all glass graded index
Core diameter: Two 50+/-3 microns
CLAD diameter: 125+/-2 microns
Primary coating diameter: 245+/-15 microns
Primary coating material: acrylate
Secondary coating diameter: 900+/-50 microns
Secondary coating material: PVC
Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Proof test level: 100,000 PSI
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
Specifications
| Features | |
|---|---|
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 787.4" (20 m) |
| Full duplex | Yes |
| Product colour | Orange |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Country of origin | China |
| Harmonized System (HS) code | 8544.70.0000 |
| Weight & dimensions | |
| Weight | 4.94 oz (140 g) |
| Cable length | 787.4" (20 m) |
| Package width | 6" (152.4 mm) |
| Package depth | 6.6" (167.6 mm) |
| Package height | 0.5" (12.7 mm) |
| Package weight | 4.94 oz (140 g) |
| Packaging data | |
| Package width | 6" (152.4 mm) |
| Package depth | 6.6" (167.6 mm) |
| Package height | 0.5" (12.7 mm) |
| Package weight | 4.94 oz (140 g) |
| Technical details | |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 787.4" (20 m) |
| Full duplex | Yes |
| Master (outer) case GTIN (EAN/UPC) | 10037332123616 |
| Other features | |
| Core / cladding diameter | 50/125 µm |
| Logistics data | |
| Master (outer) case width | 7.2" (182.9 mm) |
| Master (outer) case length | 13.7" (348 mm) |
| Master (outer) case height | 5.5" (139.7 mm) |
| Master (outer) case gross weight | 3.51 lbs (1.59 kg) |
| Products per master (outer) case | 10 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 8544.70.0000 |
| Master (outer) case GTIN (EAN/UPC) | 10037332123616 |
